Part Location Diagram of 089041001702 Ryobi LOCK PIN ASSEMBLY
See part D-12 in the diagram

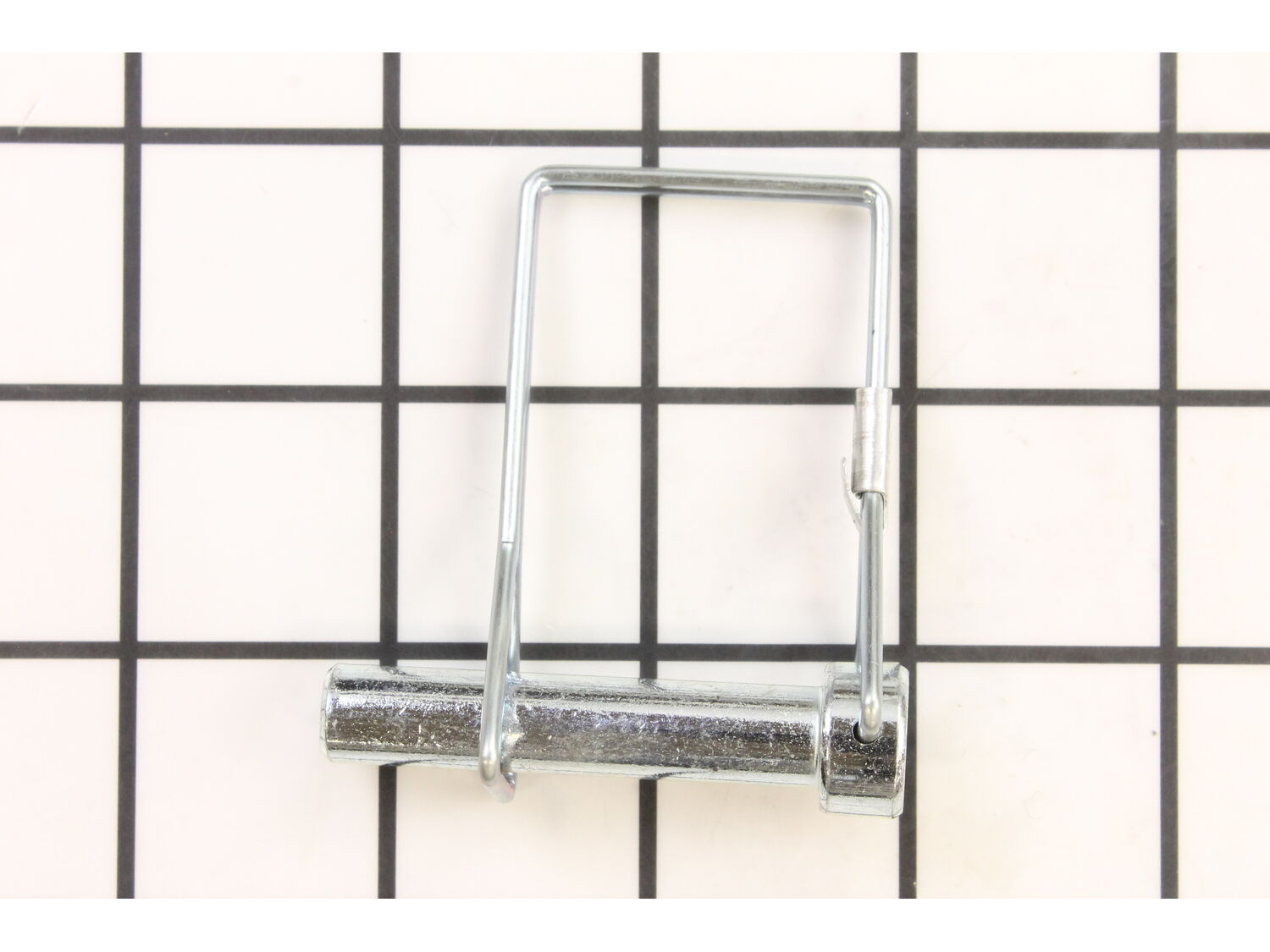

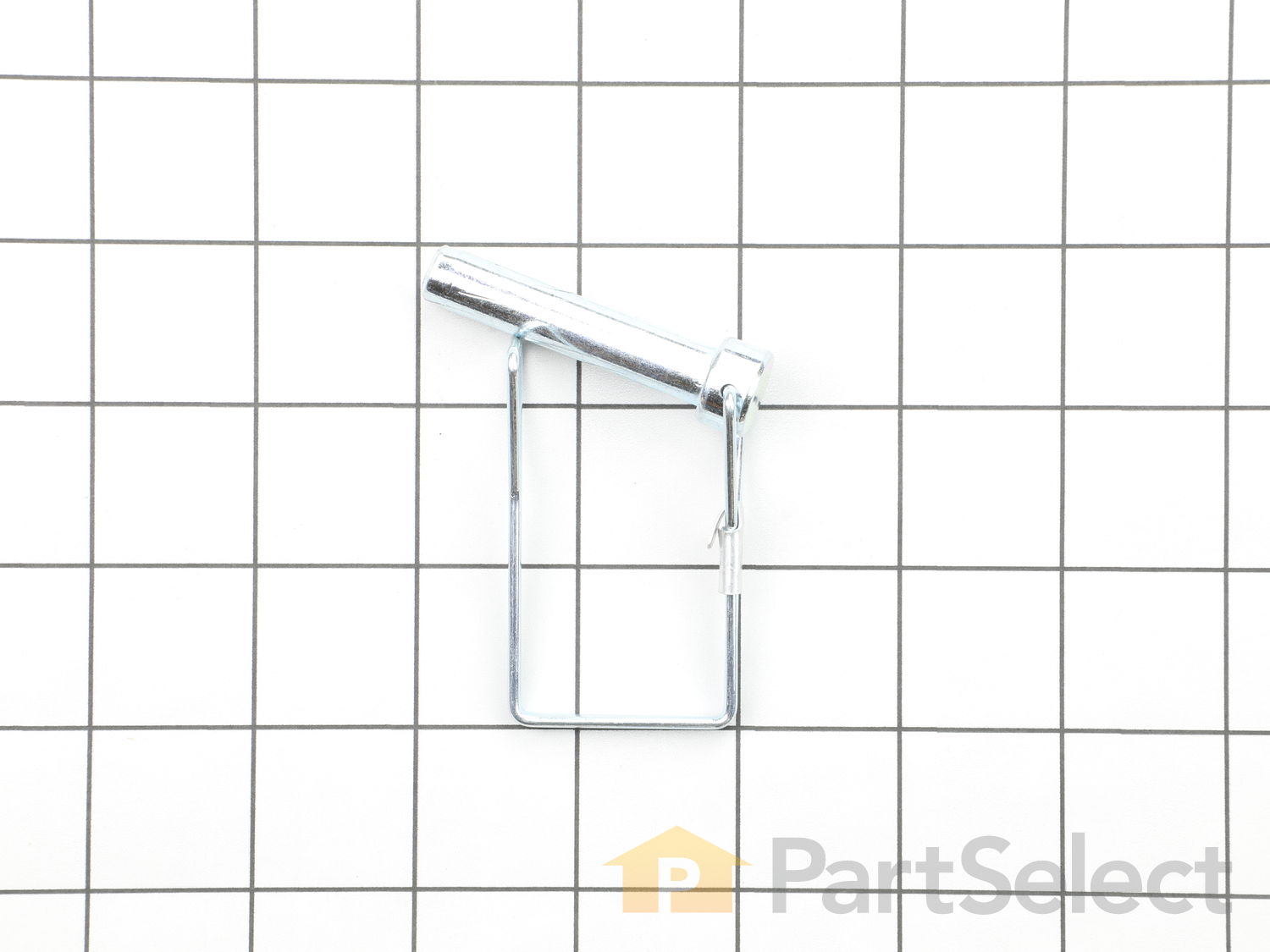

( Grid squares measure 1x1 inch )

LOCK PIN ASSEMBLY 089041001702

Manufactured by:
Ryobi
ERP Number:
ERP18687585
Part Number:
089041001702
Original Equipment Manufacturer ?
$6.16
Special Order
Minimum Quantity of 2 required

Does this part fit my model?

Need help finding your model number?

Product Description

?

This is a genuine item that is supplied by the original equipment manufacturer for use with Ridgid tile saws. It is an identical replacement for a missing or damaged lock pin assembly that was originally installed on a new unit, please make sure to refer to the appropriate diagrams of your model for the correct location and application of this component. Keep in mind this high-quality item is made of durable metal and is sold individually.

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Ridgid
This part works with the following products:
  • Saw
  • Tile Saw
Part# 089041001702 replaces these:
089041001702, 89041001702,

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Model Cross Reference

This part works with the following models:
ERP Number: ERP18687585
Manufacturer Part Number: 089041001702
Brand Model Number Description
Ridgid R4040 Tile Saw - Tile Saw
Ridgid R4040S Tile Saw - Tile Saw
Ridgid R4041 Saw - Ridgid R4041 Parts
Ridgid R4041S Saw - Ridgid R4041s Parts
