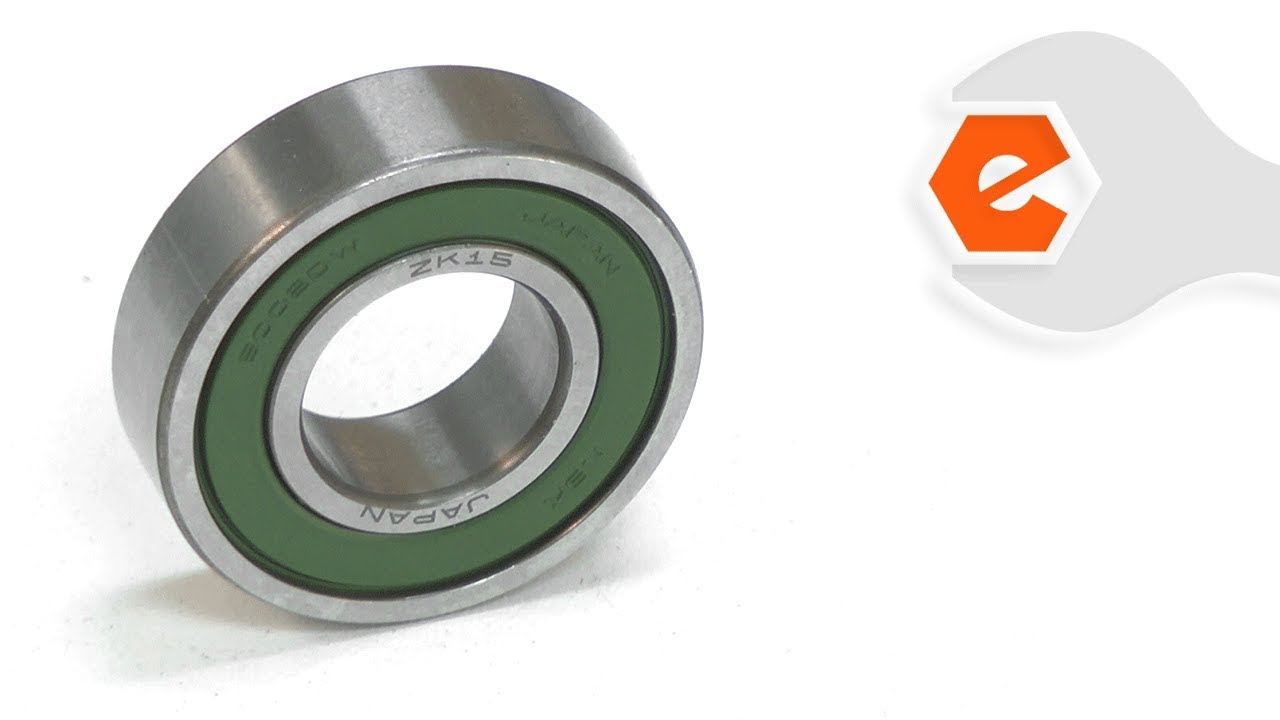

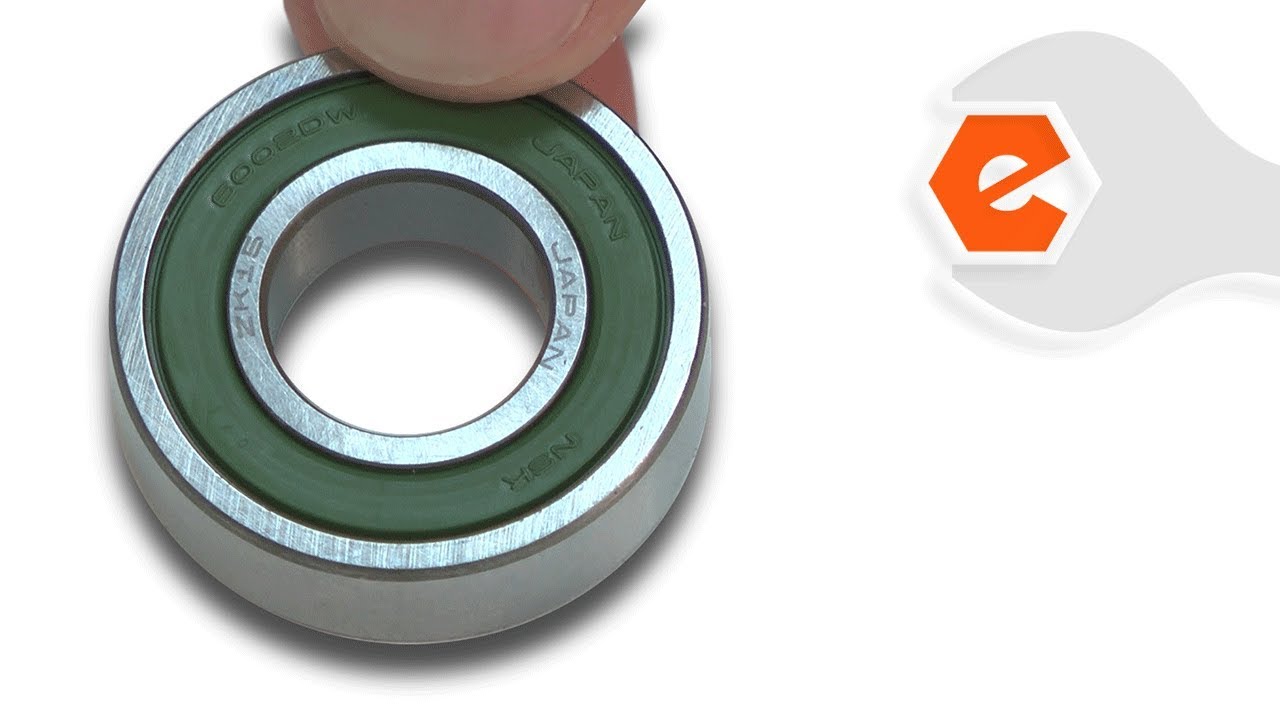

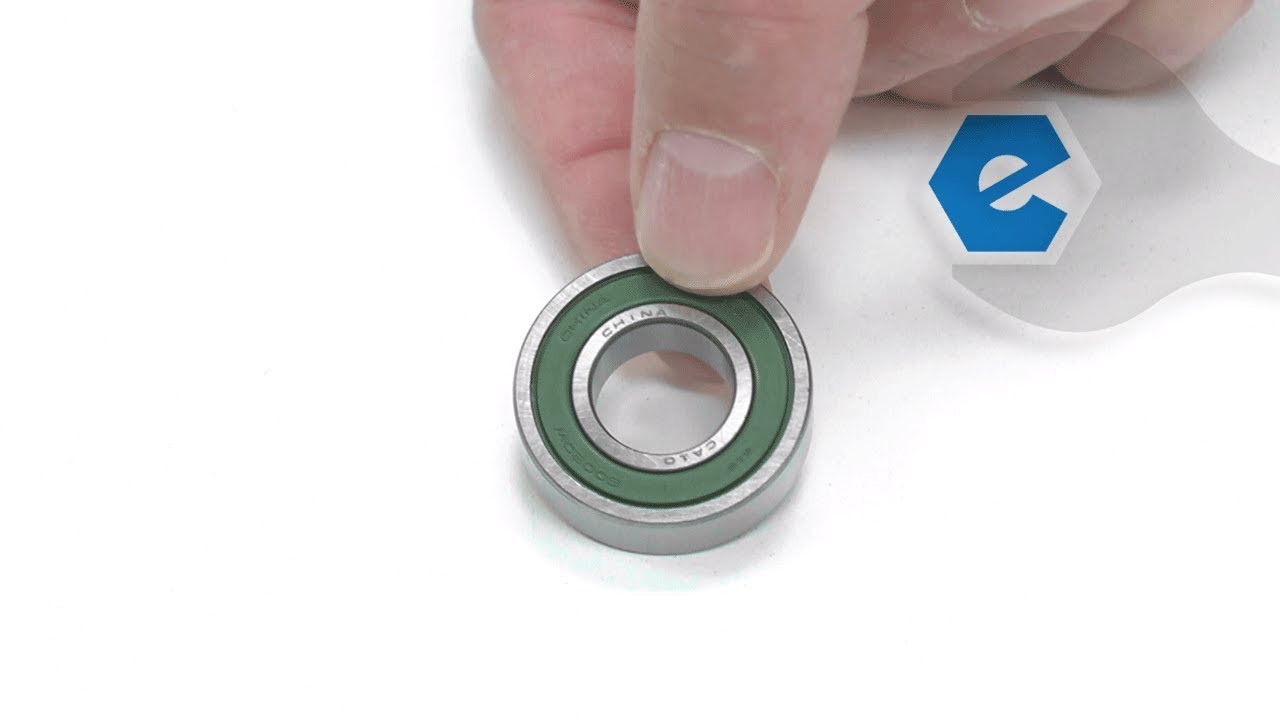

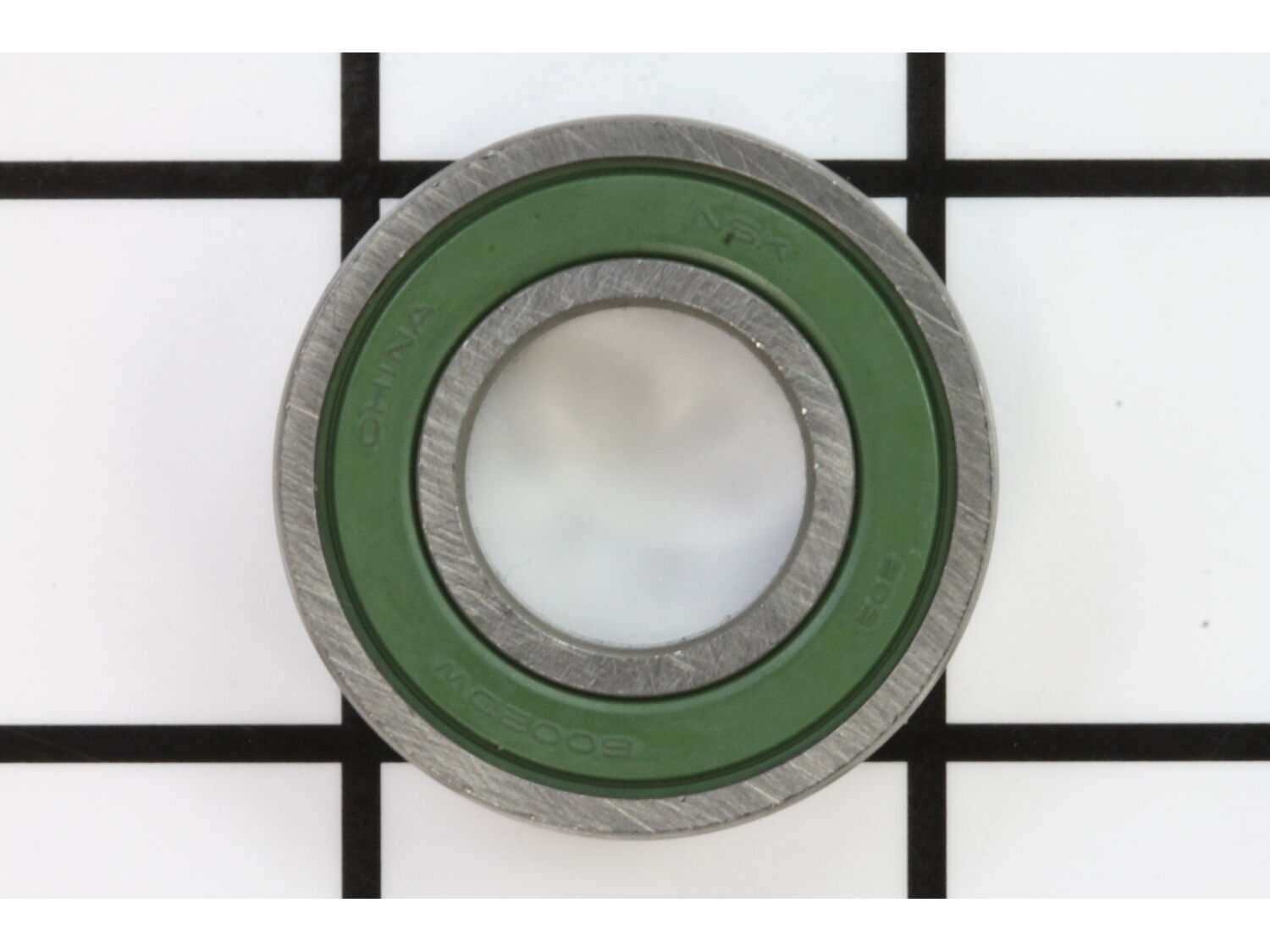

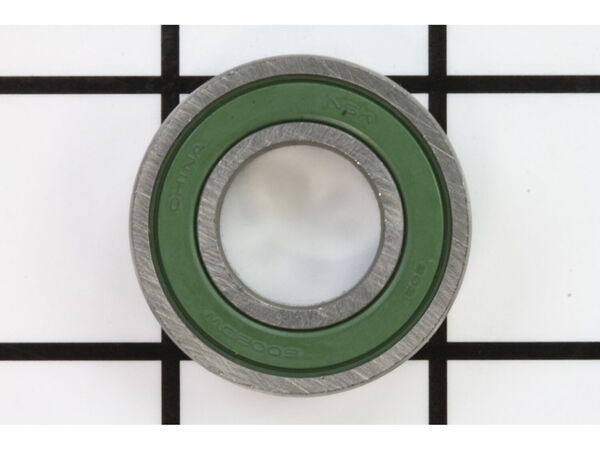

This Ball Bearing is sealed on both sides. This is a genuine Makita replacement part that is sold individually. • Ball bearings minimize friction between 2 parts in your tool that would otherwise spin and rub against each other. The balls or rollers take the load and spin, distributing the weight evenly while the minimal contact area of the balls reduce friction. This reduces wear on the tool and allows it to run smoothly. • Bearings experience constant wear when the tool is in operation from pressure, heat, vibration and friction. Because of this, many Bearings need periodic maintenance or replacement.
Removed screws to split housing, removed pad first. Removed armature then bearings. Reverse process to assemble. Replaced switch as well. Left brushes as they were fine. Simple. Less than an hour. Went just fine. Works like new.
1. Removed old sanding pad to expose the bearing.
2. Removed old bearing and brake ring.
3. Installed new bearing and brake ring.
4. Installed new adhesive back sanding pad, replacing the the hook and loop pad.
5. Attached sanding disc and made sawdust.
1 Removed sanding pad
2 Removed phillips screw holding bearing assembly to shaft
3 Used socket and hammer to drive out seized bearing
4 Pressed in new bearing
5 Reassembled and tested
6 Replaced dust bag
Removed the sanding pad assembly and casing.
Removed the bearing wheel and thin washer from the motor shaft.
Pressed the old bearing out of the wheel.
Tapped and pressed the new bearing in the wheel.
Placed the new thin washer on the shaft.
Reinstalled the wheel with the new bearing on the motor shaft.
... Read moreReassembled the casing and sanding pad
After first trying the bushings to no avail I replaced the bearing which I failed to notice was seized up. The new bearing did the trick. Runs like a new sander. The screws stripped during disassembly so I replaced them and I threw in a new brake whether needed or not since I\'ve used this sander heavily for the past 18 - 19 years.
Remove hook loop pad using Phillips screwdriver.
With Phillips screwdriver remove center bearing and covers.
Replace and re-assemble reverse order above.
Having the instructions that came with the sander helped a lot.
Just disassembled the sander taking out everything in order and laying them out the same way on the workbench, then punched out the old bearing and replaced it with the new one. then just put everything back together the way it came out .
Like Magic it worked. Do
... Read moretake the time to blow it all out before assembly.
Don`t be afraid, its cheaper than buying a new one.
