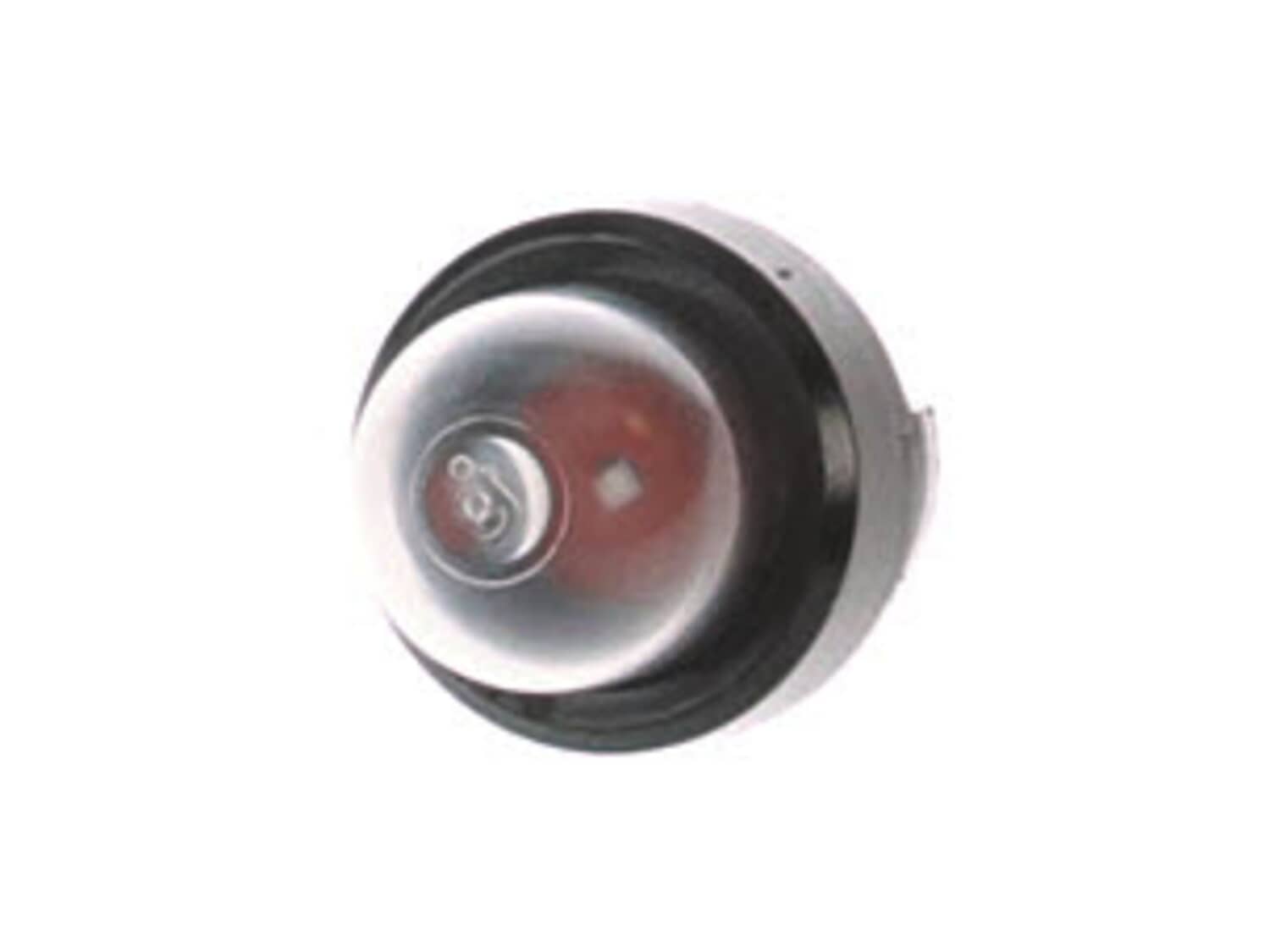

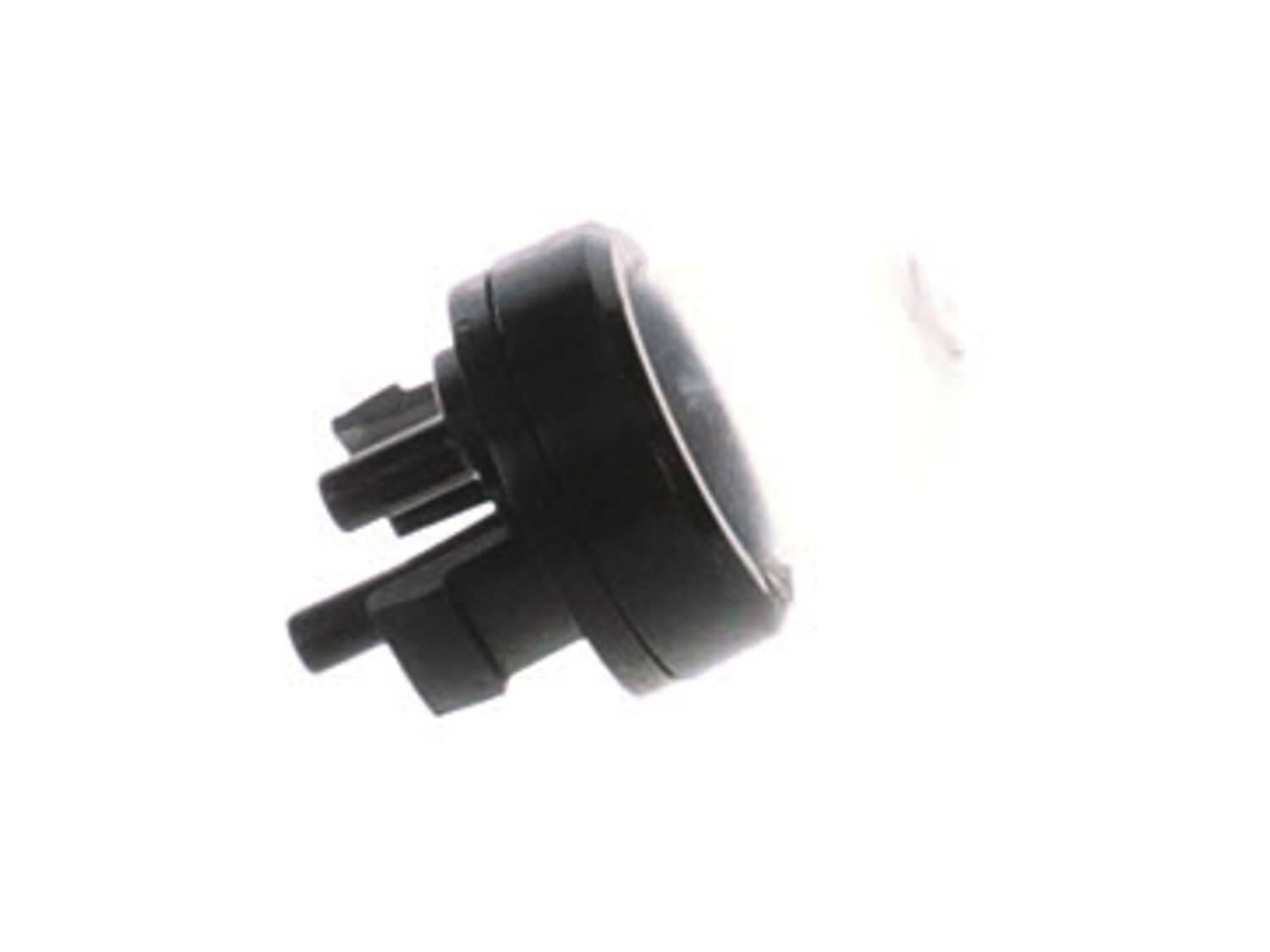

This is a genuine OEM replacement part designed for use with Makita power tools. It is made out of rubber and it is sold individually. By pressing on the purge bulb, it will force fuel into the fuel line from the fuel tank into the carburetor. Once the carburetor is full of fuel, the excess fuel will be purged back into the tank in the fuel return line. At some time the primer will lose its elasticity or crack and need to be replaced.
Purchased this Robin branded (Subaru Commercial) trimmer in 1994 and this was the first time I had performed any maintenance on the trimmer. The maintenance was needed because the fuel tank started leaking gas from around the tank hose. Upon taking the engine cover off (removed 4 screws), I realized the hoses were no longer pliable and ha
... Read morerd become hardened. The air filter had disintegrated and half of it was gone. The parts were very simple to replace. Upon replacement, I primed the engine and it started on the second pull, as it has for the past 22 years.
I was so glad to have found this website. The parts were very reasonable and the catalog was very easy to search. It helped that I could see the parts, and find the recommended parts visually. The previous comments were great. Thank you!
Work in a well-ventilated area if there is any gas in tank or bulb.
Recommend wrapping unit with a rag to absorb any minor spillage.
Removed casing around pull cord using medium Philips screwdriver. The pull cord mechanism comes off with the casing.
Note position of fuel lines. You can gently pull the tight one out from
... Read morethe tank to get some slack.
Remove two fuel lines from the bulb.
Remove bulb from casing by twisting or squeezing on-bulb clips to pull it off.
Attach new bulb to casing by pressing it into mounting hole.
Reattach fuel lines.
Gently reposition casing into its original position. You may need to tug on pull cord to get it to realign.
Test bulb before tightening screws by pressing once or twice. It should fill with no leaks.
Tighten casing screws.
Test for leaks
Get that woolly lawn back in shape!
Read less
Did you find this story helpful?
Thank you for voting!
Primer bubble dry rotted / trimmer head just wore out
Lucky I had some spare fuel line lying around. 5 screws and the cover was off . Primer just snaps into place.
The trimmer head came with more than enough parts and was easy swap. not sure why I waited so long to replace? Machine is 16 yrs old and wore the plastic \"bump\" head until the spring came through. The trimmer head include
... Read mores installation instructions.
Removed old primer bulb.
Installed new bulb.
Put in new air cleaner filter.
Reassembled cover.
Started Trimmer and it Worked Great!!!!
Thanks ereplacement parts!!
Removed old parts and cleaned up the fuel tank and the carburetor. Installed the new fuel lines, fuel filter, metering diaphragm, pump bulb, new fuel tank cap, and installed a new air filter. Reassembled and runs like new again.
Use a small screwdriver to press on the primer side tabs to remove it
Remove the fuel lines from the old one
Install the fuel lines to the new one
Press it back into the housing
Just remove the old parts in the trimmer, small tune up, gas and ready. Your parts were the key to finish my repair. My problem was to find the correct dealer supply. Thanks
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10140729
Manufacturer Part Number: 168398-2
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
