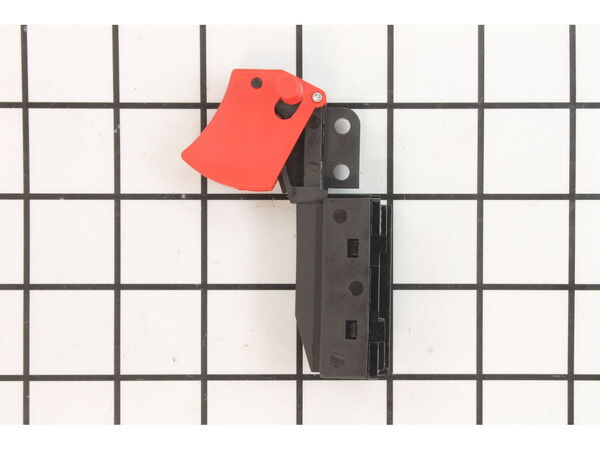

This Trigger switch has 4 terminals and a locking mechanism on the trigger. This authentic Porter Cable replacement part is sold individually. rnrnSwitches are commonly replaced parts in power tools, handling all on/off and variable speed operations. They also have a role in electric breaking; they can momentarily reverse electrical polarity. Because switches use mechanical internals, they will degrade and wear out over time, eventually needing replacement. Some common signs of a broken or failing switch are: • The tool has stopped functioning - it refuses to start. • The tool operates intermittently, requiring multiple tries to turn on, until eventually it won't start at all. • The variable speed function and electric braking aren't working properly.rnrn3.5" L 7/8" Depth 3/4" W
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Bandsaw switch replacement
My band saw is older and the part available is not an exact fit but I was able to adjust the wiring within the saw and its now working perfectly. There was some difficulty in timely shipment of the part but one phone call to the company and the problem was fixed! Very courteous service person handled my issue professionally and to my complete satisfaction. Good Job!
Guest - October 30, 2019
Verified Purchase
★★★★★
★★★★★
I would use this company again
Fit in tool. Mounted exactly like original trigger pull Stronger tahan original may last longer.
Guest - August 26, 2020
Verified Purchase
★★★★★
★★★★★
Worked as it should.
Quick delivery , worked great.
Guest - October 28, 2022
Verified Purchase
★★★★★
★★★★★
Worked as per description. Made the tool go.
Easy to find. Easy to order. Order arrived in a timely manner.
Bruce - May 17, 2019
Verified Purchase
★★★★★
★★★★★
Worked just as advertised.
The only reason I didn't give 5 stars was because I don't believe it doing that, but as I said, it worked just as advertised and was shipped quickly and efficiently and with as little pain as is imaginable.
David - September 25, 2019
Verified Purchase
★★★★★
★★★★★
was not the correct part
part was in perfect condition but it was not a match for my older Rockwell # 226 door planer. wish I could find the correct switch for it but it looks like it is a discontinued item, very sad
Guest - May 4, 2019
Verified Purchase
★★★★★
★★★★★
Well,
The exact switch I needed for my router was not available so they sent a close part for a skill router. I had to modify the handle in order for the switch to fit but after some work with my Dremel tool I managed to get it in place once I got it mounted back on the tool worked great. shipping was easy and I got the part in just a few days
Gerald - February 1, 2023
Verified Purchase
★★★★★
★★★★★
The switch was fine except it didnt come with the screws needed to install it. Very disappointed
The switch was fine except it didnt come with the screws needed to install it. Very disappointed
Guest - October 17, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed four screws that held \"D\" handle cover.
2. Unscrewed switch assembly from \"D\" handle.
3. Removed wires from switch.
4. Tried to place same wires from broken switch to the new switch. At first, I had the wires to the new switch in the same basic position as the old wires and switch. When turned on, t
... Read morehe circuit breaker snapped off.
5. I looked at the old switch and noticed that the wire positions were not what I thought. I then paid attention to the numbers \"1\" and \"2\". The switch is a double pole switch so the wires had to be inline correctly.
5. A couple of wires were short so had to improvise to replace the wires. The awl was used to spread the contacts to release them from the original wires to use the contacts again on the new wires.
6. With the wires in the right position, I did a quick test before putting everything finally together. It worked and worked fine when fully assembled.
7. This is a favorite router and it was great to have it run correctly again.
This switch was installed on a mud mixer drill. I removed the handle pieces from the drill and swapped out the switches, and then replaced the handle. No issues so far.
Remove handle, remove switch
Check new switch, looks perfect
Use multi meter for proper connections, new switch was different.
Reassembled switch, then handle.
Tested it, perfect. Done
Did you find this story helpful?
Thank you for voting!
The Rockwell 4485 Type 1 switch was froze up for several years could not find a replacement switch
The Rockwell 1/2 sheet 4485 Type 1 sander switch was froze up for years. No replacement was availible I found this similar looking mount (Two Screw Holes) that matched the The Rockwell 4485 Type 1 switch was froze up for years. Please meter the new switch to make sure you do not bypass the switch instead of connecting to the motor armatu
... Read morere. I had searched the internet several times before finding this Porter Cable retro switch. It did the trick for me!!
Removed casing.
Removed wires from old switch.
Had to look at corresponding wire connections on old switch in order to hook up new switch, because new switch did not match exactly as far as where connections were located.
Installed new switch....had several trial and error attempts.
Reattached casing/covers.
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP18993335
Manufacturer Part Number: N224532
