worked as expected
fast shipping part fit as should great company to deal with,I would order again from them
Guest - May 2, 2019
Verified Purchase
★★★★★
★★★★★
Get the metal hubs also.
Replaced both adaptors and this, worked great
Guest - August 5, 2019
Verified Purchase
★★★★★
★★★★★
Great
Works great.
Mary - October 4, 2019
Verified Purchase
★★★★★
★★★★★
Nice to be able to find the correct part
Fast shipping and the part fit perfectly. My drum sander is back in operation.
Guest - November 5, 2019
Verified Purchase
★★★★★
★★★★★
16/32 Drum Sander
Order a few parts, for my 16/32 perfomax drum sander. The parts came within a few days. Parts are much better than the original . This will definitely be my go to place for parts.
TJ
Terry - June 18, 2020
Verified Purchase
★★★★★
★★★★★
Prompt delivery to New Zealand
In a COVID compromised world the shipment process, order through tracking and delivery was outstanding.
Iglobal - February 16, 2021
Verified Purchase
★★★★★
★★★★★
Great part
Part was exactly what I ordered and a perfect replacement.
Guest - August 3, 2021
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
The thing that really helped was building an carriage cradle to hold the motor and another one for the drum & housing, to keep them positioned in the correct plane. And that facilitated the removal of the bolts holding them all together without them crashing apart as the bolts came loose.
This technique was especially helpfu
... Read morel when reinstalling the unit after the repair was done to install the now repaired shaft coupler and spider.
Read less
Did you find this story helpful?
Thank you for voting!
Couplers had loosened to the point where the spider was torn to shreds
Loosened the 4 motor mounting bolts with a socket set. Removed both couplers with allen keys. Replaced sanding drum side with the new coupler and then motor side. Fit spider in the sanding drum side coupler and remounted motor back into place matching both couplers to each other. Closed any gaps between couplers and tightened with allen k
... Read moreeys. Good as new!
Read less
Did you find this story helpful?
Thank you for voting!
The threads on the original motor mount were worn out, could not adjust height of sander
1. Lowered the drum to rest on two pieces of 2x4 lumber.
2. Removed the bolts that attach the drum carriage to the motor slide.
3. Pulled the drum carriage away from the motor slide to separate the two halves of the drum shaft coupling.
4. Loosened the set screws in the broken half of the drum shaft coupling and removed
... Read morethe coupling and the spider.
5. Installed a new half of the drum shaft coupling and tightened the set screws.
6. Installed the spider between the two halves of the drum shaft coupling and pushed the drum carriage back into contact with the motor slide.
7. Installed and tightened the bolts connecting the drum carriage to the motor slide.
8. Followed the instructions in the owners manual to reset the level of the drum in relation to the feed belt.
Read less
Did you find this story helpful?
Thank you for voting!
Jet 22-44 Plus made a clunk at start and rattle during operation. Broken drive couplings and spider.
Loren from NAPA, California
0 of 1 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Wrench (Adjustable), Wrench set
WD-40 on all bolts and set screws.
Loosened set screws on couplings.
Elevated drum head with crank for better bottom motor mount screws.
Put boards under motor for support
Remove motor screws and remove motor
Pry off couplings and keys
Clean up drum an motor shafts with emery cloth
Replace coupli
... Read morengs and insert spider in drum couplings
Reattach motor, aligning the couplings and tighten bolts
Check couplings position and tighten set screws.
Now it works silently
The parts were used on a Supermax 16-32. There are four bolts on the drum side to the frame that will need to be removed. The couplings have two alan set screw\'s that will need to be removed. The couplings slide off easy / some have said they had to use a puller (I did not). The replacement of these parts also solved the clicking noise t
... Read morehat I had since the first day of getting my \"NEW\" Supermax 16-32. I would not recommend replacing the spider without the couplings (2). Careful examination will show that they have damage and cause the new spider coupling to go bad. Total time was less than 15 minutes.
1. Remove the extension table.
2. Remove the drive belt and the motor assembly.
3. Remove the entire drum head and the motor assembly from the stand.
4. Break the drum assembly and the motor apart.
5. Insert the new spider cushion, the motor, and the drum assembly back together.
6. Replace the drive belt asse
... Read morembly and the extension table.
7. Reset the parallel position of the drum relative to the table.
Not any really hard steps, just a lot of them. They also have to be done in this order. You can\'t get the drive belt off until you remove the extension table, and you can\'t get the motor and drum sander off until you remove the drive belt. There is not a way I know to get the spider in without separating the motor from the drum.
Unbolt motor from drum,put in new spider, attach motor to drum. VERY IMPORTANT, must have good grip / support on motor. I thought bolt was still in motor housing, I sneezed,dropped motor on floor, and jammed shaft. Now have to have motor rebuilt or replaced. $500.00 accident.
Did you find this story helpful?
Thank you for voting!
Spider gear cracked........16-32 Performax sander is at least 15 years old
4 bolts removed to dismount both ends of the \"transmission\" and removed motor as well
as sanding drum....spider gear sits between them. Replaced gear and recalibrated sanding
head for level sanding.
Spider gear a perfect fit....
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
✖
Stock Status
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

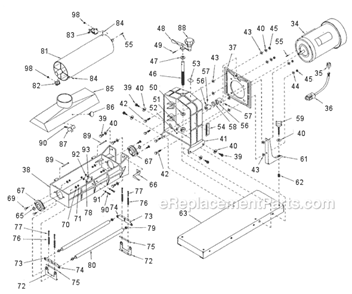

_WW_3.gif "Part Location Diagram of CM9-50-2209 Jet SPIDER")
