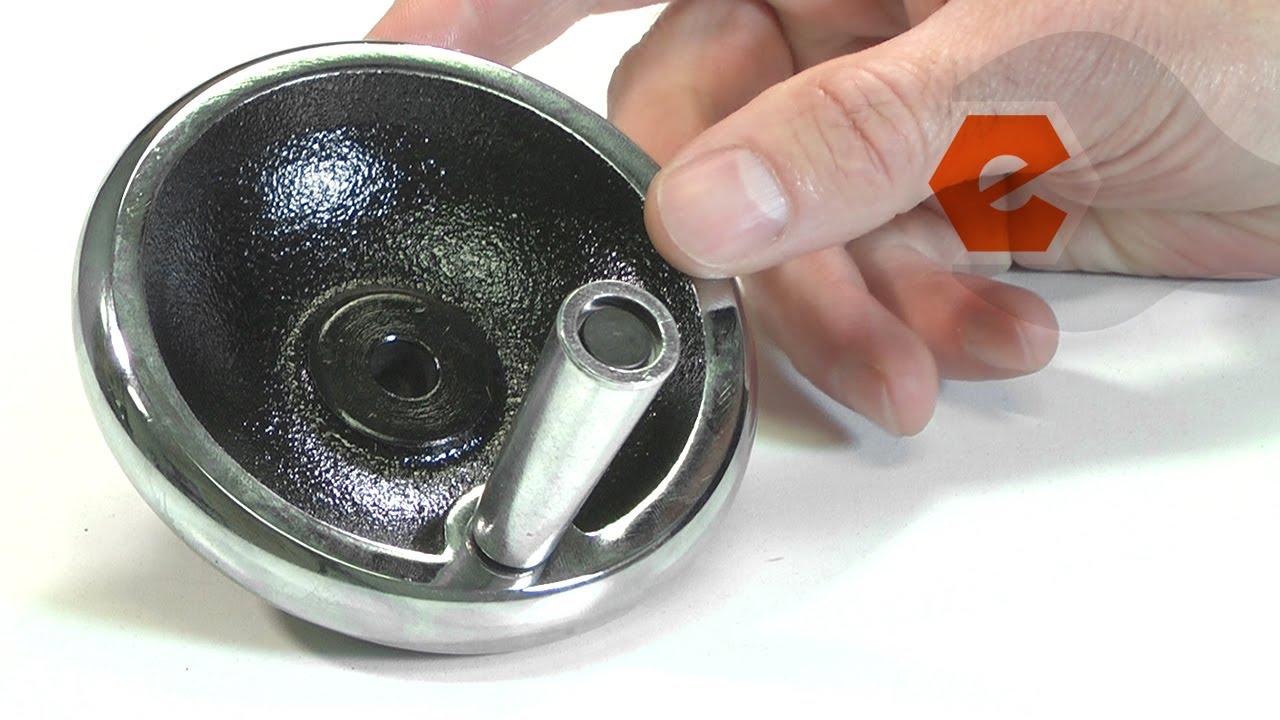

Just put it on, and tighten the allen set screw. You may need to reuse your old allen screw, or purchase a new set screw, because the new hand wheel doesn\'t come with a set screw.
Did you find this story helpful?
Thank you for voting!
Unit was tipped over causing damage
Daniel from Taylor, Michigan
1 personfound this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
More than 2 hours
Tools:
Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Removed all a of the damaged parts. And the rest of the non damaged parts that needed to be removed. Removed the lock knob at the end of the adjusting screw. Remove the lock knob under the table. I was then able to remove the rest of the broken or bent parts. I placed the roll pine in the adjusting screw. Then fed the adjusting screw into
... Read more the table, until I could fit the adjusting nut in the ball crank. I then threaded the screw until I could install the back lock knob. Installed the brass washer, bushing, bushing set screw, brass washer, handwheel and secured the handwheel to the screw with the set screw. Then screwed in the lock knob under the table.
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

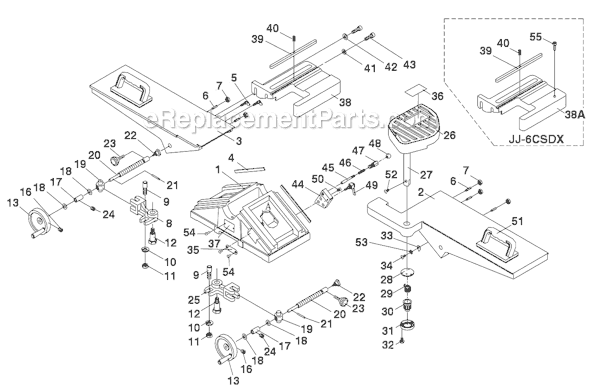

_WW_3.gif "Part Location Diagram of JT9-JJ6CSX-413 Jet HANDWHEEL ASSEMBLY")
