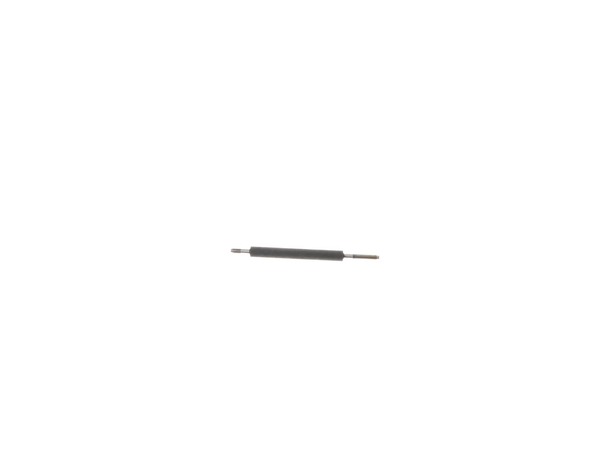

This is a genuine DeWalt part that is OEM sourced to ensure a high level of quality. The rear roller is intended to be used with 13" planers. This item attaches to the drive chain and sprocket and is used to guide material out of the back of the planer. This item is available as an individual replacement part.
1- Disconnect the power
2- Remove both side covers and both side shields
3- Remove the roller gears and chains from both ends.
4- Slide blocks in and lower the planer down to just about to tough the blocks.
5- Remove the retainer clips at each end, then slowly raise the planer until you can remove the roller.
... Read more>6- Keep the bus hinging in place on the original in order to see how to assemble the new assemblies.
7- Set the new roller and bushings in place on top of the wood blocks.
8- Start to lower the planer head and help guide the springs back into the pockets above the bushings. Continue to lower the head until just short of fully seated.
9- Tighten the screws to secure the retaining clips at each end. Once snug, slide the wood blocks out. Follow the reverse of steps 1-3 to complete the repair.
Read less
Did you find this story helpful?
Thank you for voting!
rollers wore out after 13 years. rubber hardened, and wouldn\'t feed correctly
Remove side casings.
Remove chain guards.
Remove both sprockets and chain all at once.
Remove tension clips.
Rollers now will drop out.
Take felt washers and bushings off of old and install on new rollers.
Install doing reverse of above.
(These are the main steps, by memory a week later. C
... Read moreommon sense will tell you if I left anything out by accident)
Flipped the planer upside down. Took off all cover plates exposing the chain drives. Removed sprokers and chains. Removed the two side plates. Removed the four screws holding the bushing plate and bushings. Removed outfeed roller. Took out the springs to inspect. Pulled off the bushings on each end of the roller. Took off the wash
... Read moreers on each end and inspected for wear. Put washers and new bushings on new roller. Installed springs and roller into cradle.
I replaced all the phillip head screws with button head allen screws to make it easier to replace if needed next time. Factory screws are phillip head and will strip the head if not careful. Replaced the side shields, sprockets and chains, covers, and fired her up. Ran like new. Turned planer right side up and tested with a piece of wood.. Worked like new.
Read less
Did you find this story helpful?
Thank you for voting!
Rear roller was bent causing the bushing to seize.
1) Raise tool to max height then turn unit upside down
2) Remove the gear covers from both sides of the tool
3) Remove the safety Shields from both sides of the tool
4) Carefully remove the roller mounts and lift out roller
5) Slide off old bushings, and discard
6) Slide off plastic spacers and slide onto new
... Read more roller
7) Slide on new bushings to roller snugly against plastic spacers
8) Reassemble in reverse order
9) Take your time, be patient, and good luck!
Remove side covers expose gears and shaft remove shaft and housing install new roller install gear from broken shaft to new shaft put housing back in place donGÇÖt forget spring on top of housing Put chain back on gears and lube chain and shaft reinstall covers
Did you find this story helpful?
Thank you for voting!
