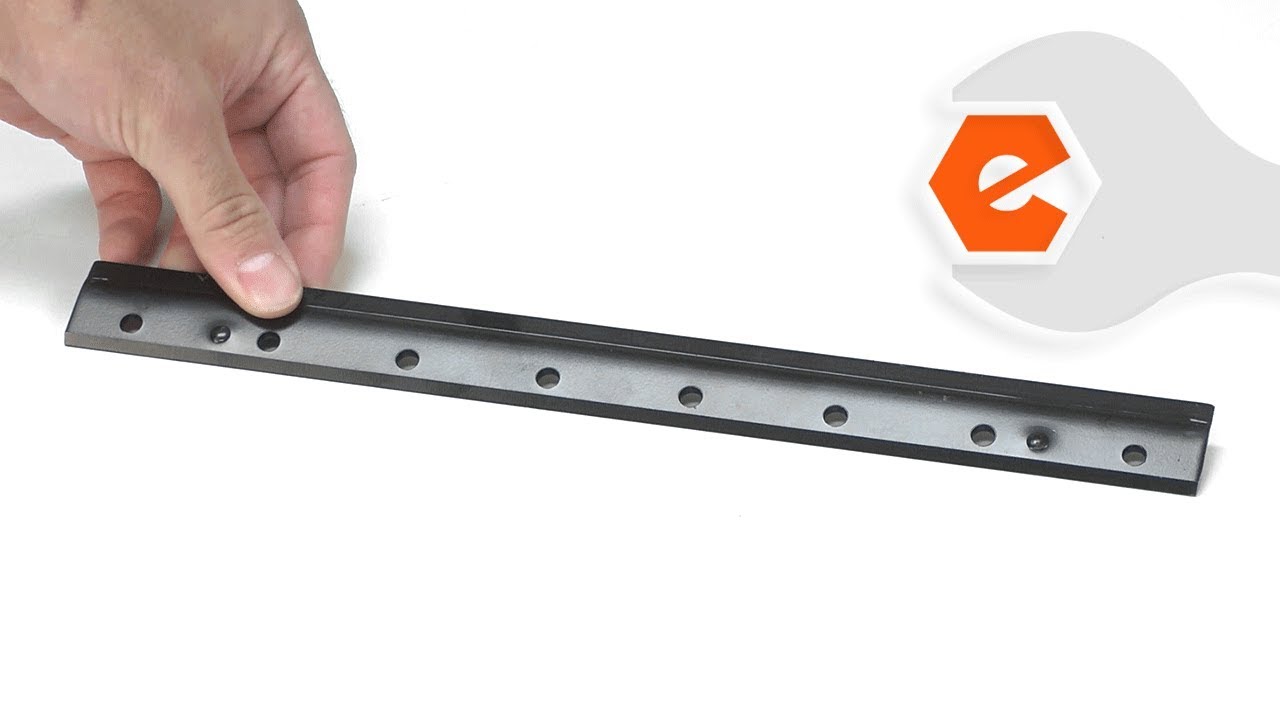

This item has been OEM sourced to ensure a high-quality standard. This part is manufactured to be used with thickness planers from DeWalt. The metal blade holder is used as a clamp that fastens the knives to the cutting head assembly. This blade holder is priced as a single item.
Removed the top of the planer, removed the dust/chip ejection chute, rotated and locked the blades, removed the 8 screws holding the bent blade holder bar and installed the new bar then reassembled the planer.
Did you find this story helpful?
Thank you for voting!
One Blade broke loose and locked up the thickness planer and broke the carriage. It also bent the blade holder.
Frank from Morris, Minnesota
0 of 1 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
1. Removed the planer cover to access the planer blades, removed the damaged blade holder and all other blade holders and blades.
2. Disassembled planer head from risers.
3. Removed carriage and associate parts and attachments.
4. Reassembled associated parts and attachments on to new carriage.
5. Reassembled plane
... Read morer head and installed on to riser posts making sure planer head is in correct position, and it moves freely up and down.
Read less
Did you find this story helpful?
Thank you for voting!
Blade holder came loose and snapped severing screws and damaged dust shroud
Removed the parts necessary to get to the drive pulley. The drive pulley key came out because the pulley was damaged. I replaced the key, drive pulley and the belt. It is necessary to use a clamp to stretch the belt enough to get the pulley on the shaft. I watched this process on YouTube to know how to use the clamp. I also had a blade
... Read more screw work loose. ( guess I got distracted and didn\'t tighten it enoiugh when I changed the blades. This caused the blade cover plate to bend and break the blade. I replaced the blade and cover plate. My DW735 is now working fine. Thank you for having in stock the belts, pulley, Key, and blade cover.
Read less
Did you find this story helpful?
Thank you for voting!
Screw dislodged and blade and blade holder broke and bent
