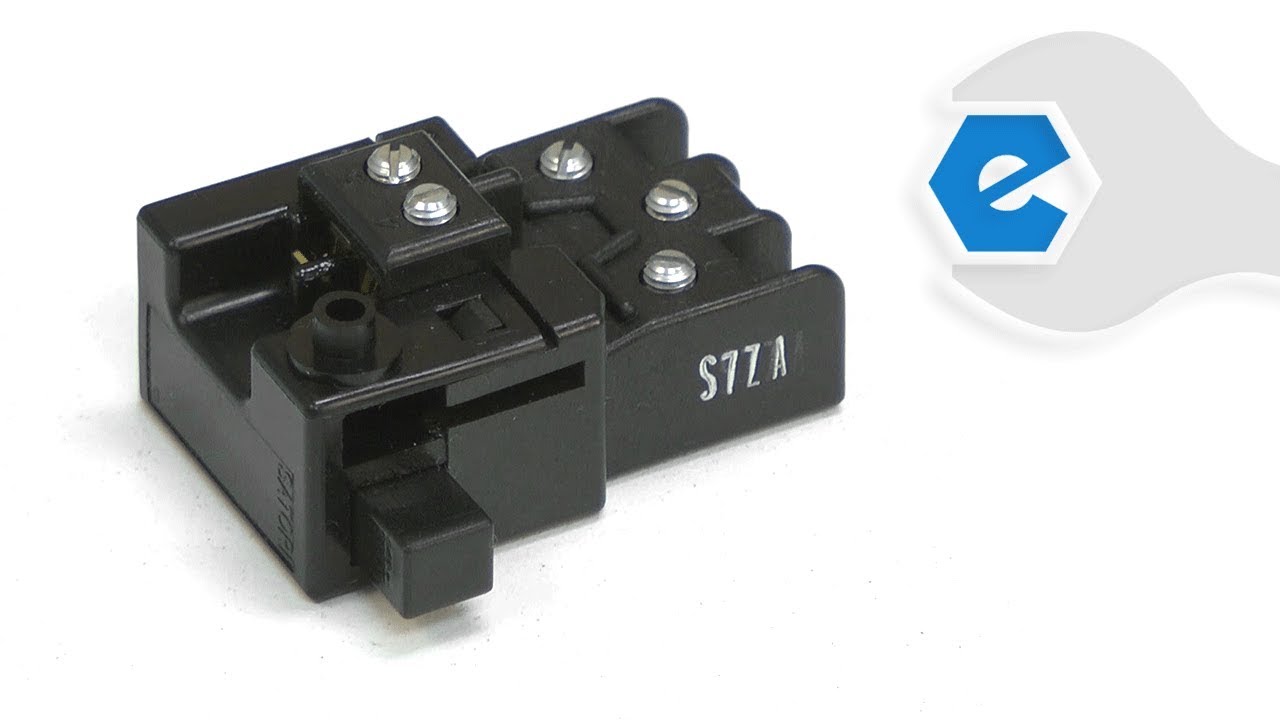

Genuine OEM Replacement Part used on some Makita Saws. This part is Sold Individually. A switch handles the on/off and variable speed functions. They also have a role in electric breaking; they can momentarily reverse electrical polarity. Because switches use mechanical internals, they will degrade and wear out over time, eventually requiring replacement.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy
The part arrived quickly, was correct and fixed our saw. Very happy.
Guest - August 24, 2019
Verified Purchase
★★★★★
★★★★★
Great service and shipped quickly
Fit perfectly
David - July 15, 2020
Verified Purchase
★★★★★
★★★★★
very simple replacement
very quick as were the other parts that I ordered
Guest - October 3, 2020
Verified Purchase
★★★★★
★★★★★
The exact replacement part!
It was so easy to find the part in the diagrams, the ordering was easy, and it shipped quickly. But the best part was finding the repair videos for each part. What a great service! Thanks.
Guest - December 11, 2020
Verified Purchase
★★★★★
★★★★★
Easy to order off o website & diagrams are very helpful. Quick delivery!
Saw is up and running again & quickly. switch fit perfect & solved the problem!
Guest - April 22, 2022
Verified Purchase
★★★★★
★★★★★
Makita Miter Saw Power Switch
The replacement part was an exactly the same as the factory original. Shipping was fast and the miter saw is running properly again.
Adrian - September 28, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Split the handle/trigger assembly. Watch for spring at bottom of trigger its under load. Make a wiring diagram of the wires. You may want to take a picture of the internal parts of the handle. Remove cord clamp. Disconnect the wires from the old switch and attach them to the new switch. Replace the cord clamp. Put the handle back together
... Read more.
Read less
Did you find this story helpful?
Thank you for voting!
My Makita Saw would not run. Replaced the Controller and it works like new! Thank you so much for having my part!
BE SURE TO UNPLUG YOUR SAW BEFORE STARTING THIS REPAIR.
Remove the two screws on the armature cover and slide cover off. This will expose the Controller. It just sits in there in a cradle type notch. Wiggle it out and remove one wire at a time from the old Controller on the saw and connect the new wires each time. This will ensure
... Read morethat the wires are properly connected.
The long red wire leading to the switch requires disassembly of the handle. After removing the handle screws, CAREFULLY take the trigger assembly apart. There is a tiny spring at the bottom end of the safety bar that will be hard to find if you lose it.
Attach the long red wire to the switch and reassemble in reverse order.
Your saw will start smoothly and run like brand new!
Took central nut off, miter guide, then lifted of table. Cleaned, and lubed with silicone spray. Replaced spring, reused old ball bearing. Reassembled, not over tightening nut. Much smoother now.
Also replaced switch to fix electronic brake issue. Fixed. Tip: Take a picture of the wires before disassembling.
Also changed bel
... Read morelows on back. Easy, except saw had been dropped and plate was bashed. Had to straighten. Little screws prone to stripping, but I made it work without stripping.
Remove screws from handle to expose power cord, and switch.
Removed wires from power cord connecting to switch one at a time. Make sure you note the terminals that you removed these wires from.
First the white(neutral wire) and the black(hot wire).
Remove the two screws from the power cord hold down clamp.
Replaced
... Read more power cord and Strain reliever and reinstall the power cord hold down clamp.
Connect both white and black wires to the new switch.
Remove the two brake wires from the old switch noting their position.
Connect the two brake wires to the new switch.
Replace the handle cover screws.
Read less
Did you find this story helpful?
Thank you for voting!
Switch failed in \"on\" position on Makita LS1040 Miter Saw made in 2011
1. Found Youtube video showing how to change switches. Removed plastic cover
2. removed trigger and adjoining piece
3. used small screwdriver to loosen wire in old switch and then install in new switch
4. re-assemble trigger and adjoining piece, and put in Black button
5. assemble plastic cover
My Makita mitre saw is so old they stopped making the switch for that model. The saw is in great shape so I ordered a switch for a newer model. The new switch was a little larger, but with some alterations to the inside of the handle I got it to sit in place and it works like the old one.
The only difference is that the blade brake
... Read moreno longer works. But I saved the saw from the trash.
