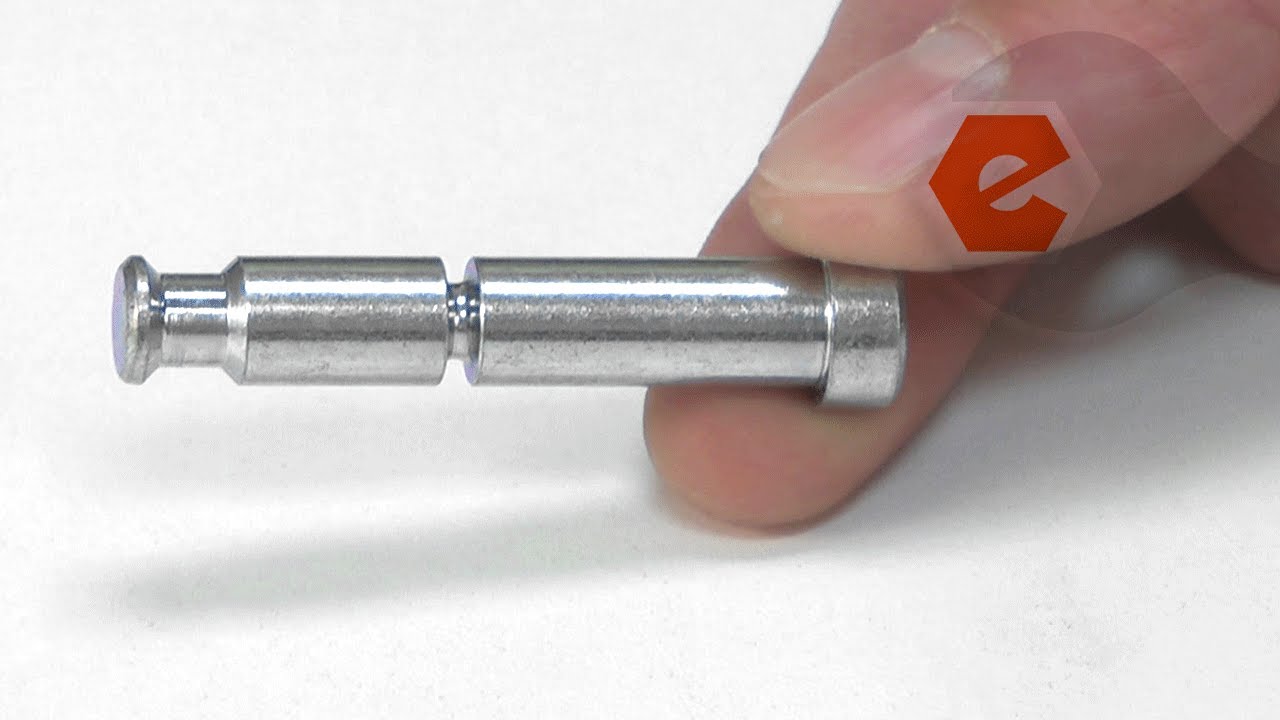

Authentic Manufacturer Approved replacement part designed for some Compound Miter Saws. The purpose of this part is to lock the saw arm in the down position. This item is made out of Metal and it is Sold Individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Does not get much better than that – thank you
They did what they said they would do, when they said they would do it, and for the price that they said they would do it for. Does not get much better than that – thank you
Guest - August 8, 2019
Verified Purchase
★★★★★
★★★★★
Easy Repair
The part arrived in a couple of days and was easy to install.
Saw now works like new.
Donald - September 13, 2019
Verified Purchase
★★★★★
★★★★★
Dewalt Locking Pin fit perfectly
This pin and the related o-ring fit my DW715 perfectly. The accompanying how-to video was immensely helpful.
Ben - November 19, 2019
Verified Purchase
★★★★★
★★★★★
Thanks
=ƒÖé
Mark - January 27, 2021
Verified Purchase
★★★★★
★★★★★
worked great
Very Happy, with how easy it was to find the exact part and it got to me in a matter of days.
Guest - March 9, 2022
Verified Purchase
★★★★★
★★★★★
Perfect Replacement Fit
Replacement pin worked as should just know you’ll have to put a new o-ring on it.
Robert - March 29, 2025
Verified Purchase
★★★★★
★★★★★
gotta have it
I carry my mitersaw to many locations. This pin was much needed. Arrived as ordered.
Greg - March 29, 2025
Verified Purchase
★★★★★
★★★★★
Pin worked
The pin worked fine once I purchased the o-ring that I feel should have been included with the pin
Kenneth - October 18, 2021
Verified Purchase
★★★★★
★★★★★
Needs better quality control
This is the 2nd time I had to purchase this replacement. The 1st broke within 3 months of light use.
Jonathan - May 30, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed Blade cover retraction arm.
2. Removed blade up position stop bolt.
3. Lift Blade up to clear lock pin.
4. Push broken Lock Pin out on Blade side.
5. Slip new o-ring onto lock pin.
6. Slide new lock pin and o-ring into position.
7. Push Blade down and re-install stop bolt.
8. Re-install
... Read more Blade cover retraction arm.
loosened screw on the stop so saw could move all the way back. pushed pin out pushed new one in, I had to use pliers to get it in. then moved saw back into place and tightened locking screw.
Did you find this story helpful?
Thank you for voting!
Aquired a well-used miter saw at a garage sale that had a broken locking pin and broken dust duct assembly that needed replacing.
1. Unplugged saw was placed on workbench.
2. With safety glasses on a philips head screwdriver was used to remove (at the rear of the saw) the shouldered screw that mounts the upper stop roller and the (flat with elongated slot) safety shroud link.
3. Disengage (move to the right) the link from the mounting stud. This allows t
... Read morehe throw of the saw to be extended to the rear.
4. Loosen the large 3-pronged (at rear of saw) bevel adjustment screw enough to clear the saw as the saw is extended to the rear.
5. Extend the saw to provide just enough clearance to remove (push out to the left) the remaining broken portion of the stop pin from its mounting hole.
6. Install new pin (small end first) into mounting hole and reassemble saw in reverse order.
6.
1 Remove stop nut on back of saw, this is the one that has the bar attached to open and close the blade guard.
2 Open saw (motor head fully) to access pin.
3 Use screw driver or punch to push out pin towards the blade.
4 Install O-ring onto new lock pin.
5 install new pin into slot.
6 Close saw engage lock pi
... Read moren and attach stop nut.
Loosen the blade guard to swing it out of the way to remove the broken pin and installed the new one with a new O ring (lost the O ring so had to get a new one). The blade removal wrench is right with the saw so no addition tools are needed :o)
This is the third time I have had to replace the locking pin so it gets easier and
... Read more faster each time
