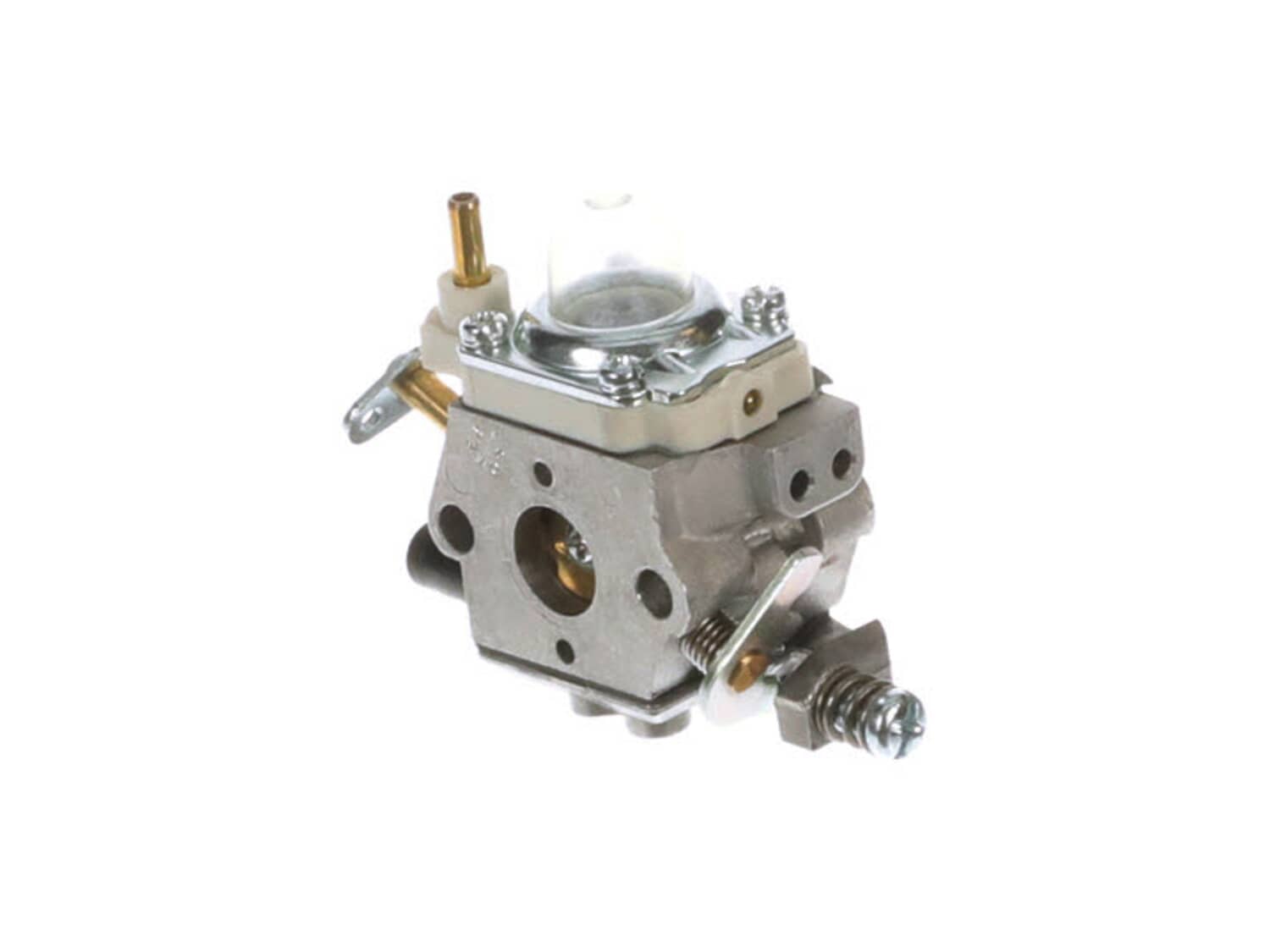

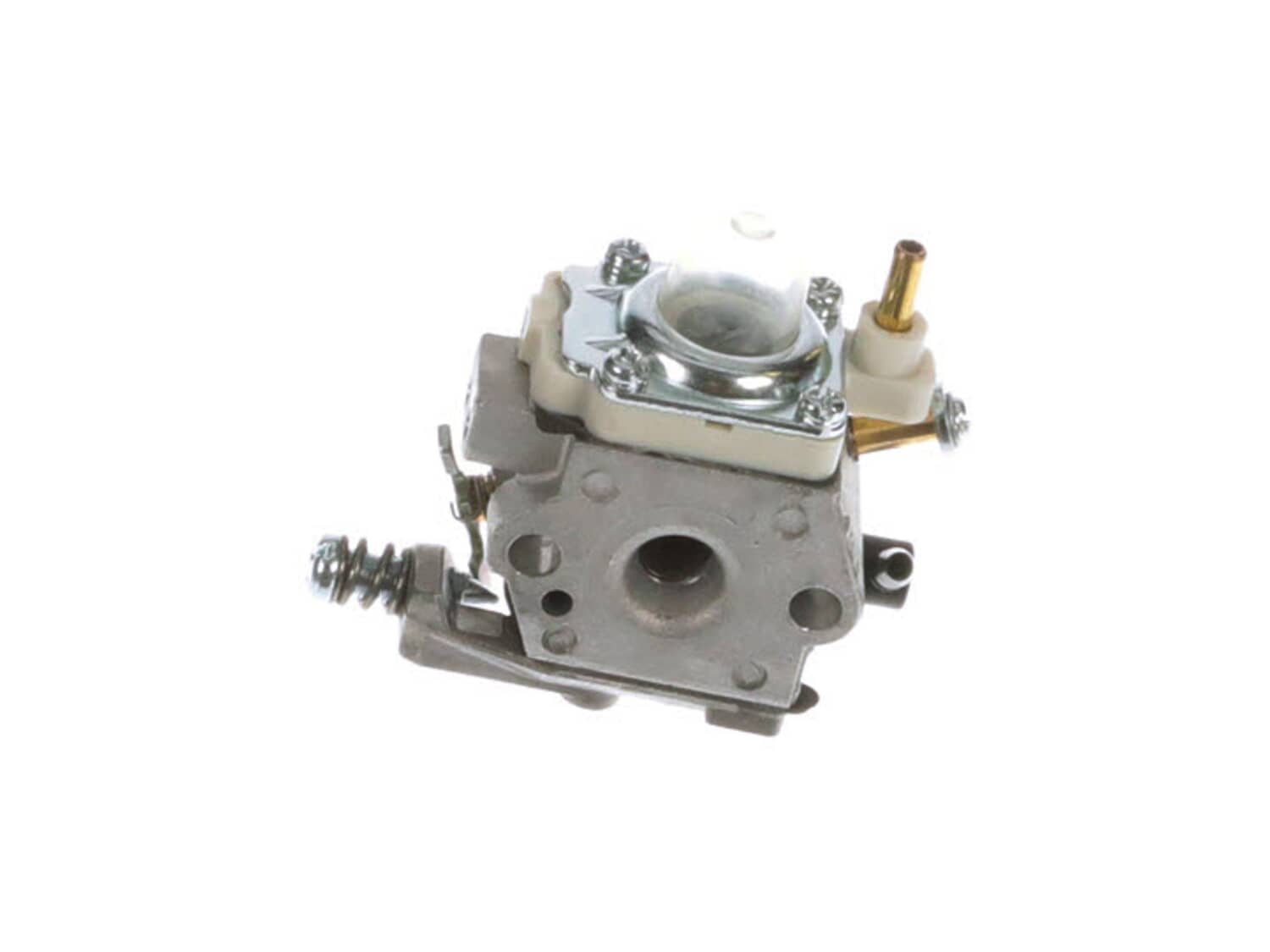

This is a manufacturer approved carburetor made for use with Echo handheld blowers. Carburetor mixes air and gas before the mix goes to the engine. This carburetor has a metal body and a rubber primer bulb. It is advised to replace gaskets (sold separately) when replacing carburetor to ensure top performance. To replace this carburetor you would need a screwdriver. • Remove air cleaner cover, filter and base • Remove old carburetor and install new carburetor using two (2) screws • Re-assemble and test the unit
1, Remove air cleaner to access and remove two carburetor bolts
2. Undo fuel lines and throttle rod
3. Remove old carburetor and replace with new
4. Reconnect fuel lines and throttle rod
5. Reinstall two bolts and air cleaner
Did you find this story helpful?
Thank you for voting!
I replaced the fuel lines and filter and did get it to start , but the blower would not take the gas.
Remove and replace the carb. it was not rocket science, but very straight forward. this was an ECHO brand which after lots of searching I found the Walbro carb takes a special adjustment tool which is expensive if you can find it. the customer said he had several repairmen look at the prob with no success. He said it has never run as we
... Read morell as is does now with the new carb, he was very satisfied!
Removed old carburetor hoses and throttle linkage
Checked gasket. gasket looked good.
Replaced gasket, installed carburetor
Put gas in tank . Primed carburetor, choked and pulled starter rope.
Fired right up and still running great
Today: September 24, 2018
I ordered the replacement carburetor back in July and received on July 26th, but didn\'t initiate the R & R until just yesterday (Sep 23rd).
I primed the bulb, put the choke on, made one pull, got a \'pop\', took the choke off and I am in business! I swear, this Echo Blower (from 2011) runs better n
... Read moreow than when it was new!
On a scale from 1 (being poor) to 10 (being excellent), I give this exact replacement carburetor a 10!
Thanks,
M. Wood (Ontario, Canada)
Read less
Did you find this story helpful?
Thank you for voting!
Engine wouldn\'t start, new carburetor fixed the problem.
Took original apart, lost some pieces:) Decided a replacement would be easier and faster. Worked fine after replacement. Also replaced the fuel line. If you have worked on small motors, was an easy fix. This is from a 76 year old man who likes to tinker and doesn\'t like to give up on a repair.
Machine was a 2019 eXmark mower. Removed engine block plug and installed pressure line fitting. Your question #1 only had ôblowerö option and only showed carburetor for parts used. Your service was excellent, questionnaire, not so.
Remove the air cleaner cover, and filter
Remove the fuel lines and throttle from the carburetor
Remove the screws holding the air cleaner base and the carburetor
Remove the carburetor and the gasket
Insert the two screws into the air cleaner base, through the carburetor and the gasket
Tighten the screws
... Read more>Connect the fuel lines and the throttle to the carburetor
Attach the air filter and the air filter cover
Read less
Did you find this story helpful?
Thank you for voting!
The blower had fuel issues shortly after purchase.
Remove the the air filter cover, air filter
Remove the fuel lines and throttle from the carburetor
Remove the screws in the air cleaner case and remove it and the carburetor
Mount the new carburetor and air cleaner case along with the bracket
Hook up the fuel lines and the throttle
Install the filter and the
... Read moreair filter cover
Read less
Did you find this story helpful?
Thank you for voting!
Bought my Leaf Blower several years ago as a Big Box Store return. Price was half off, so what can go wrong, right? It ran OK (not well, but OK) for several years, but this spring it would not run
