This is an authentic replacement part manufactured for use with Toro outdoor power equipment. The screw is commonly used to secure a part assembly to the handle and is used in different applications depending on the model of equipment. This screw is sold individually, please see model diagram for associative parts.
1. Disconnect the spark plug.
2. Measured cable length. Removed deck plug and cable above the deck and disconnected the spring from below the deck.
3. Remove the rear plastic chute assemble four nuts/bolts and two top deck screw(to allow easy access for spring installation).
4. Installed spring below deck and cabling
... Read moreabove deck.Install deck plug.
5. Adjusted cable length to original dimensions.
6. Installed rear plastic chute assembly.
7. Reconnected spark plug and readjusted cabling length for appropriate personal pace operations.
It was a pretty easy repair, just undo all the screws and bolts on the old parts and then put the new ones in (some of the parts, like bolts were still in good shape so I mixed and matched for what worked best regarding nuts and bolts). The traction cable does have to be set in the cable anchor properly so that it stays in place on the ha
... Read morendle but otherwise it is very straight forward replacement of parts.
One thing I got wrong, though, is that the upper handle is not symmetric and the bolt securing the cable anchor has a square head, so you\'ll want to make sure to get that right...square hole goes to the left size (orientation is relative to the mower being in front of you, like you are holding the handle and mowing). I didn\'t realize that until I had the whole thing almost entirely back together again. If you miss that like I did, you can also use a hammer to seat the bolt so you don\'t have to disassemble everything again.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9180974
Manufacturer Part Number: 95-4453
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

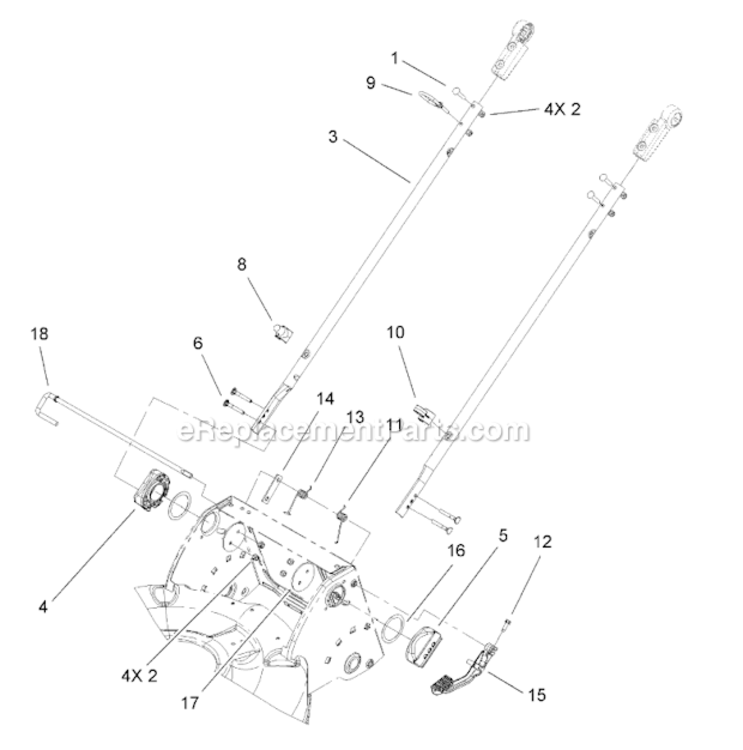

(2006)_WW_7.gif "Part Location Diagram of 95-4453 Toro Screw")
