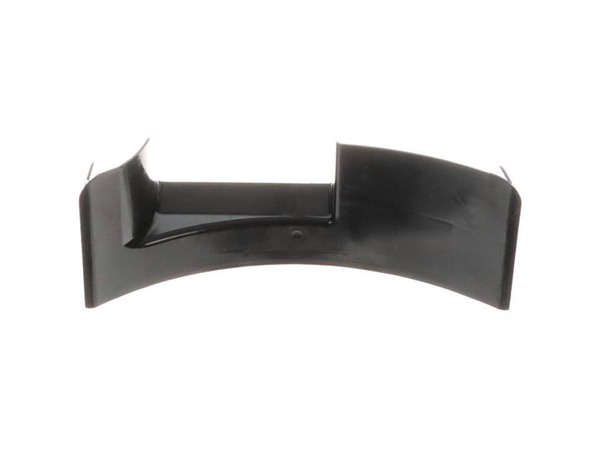

This is an authentic replacement part that is sourced from the original manufacturer and intended to be used with walk-behind lawnmowers from Toro. The plastic baffle attaches to the rear of the mower's deck and is used to restrict the flow of debris when mowing or water when washing out the inside of the deck. This item is sold individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Toro Lawnmower
Part was direct replacement and worked as described.
Matthew - July 8, 2019
Verified Purchase
★★★★★
★★★★★
ON time, Fit great.
Ordered three parts. All worked perfectly. Arrived on time. Price was competitive. Thanks.
Guest - July 11, 2019
Verified Purchase
★★★★★
★★★★★
Exact replacement part
The part was an exact replacement. Ordering online was easy and the part arrived very quick.
Guest - October 5, 2019
Verified Purchase
★★★★★
★★★★★
Great quality, super service!
We received not only perfect replacement parts and great service, but the video explaining how to replace the part was priceless. What a great company! We will definitely shop here again if needed and will highly recommend this company to friends & family.
Guest - April 16, 2020
Verified Purchase
★★★★★
★★★★★
Worked as expected ... Easy to install.
Received parts on schedule. I reviewed and followed the installation video. The video was "right on" and made it easy to install. Thanks!!
Guest - May 18, 2020
Verified Purchase
★★★★★
★★★★★
easy to repair
Very fast delivery,easy tp instal only 25 min
Guest - June 8, 2020
Verified Purchase
★★★★★
★★★★★
A little difficult to install, but worth it!
I gambled this would work on my 10 year old (at least) Toro PH-XT675 mower. The difficulty was raising the mower with jack stands on a table and removing the rear wheel assembly to fit the new part. No more grass clumps and the bagger works again.
Ryan - August 15, 2020
Verified Purchase
★★★★★
★★★★★
lawn mower
The part fit perfect thank, will use this site again when needed.
Guest - June 7, 2021
Verified Purchase
★★★★★
★★★★★
Fit perfect
The baffle on my lawnmower was broken in two with many chunks missing. About 30 minutes of work and my mower is like new.
Michael - June 14, 2021
Verified Purchase
★★★★★
★★★★★
Mower replacement part
Installed the replacement part and worked great. Good match.
Guest - June 30, 2021
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Much easier to repair if you work with the mower deck on a workbench up where you can more easily get at both top and bottom of deck. Remove rear wheels and handle assembly. Remove bolts holding rear baffle. Install new baffle and reassemble. Mower working like new!
Then remove the blade bolt, blade support and the old blade. The
... Read moren install the new blade, the blade support and screw in the blade bolt.
Read less
Did you find this story helpful?
Thank you for voting!
Had to change out worn rear baffle and trailing shield
To replace the underside baffle, I had to remove the rear wheels, and all the brackets that held the wheels and the adjustable mower-height features.
It took me an hour to figure out that the first thing you need to do is to take off the push bars. The rest of the repair went swiftly after that.
Note it took me longer than it should have taken. After completing the replacement I downloaded the various component part assembly diagrams. If I had done this first, it would have reduced the time to complete the repair to about half an hour.
1st - Detach the handle
2nd - Remove rear wheels and height adjuster
3rd -
... Read more Remove bolts holding rear baffle
4th - Align rear baffle with rear deflector and then reverse the steps above. The nuts were a bit difficult to align with the bolts and hold to secure.
Overall, not a very difficult task
Read less
Did you find this story helpful?
Thank you for voting!
Rear baffle cracked in half and was digging into the lawn.
Had to take the back wheels off, and it was hard getting the nuts back on with the new baffle because room is very limited to get your hands in there. Also the door came off when removing the wheels and getting the springs back on was difficult.
Had to remove handle, both rear wheels, and height adjustments. The only problem I had was not taking enough pictures with my phone when taking off parts. The new parts from e replacement went on easily. It was remembering the order of disassembly to reassembly of my old parts. Take step by step pictures when taking apart your mower. Aga
... Read morein the parts from eReplacement Parts went on easily. Will order from you guys again in the near future. I even saved your website to my homepage.
Stewart
1. Turn mower over to remove the two guard screws on the front of mower
2. Release clamp on the handle and replace the cable.
3. The rear shield requires removing both back wheels at the same time.
4. Suggest taking a picture so it goes back in correct order.
The only difficult bolts to reach are inside the shield.
1. Downloaded service and parts manuals from Toro website. Ordered replacement baffle
from eplacementparts.com
2. Drained gas from mower and disconnected spark plug wire.
3. Removed handle from rear wheel assembly but did not disconnect blade cable or drive
cable, set handle loosely to the side..
... Read more4. Turned mower on its front to get easy access to rear assemblies and stabilized with 2x4
plank.
5. Removed adjustable rear wheels and assemblies using 1/2GÇ¥ socket wrench and clamping
pliers.
6. Removed old baffle pieces using 7/16 socket.
7. Installed new baffle.
8. Reinstalled rear wheel assemblies, lowered mower, reinstalled handles and refilled tank.
Read less
Did you find this story helpful?
Thank you for voting!
A worn drive belt (part # 117-1018) and shattered plastic rear baffle(part # 1205218)
1. Removed spark plug wire from spark plug
2. Blocked and made cutting blade stationary.
3. Sketched connectors and fasteners associated with originally installed rear baffle
4. Unfastened connectors and fasteners holding old rear baffle in place
5. Replaced and installed replacement rear baffle
6. Chec
... Read moreked installation for correct placement of baffle and associated fasteners, brackets,
cables, wheel height adjustment
7. Determined drive belt replacement could be deferred or replaced as required.
8. Sharpened blade
9. Unblocked cutting blade, checked blade (360 degree) movement
10.Connected spark plug cable and connector to spark plug, checked oil and gas
11.Started mower up, one pull
12.Mowed lawn (Performance was as good or better than when machine was new)
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8856278
Manufacturer Part Number: 120-5218
