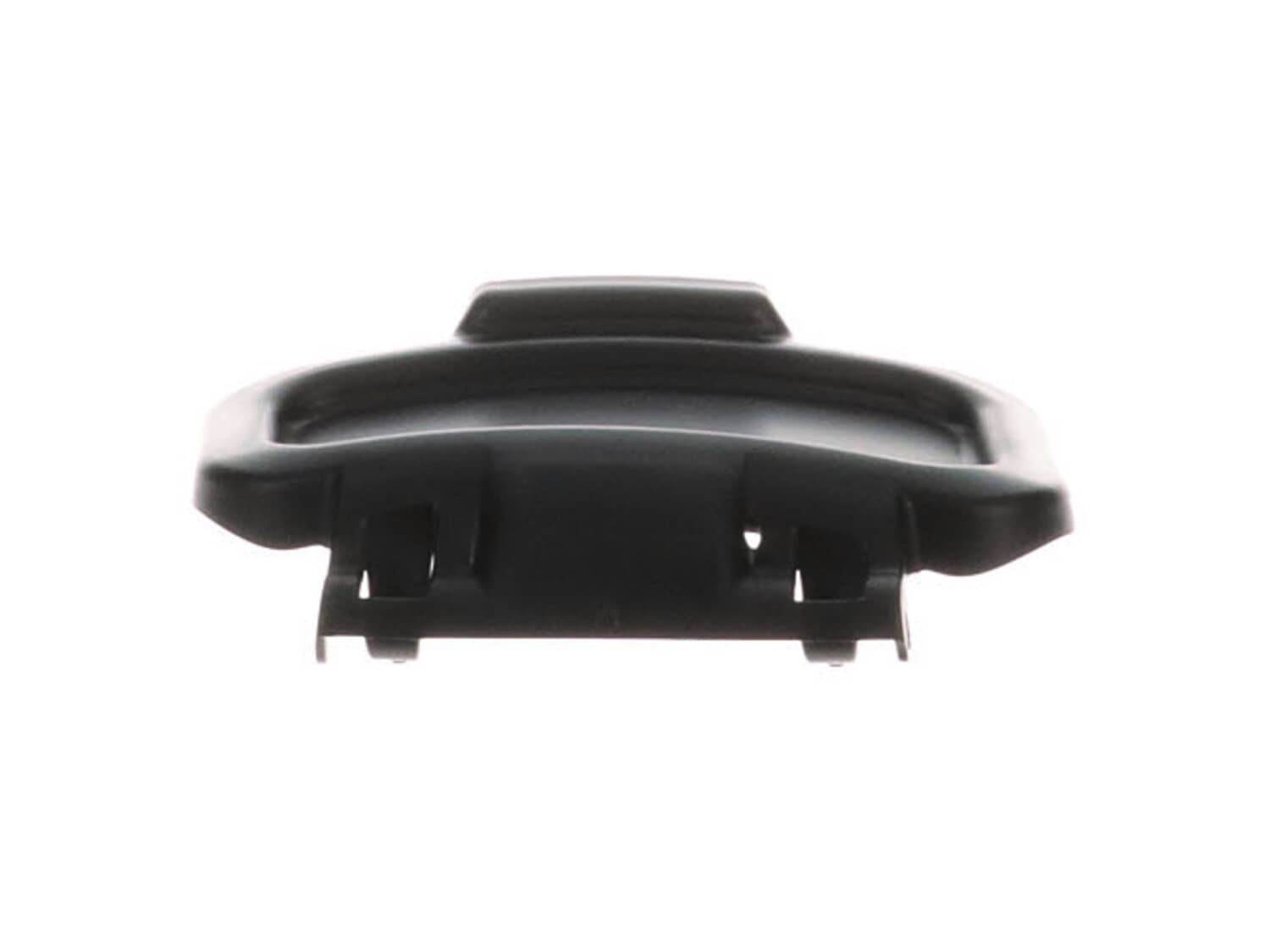

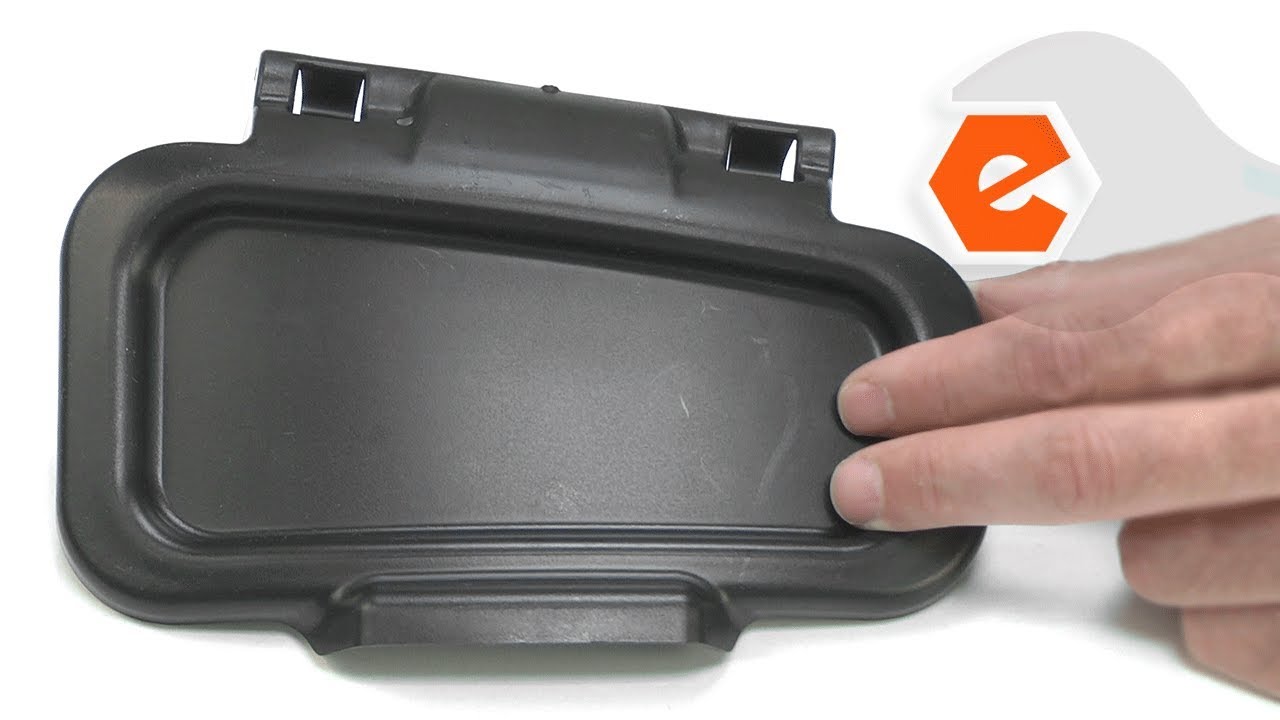

This is a genuine OEM sourced replacement part designed for use on Toro lawn mowers. It is mounted to the side of the mower and it acts as a door to keep the grass under the deck. This makes your grass clippings better as mulch since the smaller clippings will decompose more quickly, releasing their nutrients into the soil. Please note a bracket and other hardware used to attach this mulch door are sold separately. This part is made out of black plastic and it is sold individually.
Remove all of the parts from the broken chute.
Place the spring in the deflector so it will force the deflector down, when assembled
With pressure on the spring, lower the assembly to the bracket on the saw and press the pin through the hole ion the bracket, through the spring and out the other side of the deflector
Removed bolt and replaced new parts, including a larger piece of the selector assembly ordered elsewhere. It went together well and is now functioning appropriately.
Did you find this story helpful?
Thank you for voting!
The tab on chute was broken, deflector fell off, ran it over
Removed old parts, took spring loaded part off old chute, installed on new, reassembled parts on mower
Spring loaded chute was tough to reassemble, had to use vice grips to hold spring while installing pin that held assembly together.
Did you find this story helpful?
Thank you for voting!
Side deflector wouldn\'t hold the chute on- the projections on the deflector had worn off
I went on line and found a similar repair and did what they did- I did easily find the part I needed on Replacement parts and got my mower going again fairly easily. At one point in the repair I had to get my wife to push in the rod while I held the spring in place but other than that I did it by myself. I was on the verge of buying a new
... Read more mower- the $40 parts saved me from that. Thanks
1. Easily pushed the pivot rod toward the handle of the mower.
2. Placed and aligned the spring into the new deflector.
3. Position deflector and insert pivot rod.
4. Press downward to flex spring.
5. Insert pivot rod and gently tap into place with a small hammer.
6. Tap into final position using the screwdri
... Read morever and hammer.
Read less
Did you find this story helpful?
Thank you for voting!
Missing side deflector cover and attachment hardware.
Removed the old deflector. Used a screw driver to push the pivot shaft out so I could grab it with a pair of pliers. Removed the shaft. Removed the spring from the old chute and put it in place on the new chute. Reinstalled the pivot shaft and attached the assembly on the lawn mower. Done.
Unbolt two standard 10mm bolts from lawn mower main deck side. Pull out retaining pin/spring carefully. Has some tension on part. Reassembly all parts in the reverse sequence. Place part to mower deck. Firmly tight bolts for safety. Done with major savings. Thanks.
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8845543
Manufacturer Part Number: 115-8449
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
