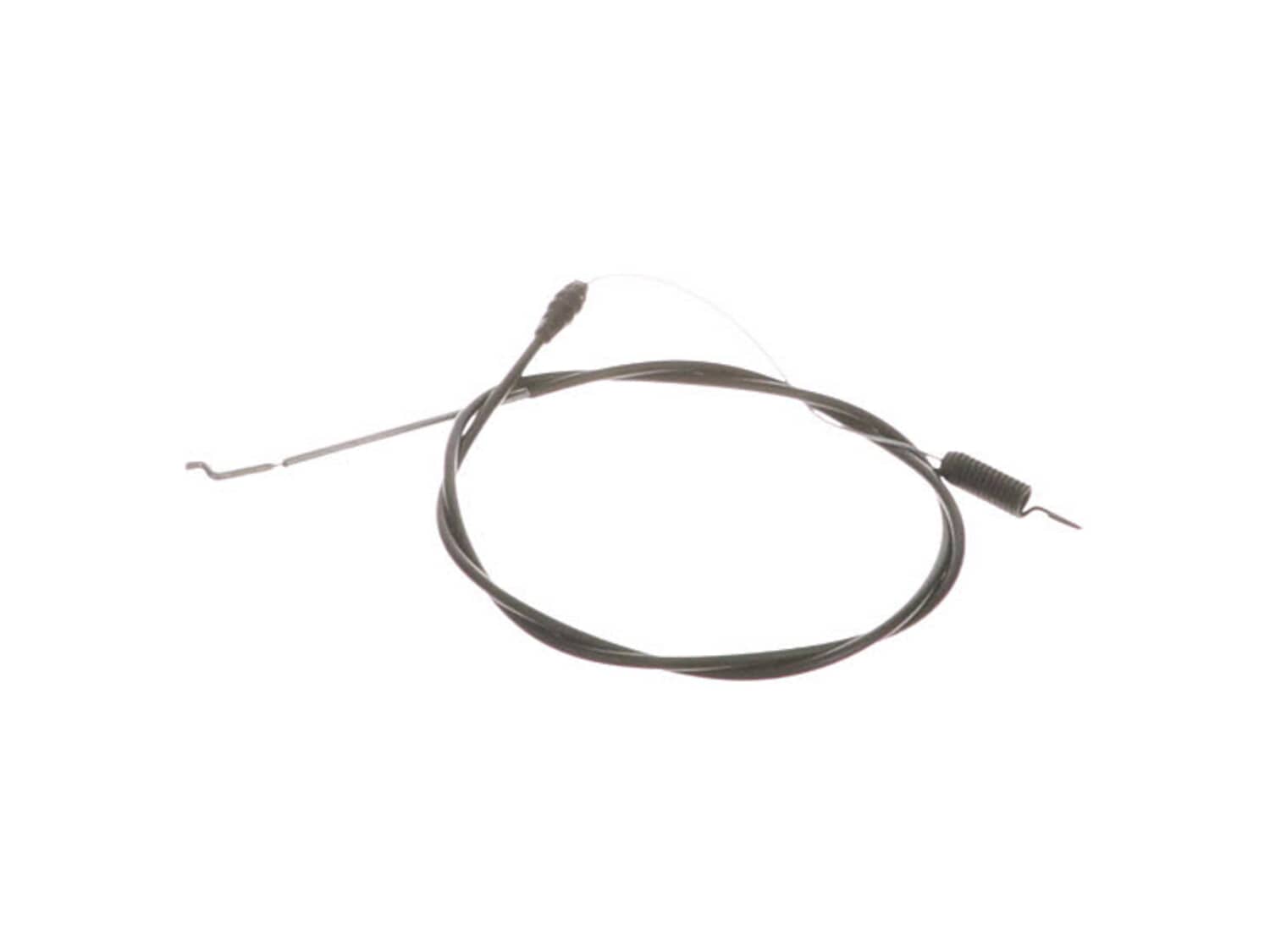

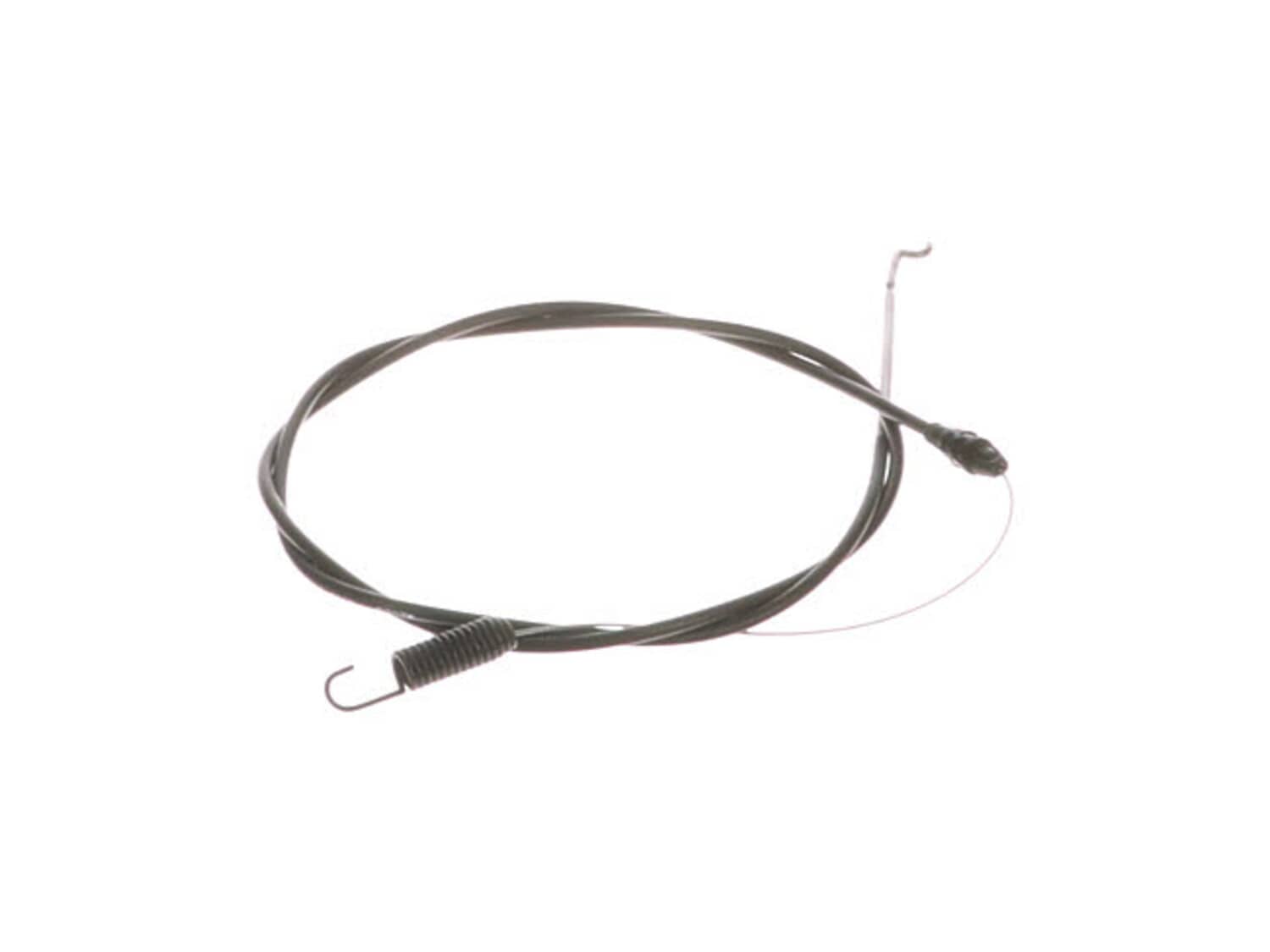

This is an authentic manufacturer sourced replacement part designed for Toro lawn mowers. The traction cable is used to engage the drive wheels of a lawn mower. It is connected to the traction bail and then attached to the traction bracket near the transmission. This cable is rubber insulated to help protect it. Includes one cable per order. To complete this repair you will need a screwdriver and pliers. • Note the position of the old cable • Remove the nut and washer securing the cable to the bracket • Remove one end from the control handle • Release the old traction cable from where it is secured • Release the spring bolt from the transmission bracket • Pull the old traction cable out • Secure the new cable in place • Reassemble in reverse order
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Very Satisfied
The cable arrived quickly and is working great!
Guest - October 10, 2019
Verified Purchase
★★★★★
★★★★★
Genuine OEM Parts
Very pleased with the email communications and timeliness it took to receive the parts I ordered.
Guest - May 11, 2020
Verified Purchase
★★★★★
★★★★★
Exactly the right part.
Showed up quick and was an exact match to my damaged part.
Guest - July 17, 2020
Verified Purchase
★★★★★
★★★★★
Knee high grass
timely arrival- worked like a charm- grass is NOT knee high anymore
Guest - May 22, 2022
Verified Purchase
★★★★★
★★★★★
Traction cable replacement
I'm very pleased with whole process. The needed part was easy to find, order and delivery beat the projected schedule. Price was right and can't beat that, thanks Tom
Thomas - May 30, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Tipped the mower over and removed the blade nut note use a block of wood to hold blade steady. And the two cover plate mounting bolts to cable housing.
2. Install new blade using the same mower bolt. Don\'t forget to use the block of wood to hold blade steady.
3. Turn the mower right side up and install new cable. Run sprin
... Read moreg clip through housing and attach, and push black plastic clip through housing until it clicks into place. Run cable up through cable housing and run S clip into throttle housing. Note don\'t tighten cable until you have run cable through brackets and loop harness. Once installed you can tighten mounting bolt( my model has one bolt on the left hand side of mower handle bar that also holds the throttle lever)
4. Turn mower on it side again and install the two cover plate bolts from underneath and tighten. Total time for both installs 20 minutes.
One other note tip the mower on its side with gas tank facing up or you\'ll have a gas puddle on the ground.
1. Removed the old cable with needle nose pliers and socket wrench.
2. Attached new cable with socket wrench.
3. Removed old lawn mower blade with socket wrench.
4. Attached new lawn mower blade with socket wrench.
5. Attached new lawn mower chute by hand (no tools necessary).
Did you find this story helpful?
Thank you for voting!
Drive belt, traction cable and deck clippings deflector needed replacing.
Luis from Cutler Bay , Florida
4 of 4 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
On two separate orders I purchased which contained the drive belt, the traction cable and the deck clipping deflector, I was able to replace all the parts withing an hour of manual labor.The plastic clipping deflector underneath the main deck was the hardest part to replace due to the rear wheel axle having to be removed to replace the pa
... Read morert. The belt required it to be mounted onto two pulleys, one was on the main motor shaft and the other one was on the drive motor itself. The drive motor required a special nut driver which could have easily be found at Sears or any other tool place. The cable took on minutes to replace.The unit now runs like new and I was able to avoid having to spend another three hundred dollars to replace it.
Remove cover on top of deck. This covers your drive motor and can be removed by two bolt type screws under the deck. With the mower sitting up, remove the cable spring. Use pliers to remove the cable from the eyelet. Remove nut at cable holder just below your handles and pull cable out. Installation I usually start at the spring and wo
... Read morerk my way back up. Seems to work just fine.
Removed the plastic housing near the front left wheel by removing 2 screws, then loosened the bolt on the handle that holds the cable. Rather easy install.
Went online and found a video with my exact mower and how to replace the cable. I watched that and then was able to easily change it out. The part that took the longest was finding my socket set! I haven\'t changed the side deflector yet, I needed to mow the lawn before it rained again.
Lay mower on its side.
Remove the 2 threaded bolts on drive housing cover.
Remove traction cable tension spring
Remove old traction cable
Install new cable by reversing above process
Did you find this story helpful?
Thank you for voting!
Cable connection to the handle \'insert\' frayed(Broke)
Observed the route of the cable to be replaced. Two bolts on the under carriage had to be removed to uncover the plastic housing to the drive cable. Unhooked the old cable and replaced the new. Adjust as necessary.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8844804
Manufacturer Part Number: 115-8436
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
