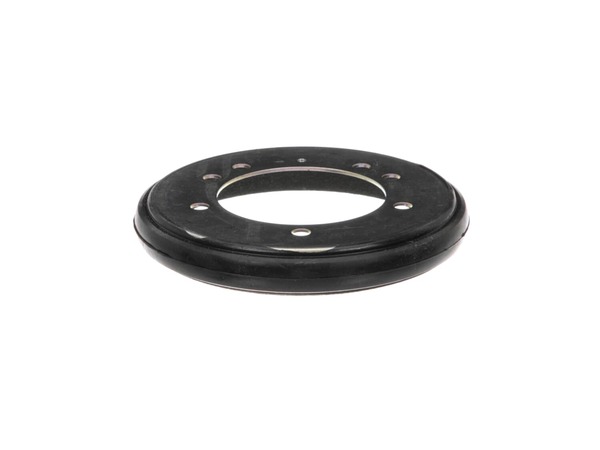

Genuine Manufacturer Sourced replacement part designed for use with a variety of Riding Lawn Mowers. This Friction Ring is an important part of a Smooth Clutch Assembly which helps to drive your mower. This item is made out of Metal and it is Sold Individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
great part
no problems
Guest - May 23, 2019
Verified Purchase
★★★★★
★★★★★
Good quality and fast delivery!!
Fit right in without any issues - tremendous value!
Iglobal - May 28, 2019
Verified Purchase
★★★★★
★★★★★
The right part, the right time
Couldnt find the part anywhere local. Found eReplacement, and found the right parts for 2 different machines. Received them in a couple days for a bargain price.!
Guest - June 1, 2019
Verified Purchase
★★★★★
★★★★★
Was easy to replace
The part was in excellent condition and easy to put on and my lawn mower is back in working order. Just wish I could have gotten it sooner, as my grass was getting taller
Guest - July 26, 2019
Verified Purchase
★★★★★
★★★★★
Perfect fit
Worked as expected
Guest - September 9, 2019
Verified Purchase
★★★★★
★★★★★
it was as expected no surprises
It worked just fine
Guest - October 2, 2019
Verified Purchase
★★★★★
★★★★★
It was great
Got here in 3 days
Timothy - April 22, 2020
Verified Purchase
★★★★★
★★★★★
Everything went perfectly
Good
Guest - June 9, 2020
Verified Purchase
★★★★★
★★★★★
Hassle free experience. Part arived on time perfect fit. =ƒæì=ƒæì
Guest - June 3, 2022
Verified Purchase
★★★★★
★★★★★
Attentive staff,great customer service!
Part had manufacturing delays, "eparts" staff was wonderful in assuring me that the part would arrive as soon as it shipped from the manufacturer and it arrived quickly after I got the email that it shipped, thanks
Guest - January 31, 2023
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Turn off the gas flow or remove gas tank in preparation to tilt unit up in the air, engine near the ground, front up in the air. One of the features that keep me coming back to this model of mower in the Snapper line up.
2. Place the unit in neutral.
3. Using a 1/2\" box end wrench and a large screw driver remove the fo
... Read moreur (4) retaining nuts on the Friction Ring. I use the screw driver to provide stopping leverage by placing in between two of the nuts while loosening one of the other free ones. This allows the user to loosen one nut while holding the Ring from turning while working on removing the nuts one at a time. Rotate the ring and repeat above until all four(4) retaining nuts have been removed. Note: Care should be given when using the screw drive to apply holding power on UN-protected threads near the end of the procedure.
4. If there is a circular fiber disk, be sure to reinstall it just as it came off.
5. Insure during re-installation the fore nuts are tightened.
6. Inspect your work. Correct anything that looks out of the ordinary.
7. Remove the unit from the upright position, turn gasoline one, or replace tank.
8. Enjoy!!! .....tee hee
1. Raised the back end to access the friction ring.
2. Attached vise grip to keep friction ring from turning.
3. Removed 4 nuts with ratchet and socket.
4. Removed and replaced friction ring.
5. Attached vise grip to keep friction ring from turning.
6. Installed 4 nuts. Removed vise grip. Done.
Did you find this story helpful?
Thank you for voting!
Friction drive ring had to be replaced and also the mower deck drive belt replaced
Removed 5 nuts ( used vise grips to hold assembly for nut removal and replacement) did all work with mower sitting on all four wheels. Used flashlight and looked through holes at back of mower. Mowed grass with no slipping of clutch. Mission accomplished!
Did you find this story helpful?
Thank you for voting!
Belt was bad, drive disk was bad, yoke was bad and blades were worn out.
Removed the old belt, put the new one on, removed the old yoke, replaced with the new one, then removed the old drive disk, and installer the new one. Last, replaced the old blades with the new ones.
1. Shut fuel off and stood riding mower on it\'s rear end.
2. Removed existing friction ring.
3. Removed brake lining from old Friction Ring and installed on replacement part.
4. Installed replacement part.
5. Lowered mower back on wheels
6. Opened the fuel valve (in gas cap)
7. Mowed the yard.
I have a chain hoist. So I backed my mower up to it and raised it about 2ft. Then used a 1/2\" drive ratchet with 15/16 socket to hold drive wheel in place. Then used a 3/8\" drive ratchet and 1/2\" deep well socket along with a pipe for a cheater bar to break the 4 nuts (they\'re very tight if it\'s never been replaced). Once they\'re lo
... Read moreose they\'ll come off with your fingers. Then just reverse the process. Probably won\'t need the cheater bar to tighten them back. ALSO when installing the thrust washer be sure it\'s turns freely before tightening the cover plate down completely.
Read less
Did you find this story helpful?
Thank you for voting!
Oil was filling the crankcase. Was slipping when you but when it was running it was slipping when we were driving
Dan from Pflugerville, Texas
1 personfound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Remove the air filter in carburetor. Cleaned all parts including needle and seat. Replaced gaskets and air filter install carburetor. Installed plug period tilted engine tilted mower at a new place friction ring on transmission. At a gas with stable.
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9304113
Manufacturer Part Number: 7600135YP
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
