1. Remove screws from saw case. (Security Torx Screws)
2. Remove one case cover. Do not lose the trigger spring.
3. Loosen 2 screws holding motor assemble in case. Lift up assemble to access the screw hole in the bar.

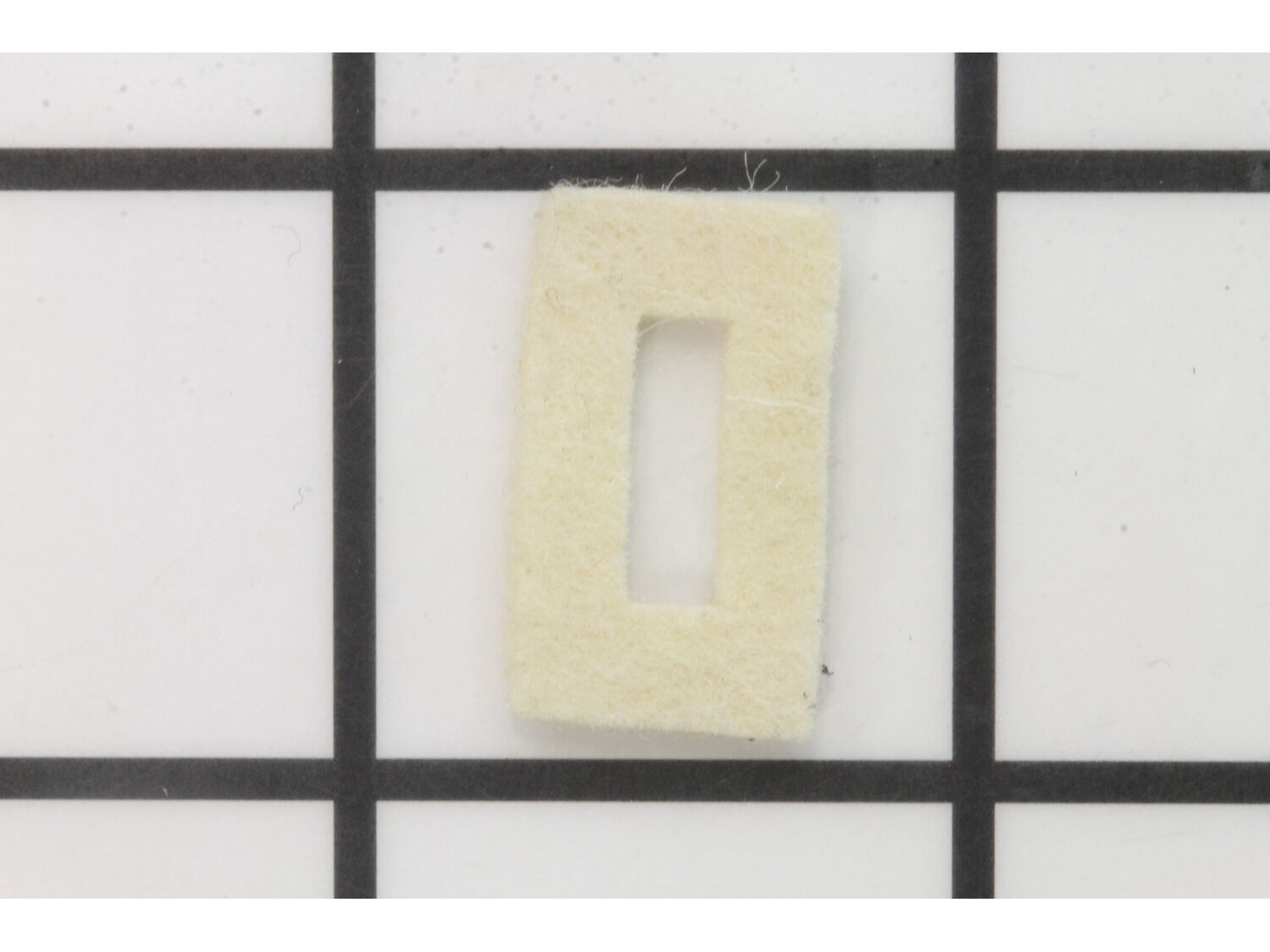

4. Replace Seal as needed.
5. THE SLEEVE BEARING WILL NOT FIT ON THE BAR. THE BAR IS TOO WIDE.
... Read more />6. Place 2 screws through bar holes.
7. Tighten screws into blade clamp assembly.
8. Re-tighten motor assembly.
9. Replace cover making sure trigger spring is in place.
10. Replace case cover screws.
11. Note that new assembly does not hold blade as well as the original assembly.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10184622
Manufacturer Part Number: 795694
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
