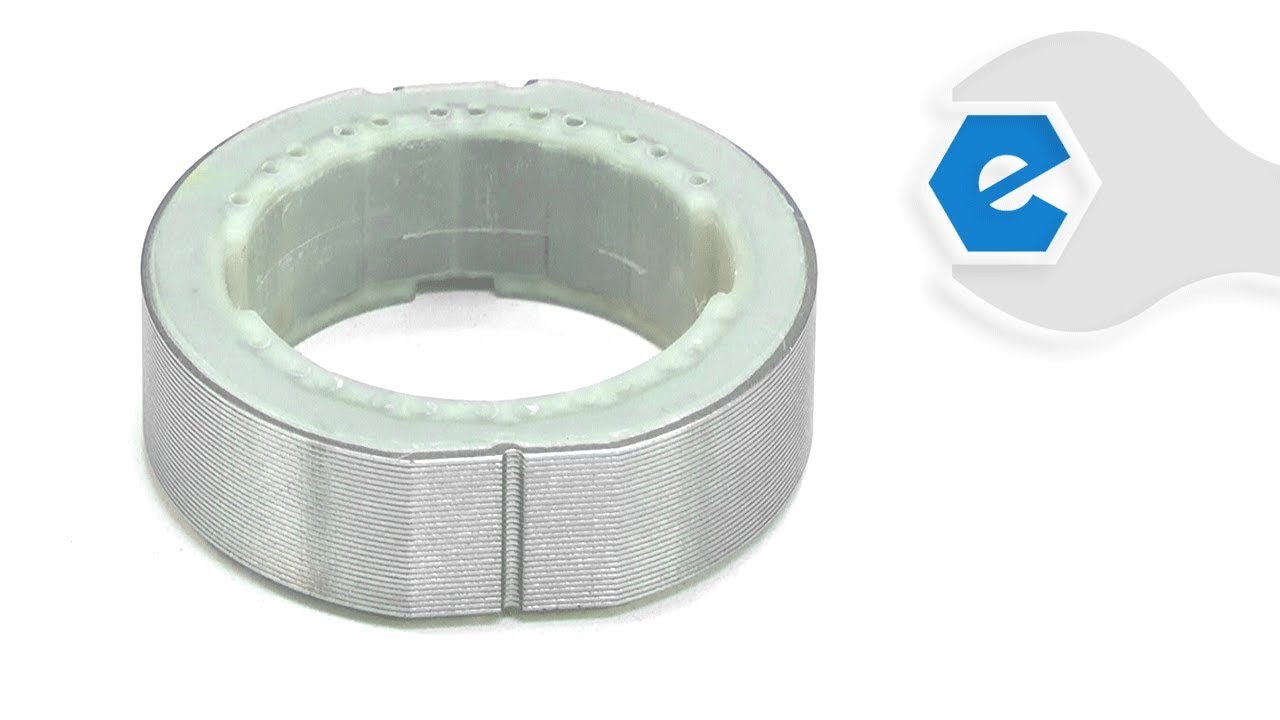

This is an authentic DeWALT replacement part. The magnet ring is designed by the manufacturer for use in impact drivers and impact wrenches. This part is used in conjunction with the armature assembly to provide power to the machine. You will require a torx screwdriver when replacing this part. It is advisable when removing multiple parts to keep careful track of their order so they can be reassembled correctly. This item is sold individually.
1. Take the screws out.
2. Pry the two halves apart.
3. Pull the wires off the brush holder. Note which color wire goes where.
4. Disconnect the wires for the lights.
5. Pull the brush holder, ring, armature, and gear housing out but note how the ring is sitting in the housing.
6. Install the new ring, b
... Read morerush holder, and armature.
7. Install the ring in the same orientation as the old magnet ring.
8. Connect the lights
9. Connect the wires the the brush holder.
10. Put the two halves back together.
11. Put the screws back in and tighten.
Read less
