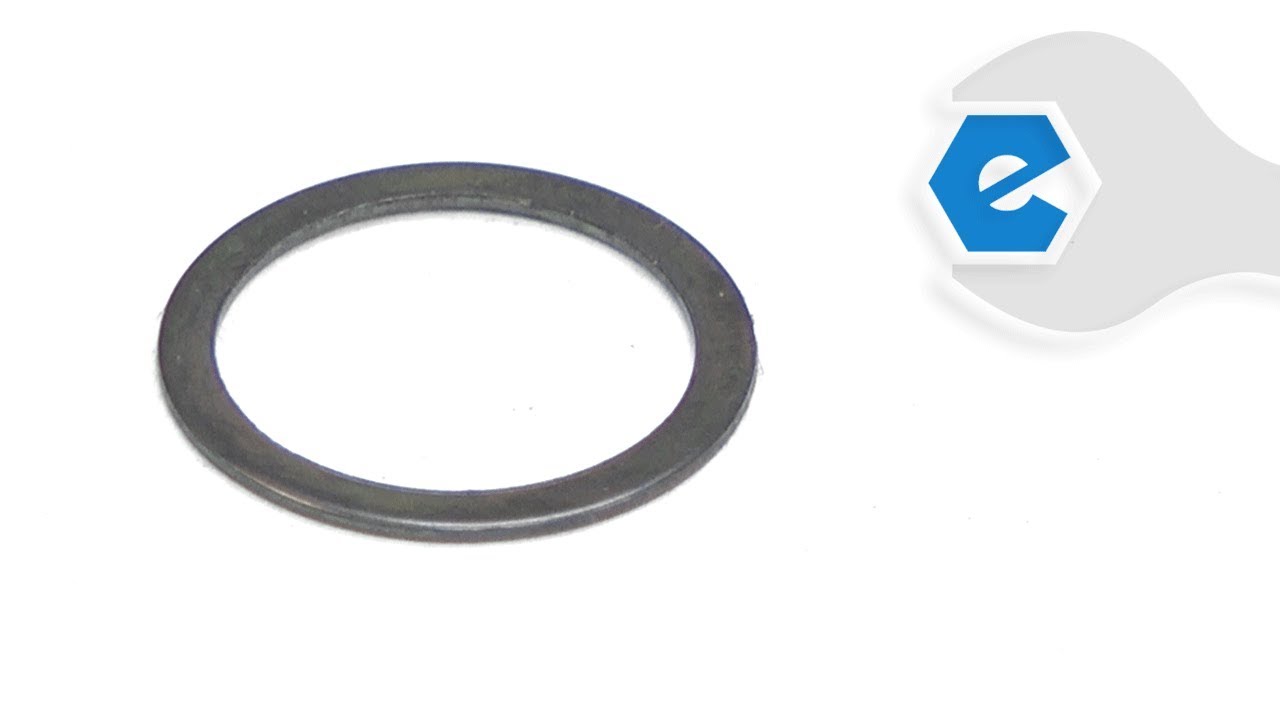

This is a genuine OEM part sourced from the manufacturer. Sold individually. Washer provides a bearing surface for fastener load distribution or acts as a spacer. Is used in a number of impact drivers, listed below.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Exact fit
Needed a few parts to rebuild my drill was easy to navigate around the web site to find the parts i needed.... Just put the part number in the search bar and there you have all the parts needed to fix your drill.
Guest - May 12, 2020
Verified Purchase
★★★★★
★★★★★
Easy fix
Part fit perfect impact gun working great
Andy - September 7, 2020
Verified Purchase
★★★★★
★★★★★
Needed parts
The parts arrived in a timely manner and in good shape. I will definitely use you guys in the future.
Guest - November 2, 2020
Verified Purchase
★★★★★
★★★★★
Perfect parts and fast shipping.
All of the parts were exactly what I needed and arrived fast.
Guest - April 30, 2021
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
First pick the hog ring off
Remove washer spring cap and ball
Put new parts in and reassemble
Be careful the hog ring is hard to get on
Start on one side and work it around your job is done
If your impact driver does not hold a bit replace the spring behind cap.
Which holds the ball, shoul
... Read mored fix your drill
Pull the case apart disconnect wires from brush assy, replace brush assy attach wires.
Pop the C clip remove the washer, sleeve and spring. The ball is gone by now. replace ball, spring, washer and C clip. I take the opportunity while appart to clean the inside of the case of old dirt and grease. I re grease the gear assy in the nos
... Read moree cone.
1. I initially disassembled the chuck assembly. Unaware of the compressed spring under the compression ring and washer, the chuck slipped from my fingers and I lost the compression spring, washer and steel ball.
2. Upon receiving the parts, I reassembled the chuck , but it did not work properly.
3. I then disassembled the ch
... Read moreuck again carefully gripping the compression ring, spring and ball.
4. I then reassembled the chuck placing the steel ball above the retention spring in the slot on the shaft rather than below the spring in the slot.
5. The chuck worked as designed after the second reassembly.
NOTE: I think that the video instruction you nicely provided should also include:
1. A warning that once the compression ring is released that the chuck and related parts are under pressure and should be held firmly so as not to lose any parts.
2. A note that indicates that the steel ball is to be placed above the ball retention spring rather than below the ball retention spring.
3. The second spring ( the ball retention spring ) should be named just that .
Thanks again for the ease of ordering parts on your website and the excellent video\'s that make repairs less daunting to the average DIY\'er
Remove the hog ring with a small screwdriver
Remove the washer
Remove the compression spring
Remove the sleeve
Remove the steel ball
Remove the broken spring
Install the removed parts in reverse order
I located your you tube video. It made the repair go much easier and faster than without it. Here is the copy of it for those of you that have the same problem.
