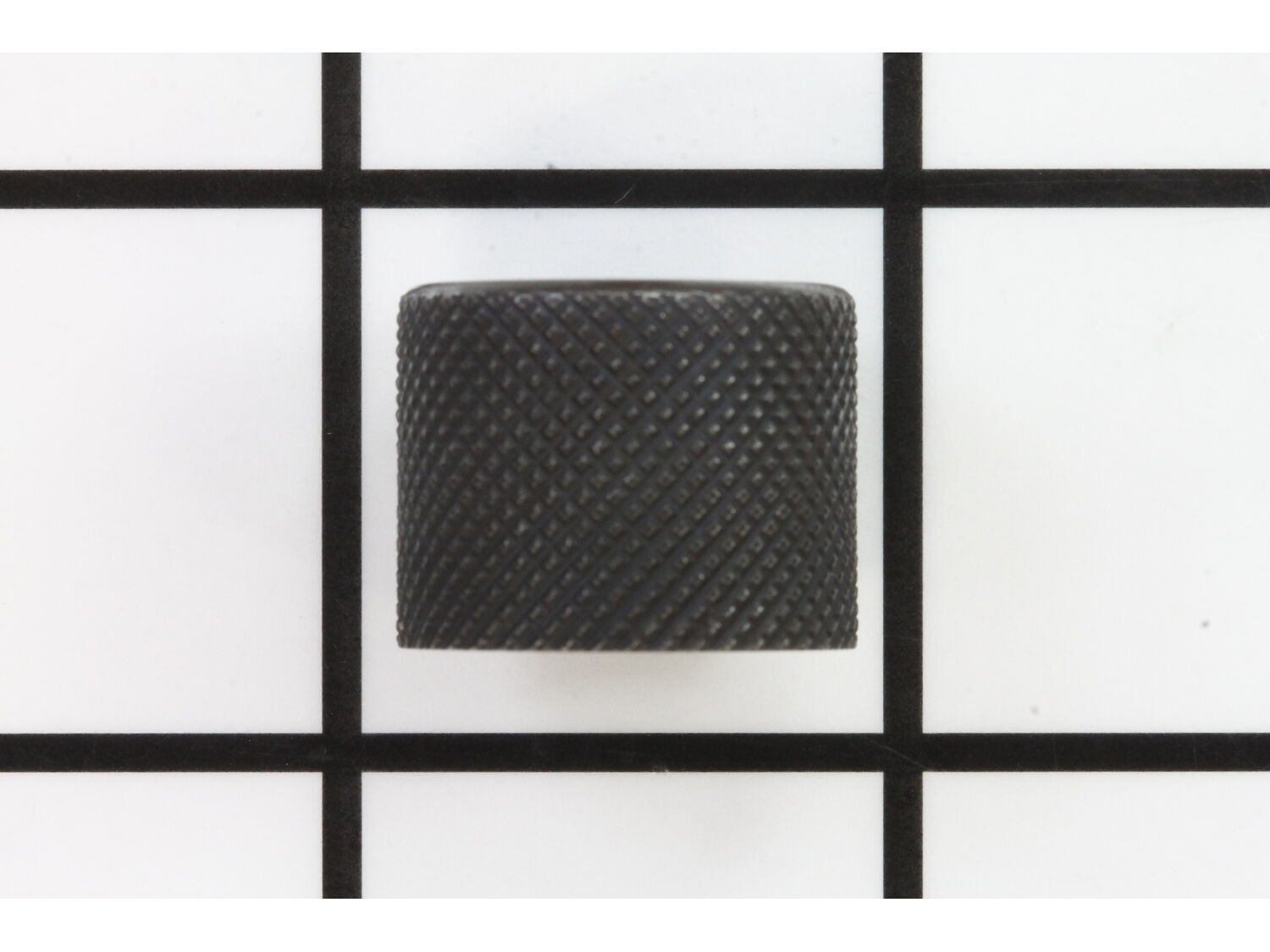

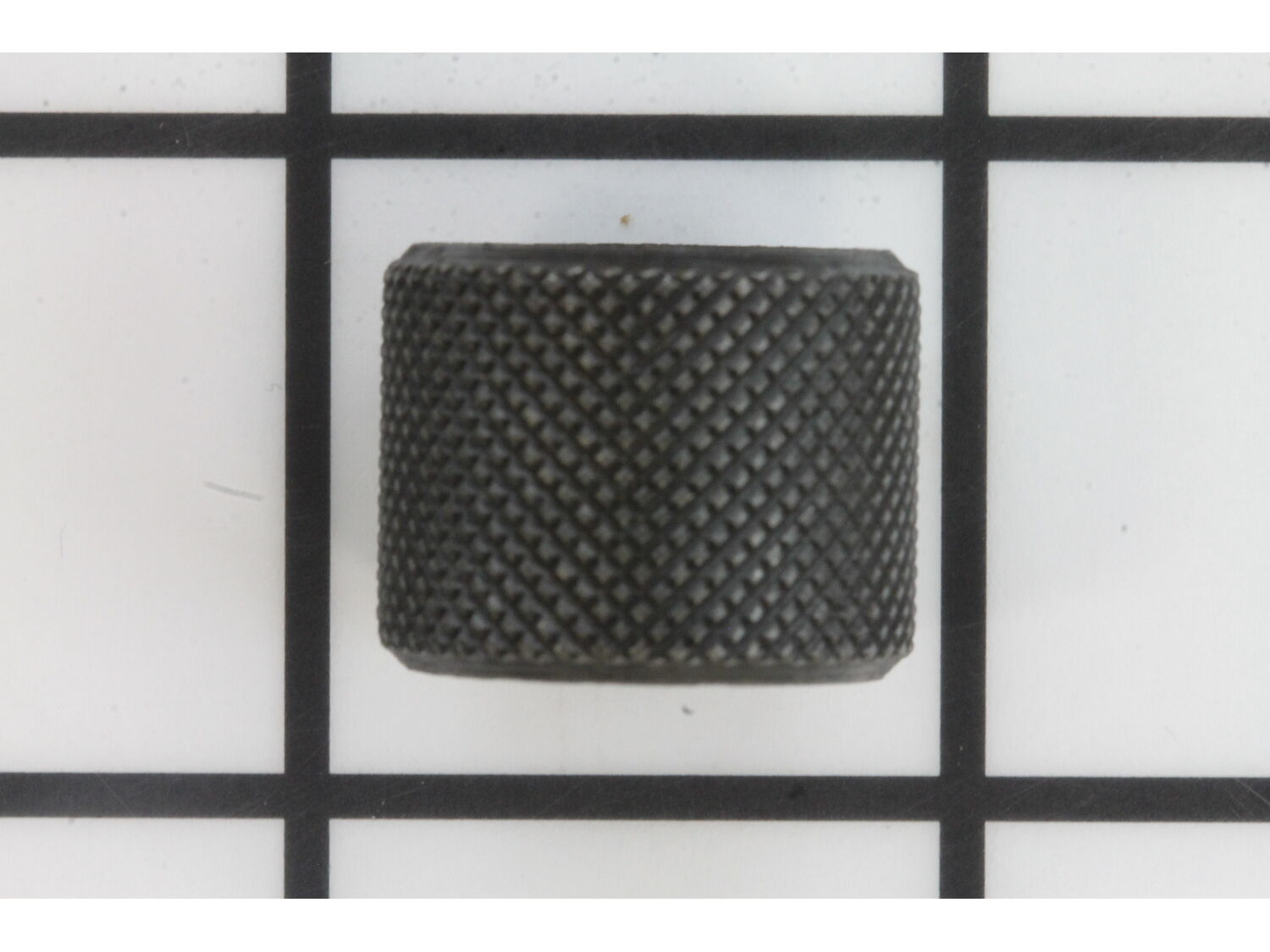

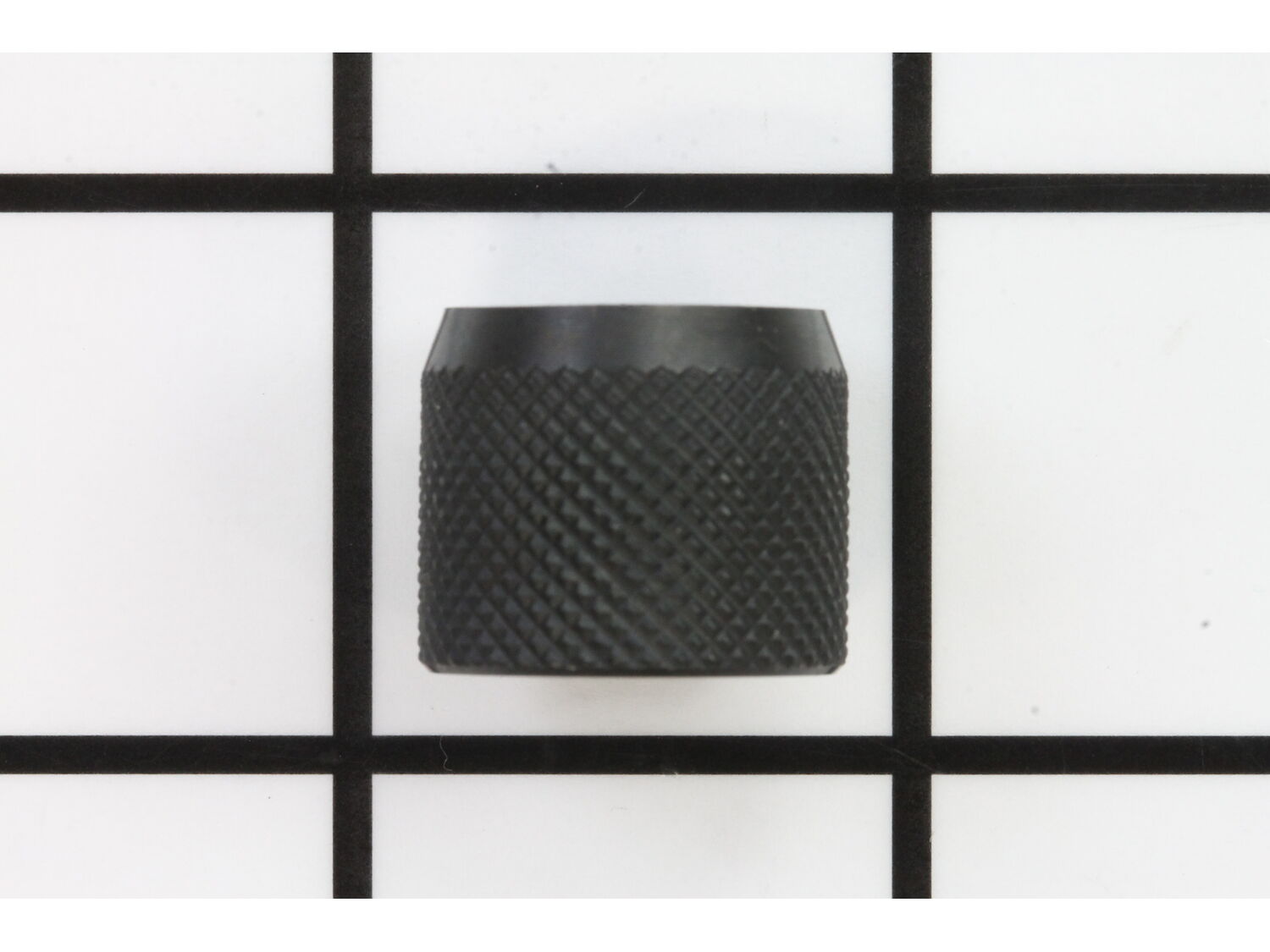

This is a genuine OEM part. The DeWALT sleeve is constructed of metal, and is compatible with several impact drivers. This component is fitted in the nose cone, between the spring and washer. The sleeve secures the anvil assembly and the spring. This part is sold individually. A hex key and a screwdriver may be helpful in the repair.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy & fast
The items arrived fairly quickly and in good condition. The packaging is very adequate. Thank you very much!
Iglobal - October 4, 2019
Verified Purchase
★★★★★
★★★★★
Excellent
It was fast shipping and excellent quality
Guest - November 18, 2019
Verified Purchase
★★★★★
★★★★★
Easy repair Great part
The was in great part ,arrived quickly and fit work
Guest - February 17, 2020
Verified Purchase
★★★★★
★★★★★
Found the correct parts
Had to replace many small parts on a DeWalt impact drill. Quickly found all the correct parts on the site thanks to the excellent parts drawings. Parts arrived quickly and he order was correct and complete. My DeWalt tool is back in service.
Guest - November 23, 2020
Verified Purchase
★★★★★
★★★★★
Impact driver parts
Parts arrived very quickly and were exactly what I ordered
Perry - July 25, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Pull the case apart disconnect wires from brush assy, replace brush assy attach wires.
Pop the C clip remove the washer, sleeve and spring. The ball is gone by now. replace ball, spring, washer and C clip. I take the opportunity while appart to clean the inside of the case of old dirt and grease. I re grease the gear assy in the nos
... Read moree cone.
Remove the hog ring with a small screwdriver
Remove the washer
Remove the compression spring
Remove the sleeve
Remove the steel ball
Remove the broken spring
Install the removed parts in reverse order
I located your you tube video. It made the repair go much easier and faster than without it. Here is the copy of it for those of you that have the same problem.
1. Pulled snap ring with pick
2. Pull sleeve, spring, washer off. Don\'t drop the ball I have a dozen hiding on my garage floor.
3. Remove broken spring.
4. Clean parts with WD 40 wipe clean.
5. Install new spring.
6. Install ball make sure your on top of spring.
7. Slide sleeve back over anvil
8
... Read more. Install spring, washer and snap ring. this is sometimes tricky start at the flat opening on anvil using a small blade screw driver work the ring around till it falls back into the recess.
