Part Location Diagram of 1005643-00 DeWALT Bellows
See part 14 in the diagram
( Grid squares measure 1x1 inch )

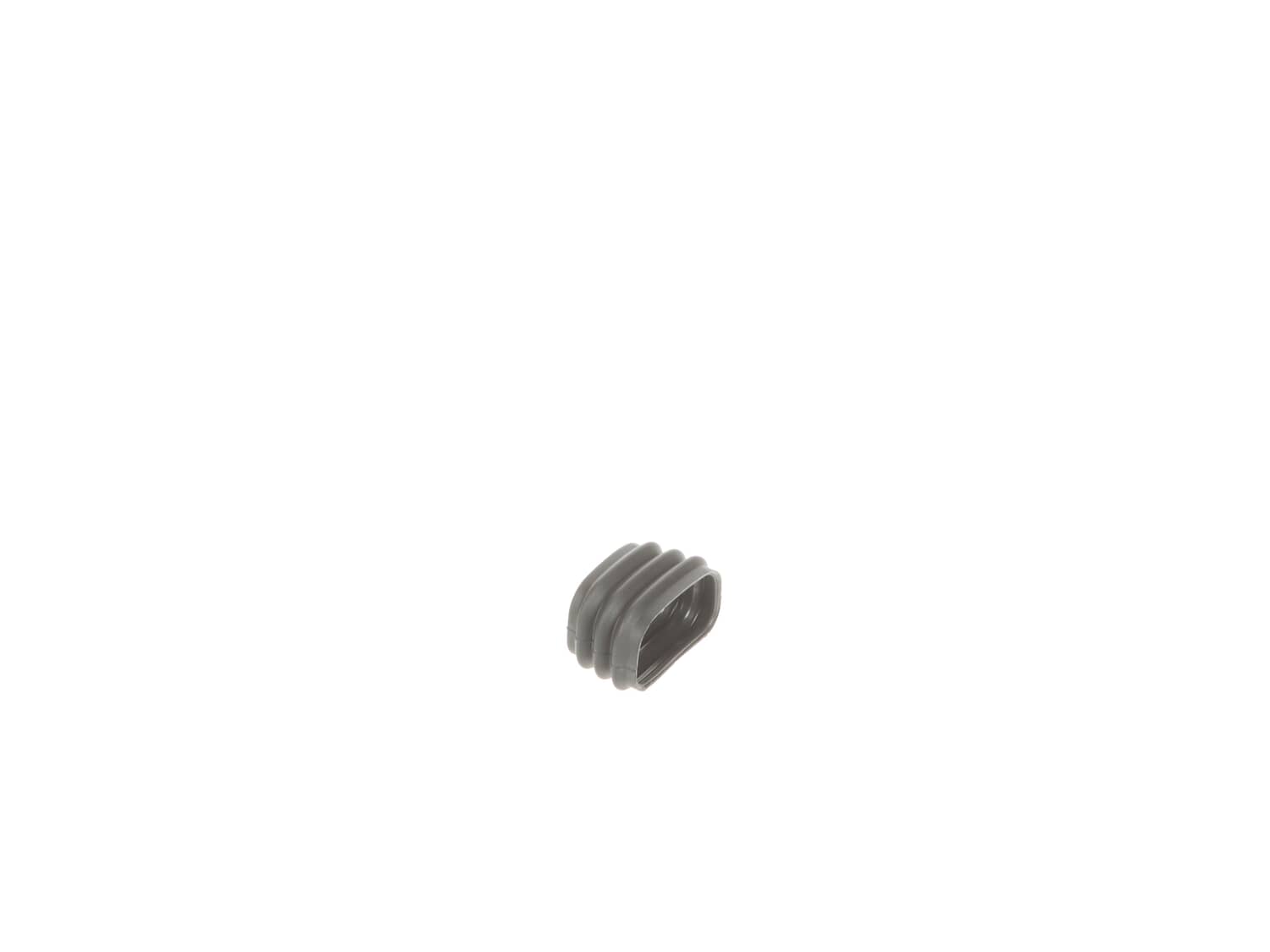

Bellows 1005643-00

Manufactured by:
DeWALT
ERP Number:
ERP10165420
Part Number:
1005643-00
Original Equipment Manufacturer ?
  Works with your model  D25901!
$8.31
On Order
  Works with your model   D25901!

Product Description

?

This is an OEM part sourced directly from the manufacturer. The bellows is found in demolition hammers from DeWALT. This part is made of flexible plastic, and is used to cushion the handle to provide a more comfortable grip when the hammer is in use. You may require a screwdriver when replacing this part. There are two bellows found in the machine. You may wish to replace them both at the same time for even wear. This item is sold individually.

Troubleshooting

This part works with the following brands:
  • DeWALT
This part works with the following products:
  • Hammer

Model Cross Reference

This part works with the following models:
ERP Number: ERP10165420
Manufacturer Part Number: 1005643-00
Brand Model Number Description
DeWALT D25901 Hammer Drill - Demolition Hammer
DeWALT D25901K Hammer - Demolition Hammer
DeWALT D25901K-AR Hammer - Demolition Hammer
DeWALT D25901K-B2 Hammer - Demolition Hammer
DeWALT D25901K-B3 Demolition Hammer - 10 Kilo Sds-Max Demolitio
DeWALT D25902K Hammer - Demolition Hammer
DeWALT D25941 Hammer Drill - Demolition Hammer
DeWALT D25941K-AR Hammer - Demolition Hammer
DeWALT D25941K-B2 Hammer - 12kg Demolition Hammer
