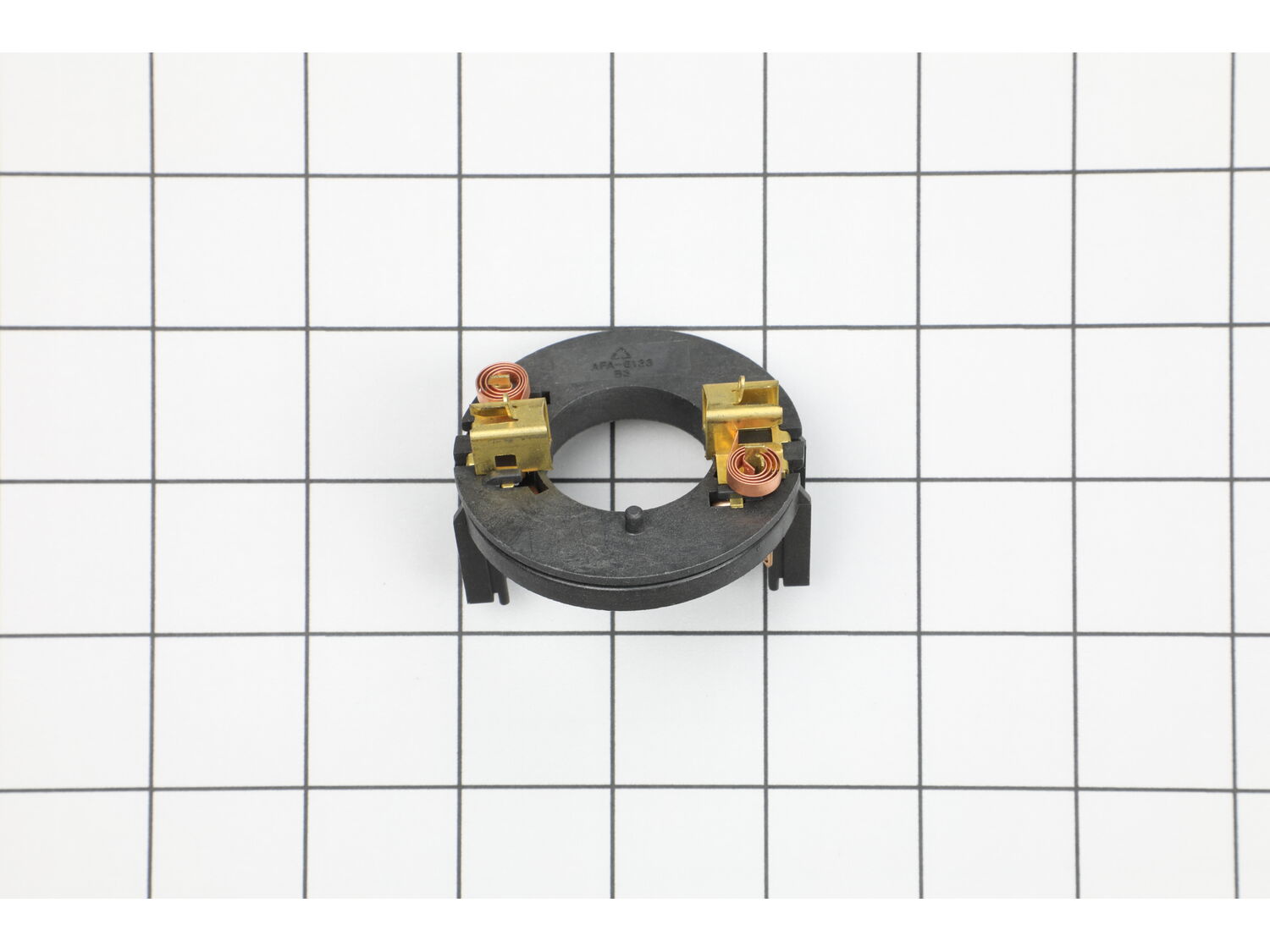

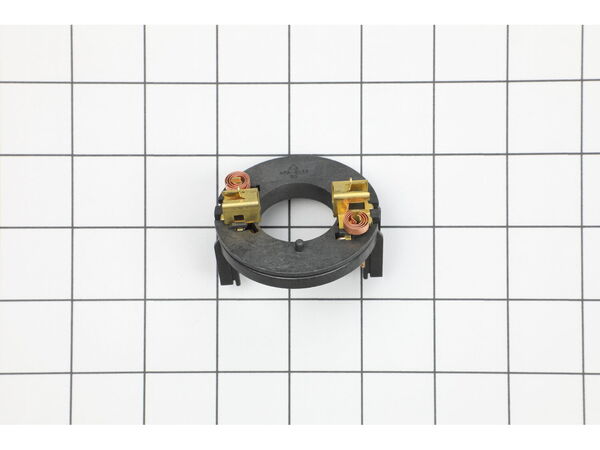

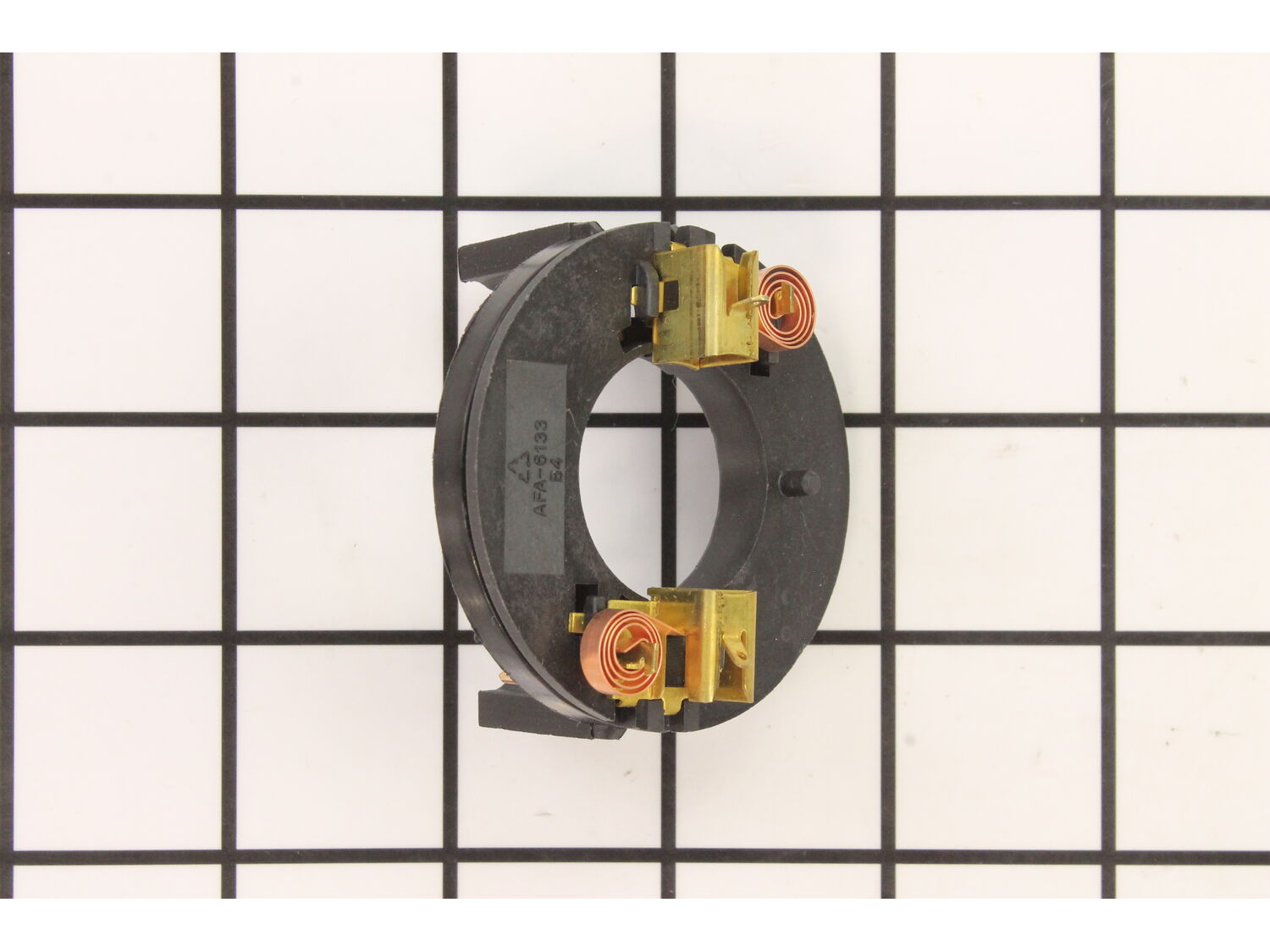

It is an authentic manufacturer-sourced replacement brush ring assembly which is specially designed for use with Porter Cable and DeWALT hammer drills. This part holds carbon brushes around the armature to provide a stable and a safe contact, over time components may wear out and begin to fail eventually requiring a replacement. This high-quality assembly is sold individually, keep in mind it consists of a durable plastic ring, two metal brush holders with attached spring. Please note that the carbon brushes are sold separately.
Troubleshooting
This part works with the following brands:
Porter Cable
This part works with the following products:
Hammer Drill
Part# 90540127 replaces these:
90540127,
