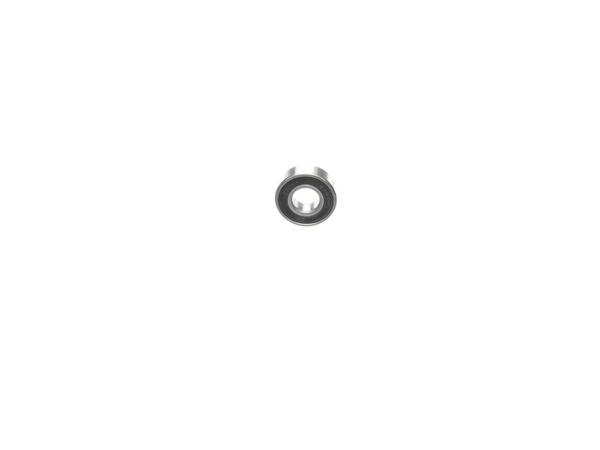

This is a genuine OEM replacement part, it is sold individually. This Ball Bearing is sealed on both sides. • Ball bearings are used to reduce friction between rotating parts. The balls or rollers take the load and spin, distributing the weight evenly while the minimal contact area of the ball reduces friction. • This reduces wear on the tool and allows it to run smoothly. • Bearings experience constant wear when the tool is in operation from pressure, heat, vibration and friction. Because of this, many Bearings need periodic maintenance or replacement.
took the sander apart to get to both bearings on the motor. used a puller to pull bearings off shaft. put it back together. The reason I fixed this sander is its one of the old 1/2 sheet vibrator sanders that you can\'t buy anymore, but I use them a lot for my wood working projects.
ò Remove sanding pad
ò Use torx bit ( I think a T20) to remove bearing assembly
ò Bearing is sandwiched between bearing retainer halves and requires you to lightly tap together with a small hammer.
ò Reverse to assemble
ò NOTE New screws are self tapping
Remove the motor from the gear case, Remove motor leads from the switch, remove the the brushes. Remove the back motor cap. Remove the screws from the motor housing, then using a mallet tap on the gearcase to separate the housings. Remove the armature. Remove the retaining rings. I have a friend that let me use his arbor press to remove a
... Read morend install the bearings. (You can try a tool repair shop for this also.) Remove the old sleeve from the housing. and install the new one. Then install all of the parts in reverse order.
1. Flip saw over and remove the four screws that hold the plastic case onto the gear box. You may need to set the saw blade to 45 degrees to get good access
2. Remember to unplug the saw...
3. Remove the plastic case by pulling straight back
4. Remove the armature assembly by pulling straight back. You may need to rock i
... Read moret back and forth.
5. Remove the bearing using a bearing puller
6. Press the new bearing into place.
7. Put everything back in reverse order.
8. Say a prayer and then start the motor
Replacement parts site supplied the the list of parts needed to repair the malfunction of my sander, they also described the malfunction. It doesn\'t get any better.
Removed the armature
Pulled the old bearings
Installed new bearings
Polished the commutator
Reinstalled the armature
Reinstalled the case
Made a test run to verify the repair
