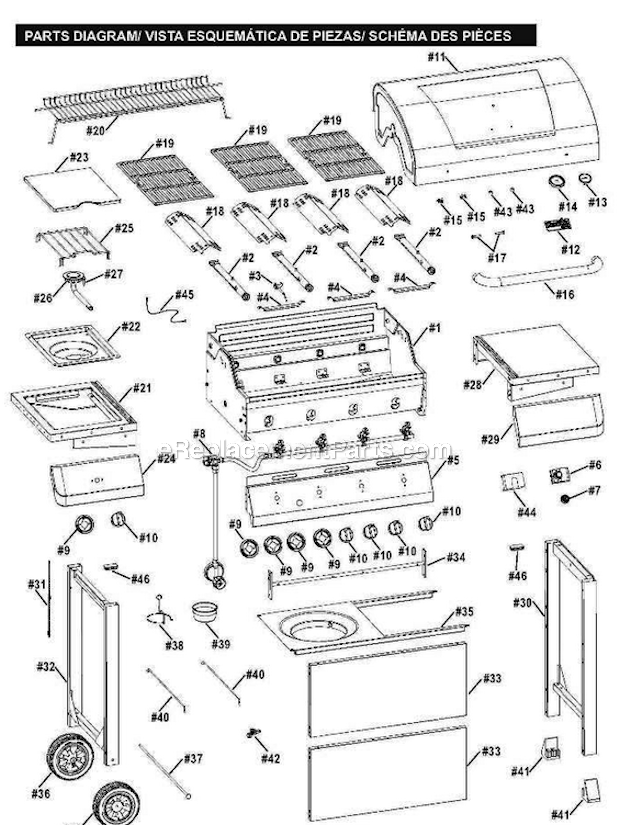

Part Location Diagram of G432-D200-W3 Char-Broil Firebox

See part A-1 in the diagram

Firebox G432-D200-W3

Manufactured by:: Char-Broil
ERP Number:: ERP12011746
Part Number:: G432-D200-W3

$105.59

Delivers in 3-5 Business Days!

A Bit Difficult

1- 2 hours

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:

Char-Broil

This part works with the following products:

Grill

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(1 rated repair) ?

< Prev
1
Next >

Sort by:

Heat shield on firebox was falling off. Burners were rusting too.

James from HOT SPRINGS VILLAGE, Arkansas

3 of 3 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 1- 2 hours
Tools:: Pliers, Screw drivers
Parts Used:: 80029715, G432-D200-W3, G432-Y700-W1, G432-0078-W1

1. Removed cover
2. Removed grates, flame tamers and burners.
3. Disconnected propane
4. Removed two shelves and igniter
5. Removed old fire box
6. Installed new firebox
7. Connected/replaced items in 4 thru 1 in that order
