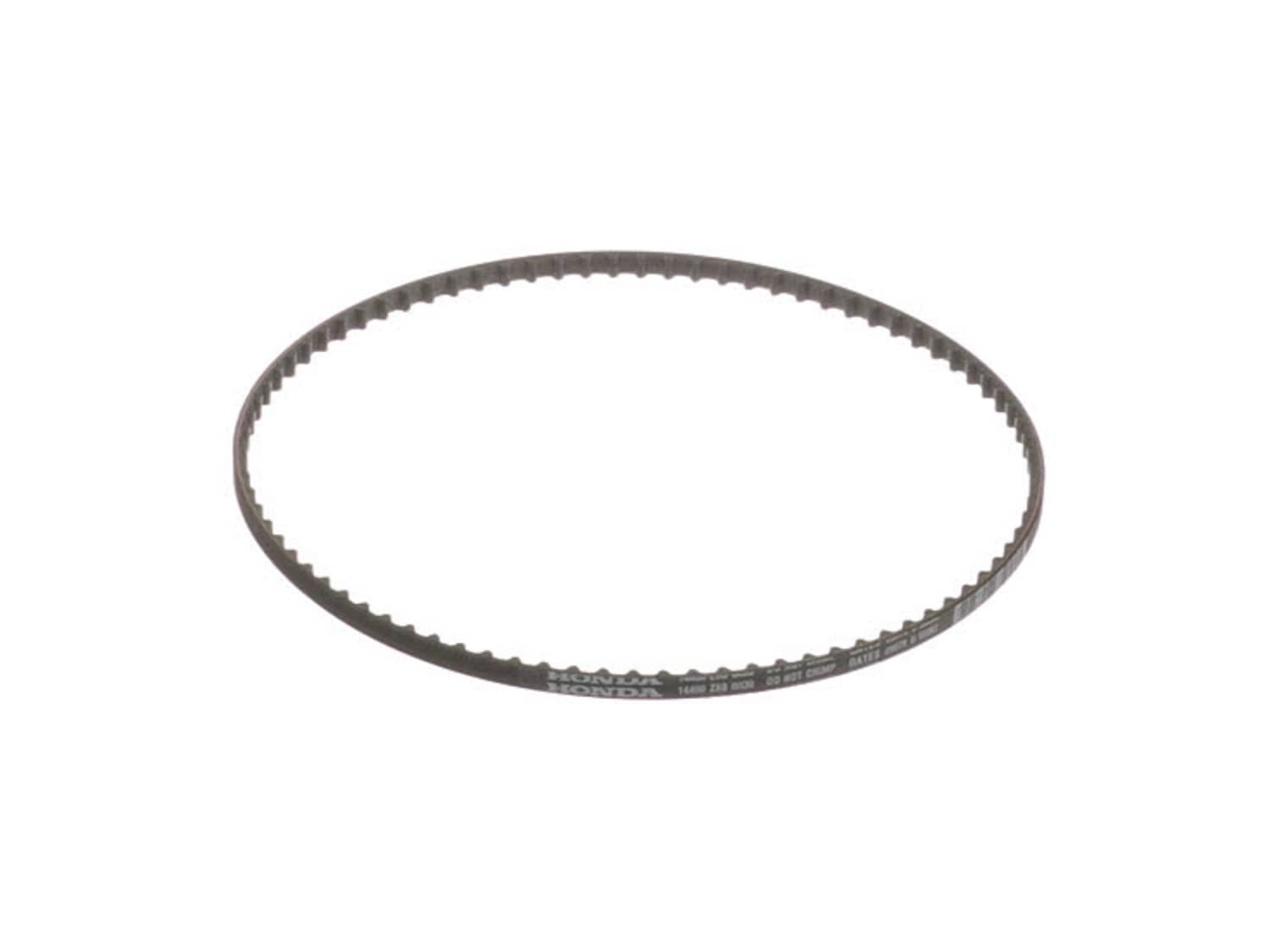

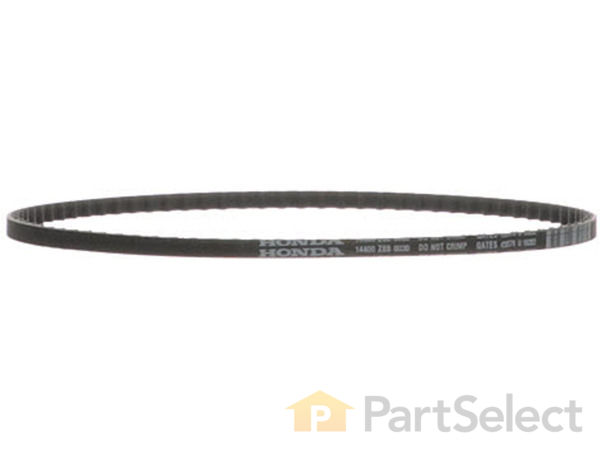

This is an authentic Honda replacement part that has been OEM sourced to ensure a high-level of quality. The timing belt is intended to be used with small engines. This used to link the crankshaft and the camshaft pulley to ensure the two parts rotate in unison. This item is available as an individual replacement part. A socket ratchet set, wrench set, torque wrench, flat-head screwdriver, small nose pliers, tubing clamps are some tools that may be needed to install the belt.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Honda push mower repair
Several parts were needed. If it weren't for the help from the saleswoman I ordered from I wouldn't have known what to order. She took her time, looked all parts up that were necessary and checked to make sure everything was correct. I give erelplacementparts a stellar review
Guest - November 7, 2020
Verified Purchase
★★★★★
★★★★★
Best place to find all of your engine parts.
Part arrived quickly.
Guest - October 23, 2021
Verified Purchase
★★★★★
★★★★★
Honda
The parts fit perfectly and the power washer is running great
David - June 18, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
The motor had sticky valves so I had to replace them.
1) Split the motor in half and removed the valve cover
2) Removed the crankshaft and piston
3) Replaced the intake valve
4) Cleaned the shaft of the exhaust valve (should have bought a new one)
5) Installed the piston checking that the ring gaps were stagg
... Read moreered
6) Installed the crank shaft adding the new timing belt
7) Installed the new cam shaft and adjusted the timing
8) Used gasket maker and bolted the two motor halves together.
9) Installed the valve cover
Read less
Did you find this story helpful?
Thank you for voting!
Overhead cam gear was broken on GC190 Honda motor on power washer
Removed valve cover and split crankcase clamshell to remove broken gear parts. Cleaned All gaaket surfaces replaced cam gear and timing belt....re assembled. Motor started and ran perfectly.
I replaced the timing belt, the upper cam gear and the 2 seals, one on the engine and one on the pump. One trick I learned was to install the timing belt on the crank gear and cam gear before I put the 2 halves on the engine back together. It will make the job easier because the belt is very tight when new and installing it on the cam gea
... Read morer was impossible. hope this helps
Disassembled engine by splitting case. Removed rod cap, removed crankshaft and removed piston and rod. Removed and replaced bent exhaust valve. Replaced cam gear and belt and reassembled engine.
1. Took off broken blades, blade holder and drive belt pulley. This required a two jaw puller due to bend in shaft.
2. Open up crankcase. Many steps involved. Followed youtube videos. Detailed videos exist.
3. Take out piston. Found lots of black soot on piston, crankcase and valve seats. Apparently due to mistiming from
... Read more running engine with bent crankshaft since this is a pretty new engine always running smooth before accident.
4. Use carburetor cleaner and lots of work to clean piston and case. Put in new valves and use grinding compound to clean valve seats and \"break in\" valves.
5. Install new crankshaft (also from ereplacement) and all new parts related to timing. The old ones looked fine but did not want to have to open up again in case there was some damage not visible.
6. Assemble everything. Again lots of steps. Take pictures when disassembling, label parts and use youtube videos. A mechanic friend lent me a puller and a torque wrench.
7. New blade holder and blades.
8. Pull starter cord. Starts right off. Runs very smooth. Cuts very well. Success but it is a major project for amateurs. I am retired thus have the time and love this Honda lawnmower. Kind of expensive because of all the new parts but still cheaper than a new Honda and I have only had it a couple of years. Now it\'s practically new.
