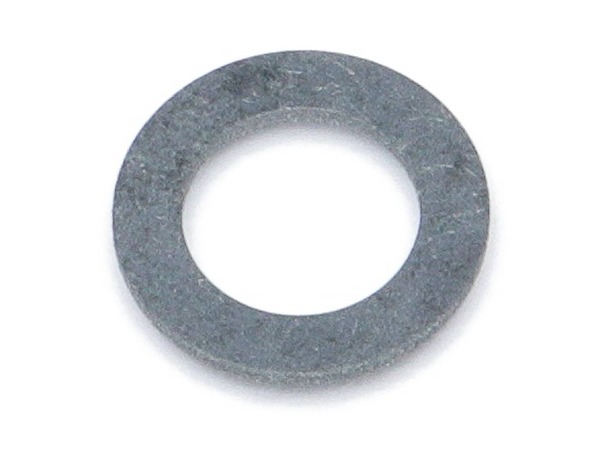

This item is an OEM sourced replacement part that is intended to be used with small engines for snowthrowers and riding lawnmowers. The seal is used as a replacement of an original part from Briggs & Stratton or Toro machines. This item is used to prevent oil or fuel leaks between two different part assemblies. The item can have different applications depending on the model of the engine or machine. This seal is sold individually.
Removed float bowl and replaced gasket and seal
Parts that were ordered and delivered by ereplacement parts were a perfect fit and fixed my ongoing problem!
Simply removed the float bowl. All the parts that I that I needed to replace were right in sight, which made the repair very easy. Leak is gone.
Did you find this story helpful?
Thank you for voting!
Dried ethanol gas clogged every port in carburetor, engine mounts broken, exhaust noisy.Good thing the generator made in 1997 was given to me, only cost $250 in parts to make operational again.R&R
R&R carb,dis-assemble for cleaning. Main jet corrosion too severe to remove jet, necessary to push stiff single-strand wire through jet to open fuel path. Re-assemble carb with new bowl-bolt gasket,install fuel filter, add gas to tank, pull handle w/choke closed until started. After cool-down, removed muffler/lock-ring and installed new m
... Read moreuffler w/arrestor , quiet like-new now...bring on that Hurricane whatever it\'s named...I have the power now...and no more Ethanol in my fuel,Thanx.
1. Removed the breather assembly.
2. Removed the carburetor.
3. Removed the intake manifold.
4. Replaced the manifold and the gasket.
5. Reinstalled the carburetor and the gaskets.
6. Reinstalled the breather assembly.
7. Runs fine!
Did you find this story helpful?
Thank you for voting!
Leaking gas from fuel line and sealing washer was missing.
1. Drained the fuel.
2. Took out the float bowl bolt.
3. Put the washer on and replaced.
4. Removed the gas tank and the fuel lines.
5. Cut the fuel lines to the proper sizes.
6. Installed the fuel filter and the fuel line clamps.
7. Installed the fuel line to the carb and then to the fuel tank.
Needed to replace the old gas bowl \'gasket\' on a Briggs and Stratton engine by turning the carburetor upside down to make sure the gasket fits correctly.
1- Removed the flywheel cover.
2- Removed the carburetor bolts and turned it upside down.
3- Removed the old gasket and replaced with new gasket.
4- Replaced
... Read more the old gas bowl making sure everything lined up to avoid crimping the gasket.
5- Replaced all other parts.
Engine now running smoothly..!
Read less
Did you find this story helpful?
Thank you for voting!
Oil was filling the crankcase. Was slipping when you but when it was running it was slipping when we were driving
Dan from Pflugerville, Texas
1 personfound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Remove the air filter in carburetor. Cleaned all parts including needle and seat. Replaced gaskets and air filter install carburetor. Installed plug period tilted engine tilted mower at a new place friction ring on transmission. At a gas with stable.
1 Disconnect and plug, or shut off fuel line to carburetor from fuel tank.
2 Remove cap screw holding float bowl to the bottom of carburetor and remove bowl.
3 Remove old gasket from carb body and replace with new gasket.
4 Place new float bowl on bottom of carb and install cap screw with new sealing washer, tighten cap
... Read morescrew, and you are finished.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9294812
Manufacturer Part Number: 692255
