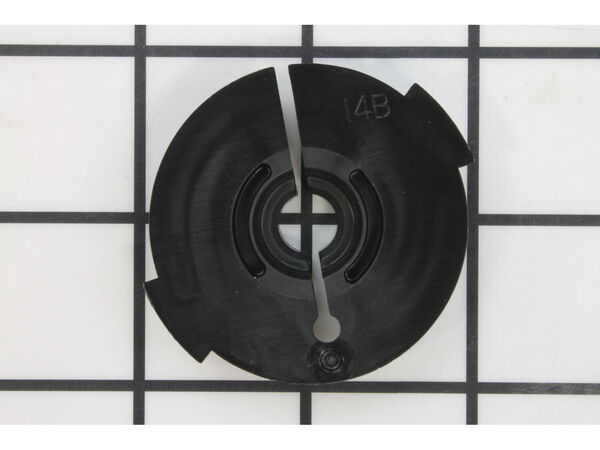

This is a genuine OEM sourced replacement part. It is designed for use with lawn and garden engines. It is an important part of the starter assembly that is used to crank start the unit. Please note shroud/housing, starter pulley, starter spring, grip, the pull rope and the hardware are all sold separately. This pawl plate is made out of plastic and it is sold individually. To complete this repair you would need a wrench.
Remove the engine shroud and then remove three bolts holding the gas down. Loosen another bolt left rear & down of the gas tank and you can tilt the gas tank back w/o removing it completely. Then remove another bolt holding the oil fill tube, pull up slightly and turn to the side so that it clears the engine cover. Remove 4 bolts holding
... Read morethe engine cover/pulley spring assembly and lift it up slowly(make sure you recall how it is mounted over some engine flanges). Remove a bolt holding down the Pawl friction plate over the pulley spring assembly and lift up on the assembly carefully as it contains the recoil starter spring. I then discovered that my new pulley spring assembly had the anchoring loop (the one that anchors on the center tab of the engine cover) looping to the right. My original spring looped to the left. I then had to use two needle nose pliers to carefully grab the spring loop and bend it around to the left making a new anchoring loop. This was very time consuming as you have to be careful of the spring not uncoiling. Once you done the new loop, bent the spring loop towards the center of the coiled spring so that it can catch on the center tab of the engine cover. Once you insert the pulley spring assembly, turn it counter clockwise until tight and then turn it back one turn to release some tension. You have to stick a small screwdriver in-between the pulley assembly and one of the slots in the engine cover to keep the spring from uncoiling. You them align the rope hole in the pulley with the rope hole in the engine cover and insert the new rope, grab it with needle nose and pull it, giving you some slack to tie the knot. You can now release the rope slowly (make sure you have the pull rope handle attached to the other end of rope) until the rope winds completely. You now attach cover back onto engine, making sure it fits correcting onto its location. You can now reattach all other parts in reverse of how you took them off. If you have a digital camera or phone, take pictures before or as you unassemble the engine, so you can remember what goes where.
Removed engine cover, gas tank and pull starter assembly.
Disassembled pull starter assembly.
Installed new parts in starter assembly and rewound starter rope.
Reinstalled pull starter assembly, gas tank and engine cover.
The job is pretty simple, if you donGÇÖt pop the spring off. Even so itGÇÖs not to hard to rewind the spring if you just turn it upside down and rewind the spring back into its housing. The one problem I had was that I had a housing screw that had striped out and when you pulled on the rope it would not rewind. Once I figured out that the
... Read more loose screw would let the housing pull up and would screw up the dog ears. Once I tapped out the screw so that it would get tighten everything worked fine.
Read less
Did you find this story helpful?
Thank you for voting!
Pawl friction plate and friction spring dislodged and and got crushed.
1. Removed the starter housing.
2. Removed the broken parts.
3. Pulled the starter rope to its fullest extent locking it in place with vise gripes.
4. Reinstalled the starter housing on the mower and released the vise grips to allow the rope to retract.
5. One pull on the starter rope and it started on the first pu
... Read morell.
Read less
Did you find this story helpful?
Thank you for voting!
Pawl plate badly worn and I unknowingly/accidentally unwound spring upon further inspection
1.) Disconnected throttle & choke linkages.
2.) Unbolted engine-recoil housing from engine.
3.) Removed starter rope from pull handle.
4.) Unscrewed pawl friction cover.
5.) Removed pulley ring assembly and pawls.
6.) Inserted and coiled new rope on pulley.
7.) Assembled and completed steps in reverse o
... Read morerder starting with step 5.
1) Removed recoil starter cover.
2) Removed broken pawls, friction plate and pulley.
3) Installed new pulley, note: be very careful indexing the spring tip into the housing.
4) Installed new pawls ad friction plate. 5) Mounted assembly back onto engine
1. Removed all the extra sheetmetal from the top end of the engine. (2) Removed the rope and spring assy and examined the pawl and pawl plate.The rope was not broken so I placed the new pawls and the pawl plate and also the new \"C\" ring. (3) replaced the spring assembly and readjusted the rope and fired it up. Starts and runs like it us
... Read moreed to. I have to say what made this job an easier job then I thought it would be, was reading a ton of the trouble reviews so that I already had some idea what to expect. This was the first time I did this kind of repair.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9074726
Manufacturer Part Number: 692299
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
