This belt is a genuine Troy-Bilt replacement part, it is not an aftermarket alternative. It is a high quality item designed for use with edgers. This is the main belt that drives the blade. Over time belts tend to wear out and stretch eventually requiring replacement. Please note, one rubber belt is included per order. To complete this repair you will need a set of wrenches. Always clean the pulleys before installing the new belt.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
worked as expected
A little more difficult to replace than expected, some disassembly but in all not hard to replace.
Guest - June 13, 2019
Verified Purchase
★★★★★
★★★★★
Easy to find
Order was easy, delivery was prompt. Part were correct and work great. Only downer was I discovered manufacturer did not originally assemble the product correctly causing the issue. Product work great now.
Guest - June 23, 2020
Verified Purchase
★★★★★
★★★★★
It fit perfectly
Fit perfect arrived in time
Guest - August 16, 2021
Verified Purchase
★★★★★
★★★★★
Great part
My edger works better than when it was new
Guest - September 3, 2021
Verified Purchase
★★★★★
★★★★★
perfect fit.
tough part. looks like it'll last quite some time.
Guest - July 5, 2023
Verified Purchase
★★★★★
★★★★★
The part was correct, installed and is working excellent as brand new.
The part was correct, installed and is working excellent as brand new.
Guest - October 19, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Remove Belt cover #45
2. Remove nut securing blade. #43
3. Remove blade. #42
4. Remove Blade Guard. #40
5. Remove driven assembly secured by three torx screws thru plastic housing. #26
Now with the belt pulley assembly has been separated from the unit remove the 6mm
bolt securing the pulley to t
... Read morehe shaft. #32 This bolt will be difficult to turn as it is secured with Loctite.
6.Remove pulley from shaft.
Reverse procedure to reassemble don\'t forget the Blue Loctite on the pulley securing bolt and keeping in mind to fit the belt over the pulley and drive pulley on assembly first, and also The Idler pulley will need to be depressed while lining up the spindle plate to the spindle spacer.
Removed belt cover , removed pulley and belt, cleaned out area and cover. Installed parts. Everything went fine and the parts were the correct pieces needed. Back to work I go...... and I must say I was worried about delivery time 5-7 days. The order was here in 2 days good job team e-replacement
1. Remove screws for housing.
2. Take photos to know where they went.
3. Take photos before removing damaged parts.
4. Replace new parts place belt back from photos.
5. Remove all dirt and damaged parts.
6. Replace screws.
1. Remove the cover plates to the belt and the pully.
2. Removed the bolt holding the pully.
3. Replaced worn pully and installed new pully.
4. Removed old belt and replace with new belt.
5. Replace all cover plates.
No special instructions needed work was straight forward and simple.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP19285100
Manufacturer Part Number: 754-04149
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

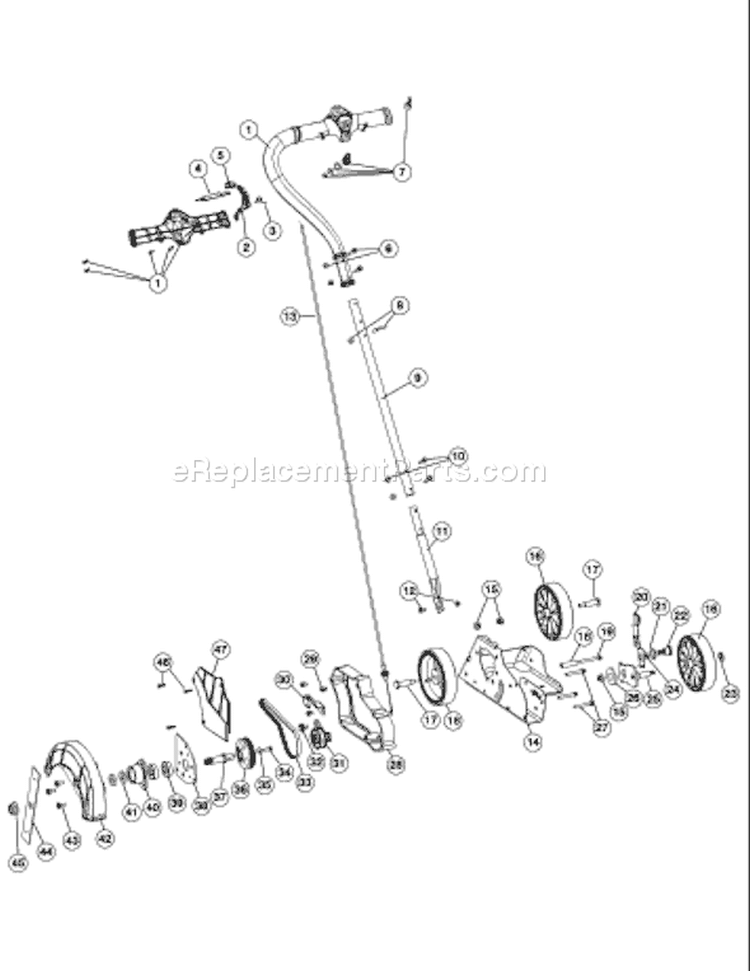

_(2007)_WW_3.gif "Part Location Diagram of 754-04149 Husky BELT")
