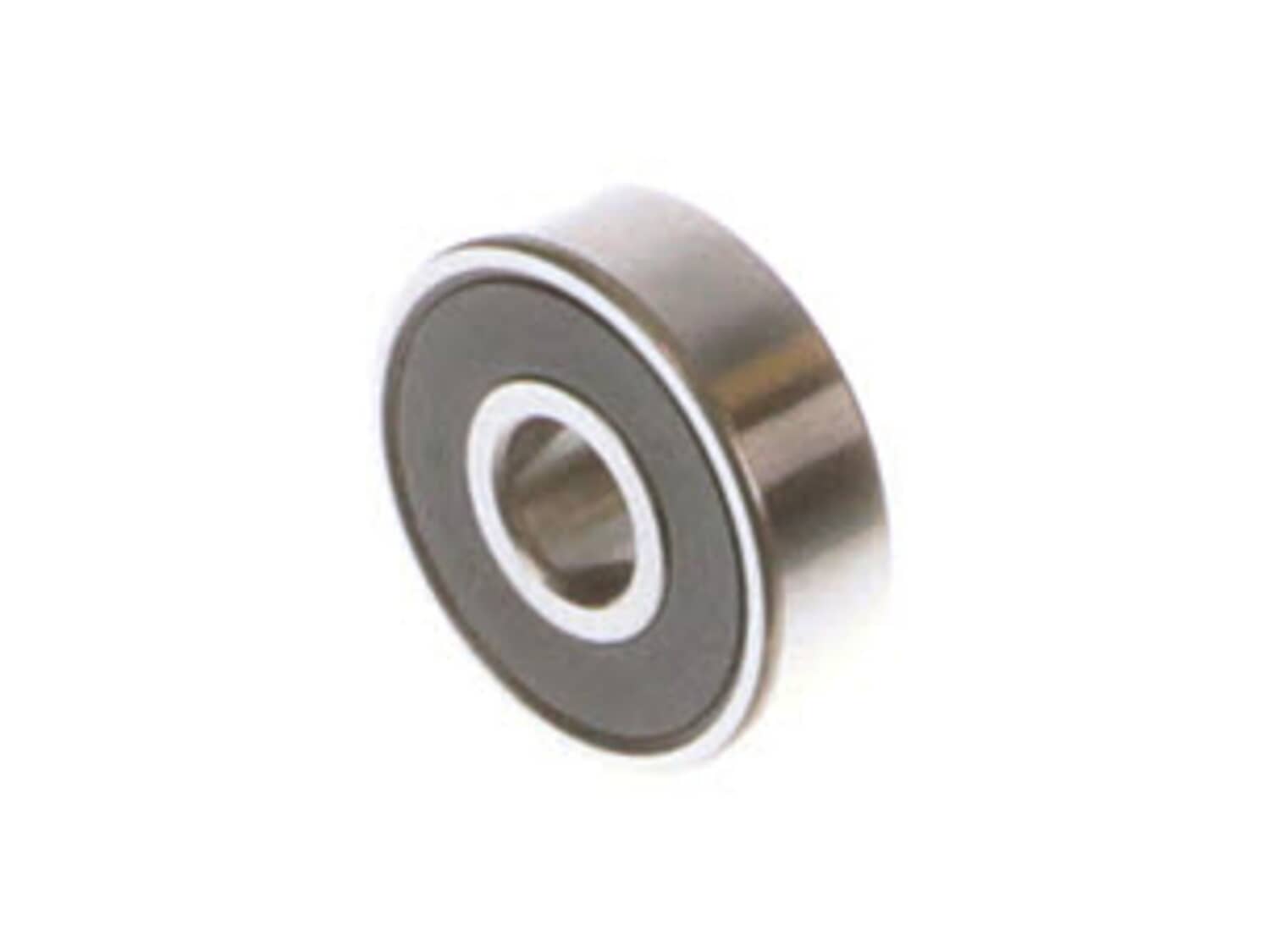

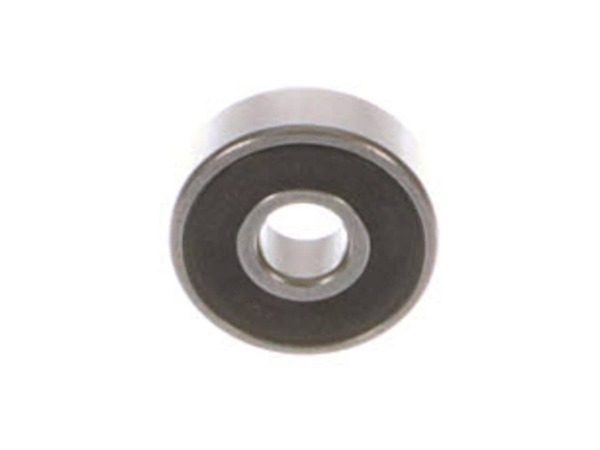

This is a Ball Bearing that is sealed on both sides. This is a genuine Makita replacement part that is sold individually. • Ball bearings minimize friction between 2 parts in your tool that would otherwise spin and rub against each other. The balls or rollers take the load and spin, distributing the weight evenly while the minimal contact area of the balls reduce friction. This reduces wear on the tool and allows it to run smoothly. • Bearings experience constant wear when the tool is in operation from pressure, heat, vibration and friction. Because of this, many Bearings need periodic maintenance or replacement.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Fixed it
This part fit perfectly for my old grinder. Glad to have a reliable source for parts to prevent sending my old tools to the landfill.
Guest - July 11, 2020
Verified Purchase
★★★★★
★★★★★
3 bearings
I bought 3 bearings for my hand grinder. They were the exact parts I needed at a good price.
Jeffrey - October 12, 2020
Verified Purchase
★★★★★
★★★★★
Makita grinder motor bearings
They were spot on and will get me back to my project
Guest - December 4, 2020
Verified Purchase
★★★★★
★★★★★
Exact fit
Dropped right into place easy fix
Guest - October 4, 2021
Verified Purchase
★★★★★
★★★★★
Correct parts
Was excited to get the Makita bearings,brushes, & dust shield. I like to buy original parts. After reassembling, the unit would not turn on. Upon inspection, I found the plastic switch lever end was missing (broken off). Tried to order one, only to find they are 'Obsolete - Not Available'. Now I have invested $40 in parts in grinder that I cannot use.
Guest - November 28, 2022
Verified Purchase
November 28, 2022
Hi Nicholas,
Thank you for your review. Please accept our apologies for this situation. We will be in touch with you shortly regarding your order.
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed bearing and insulation washer from Makita 4\" angle grinder.
These were worn out and melted into the plastic housing.
Cleaned up area for new bearing.
Used small plastic head hammer to install bearing onto shaft and carefully reassembled the armature assembly into the housing.
Greased up all gears and f
... Read moreinished the assembly.
This grinder was inherited from my father-in-law which he purchased in 1981.
It was used extensively, and now it is back in service.
These parts fit perfectly!
1. Separated the case halves.
2. Removed the motor armature.
3. Removed the bearings from the armature.
4.Replaced the bearings on the armature.
5. Cleaned the brush housing by removing the brushes and using compressed air cleaned the brush housing and replaced the brushes.
6. Cleaned the inside of the housin
... Read moregs and reassembled them.
7. Installed the missing grip.
8 Installed a new grind disk and tested.
9. Worked like a new one and the brushes did not spark a lot nor did the bearings vibrate and squeal.
Removed end cap, power cord, and switch. Removed guard, wheel shaft from gearcase, and removed gearcase. Removed motor brushes and rotor from main body of grinder. Had to use hammer, punches, and a small clamp to remove the old bearing. I also had to replace the main motor housing/body of the grinder and the switch holder due to they were
... Read more melted from the failed bearing. Had to swap motor windings to new housing which was a bit of a challenge to get brush wires hooked back up. Installed new washer and bearing. Reassembled with new switch holder and all other old parts. Works good as new now.
Read less
Did you find this story helpful?
Thank you for voting!
The carbon brushes and one of the bearing was spent (almost 15 years of use) and just decided to replace the other two
1. Removed the 8 screws
2. Pulled out the rotor and other parts and gave them a thorough cleaning with contact cleaner
3. Removed all the bearings with bearing puller and vise
4. Installed new ones with the ball joint press
5. Installed the carbon brushes backwards from how I removed them
6. Closed and screw
... Read moreed back the carcass
7. Just a note; IÆm a DIYÆer but was an Auto Technician and thatÆs why I had the puller, bench vise and ball joint press
The original plastic case had suffered some distortion from heat generated by the bad bearing. Upon removal of the motor from the case , the area in question had to be repaired in order to hold the bearing tight. I simply applied some jb weld to the needed spots, applied petroleum jelly to the new bearing and back of the motor shaft ( t
... Read morehis would keep the job weld from sticking to them and allow removal in the future) once dried it works like new again.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10141477
Manufacturer Part Number: 210025-8
