Remove gear head and armature in one unit, unscrew and remove armature, install new armature and screw back down. On main drive shaft, the drive gear is pressed onto the bottom of the main shaft, using a small two or three jaw puller remove gear, careful there is a spring on that shaft you don\'t want to loose, then press or tap the gear
... Read moreback on the shaft. then install the gear head and armature back into the case, it is easier to go ahead and remove the brushes then trying to push the brushes apart to get the armature to go back into place, once the gear head is back in place assemble the case, and reassemble the bit holder on the end and test the machine for proper function .
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP11877621

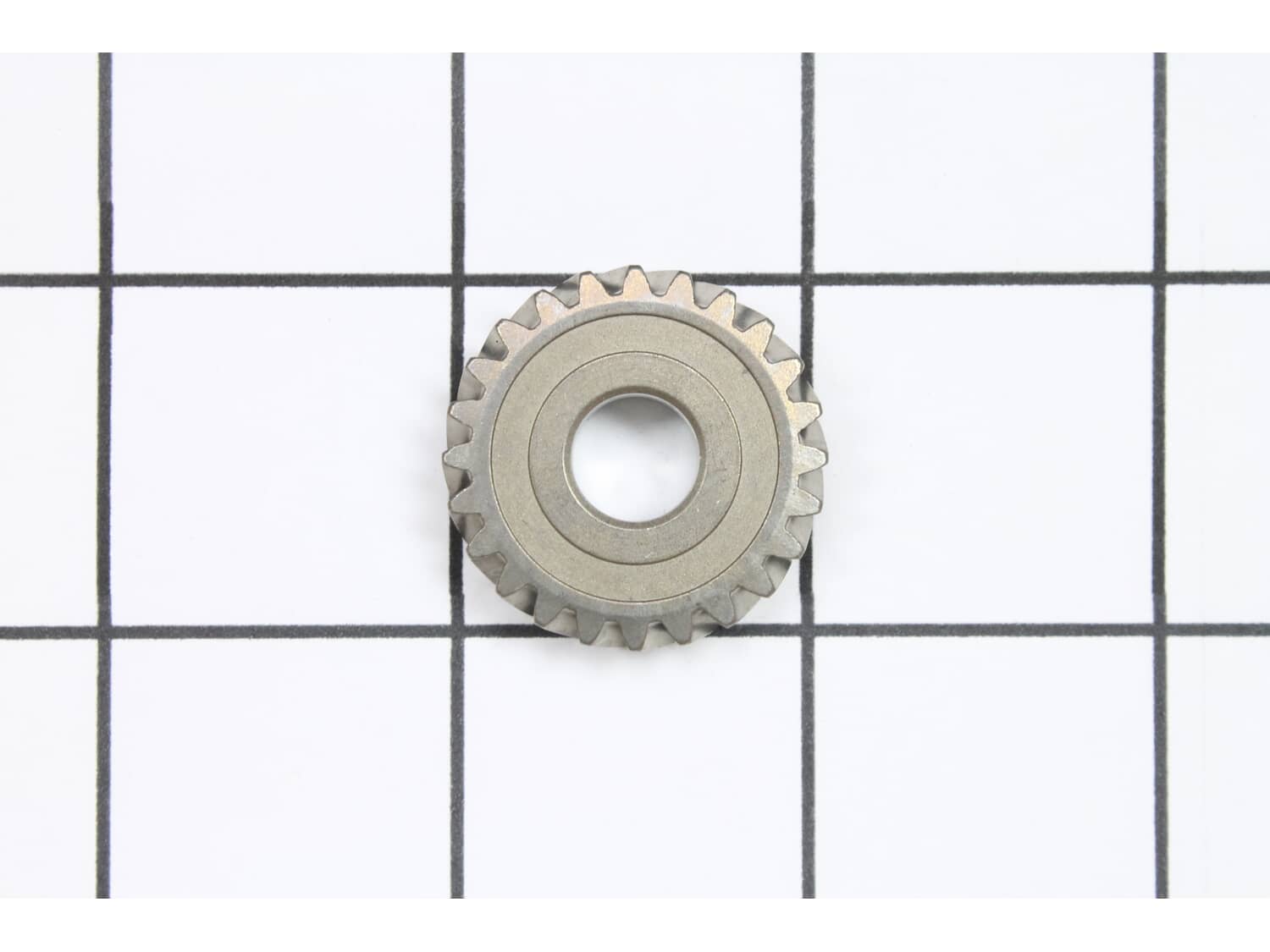

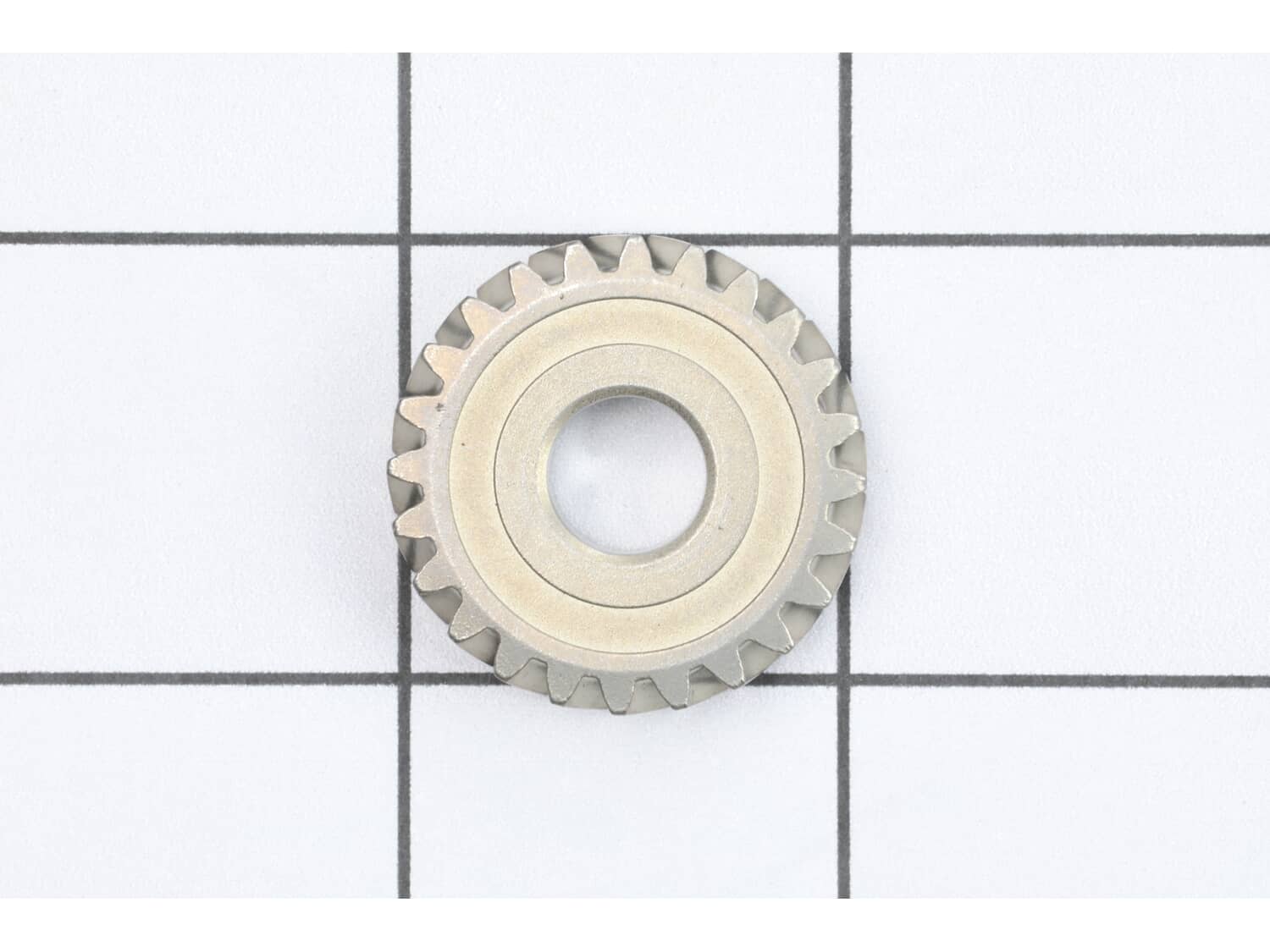

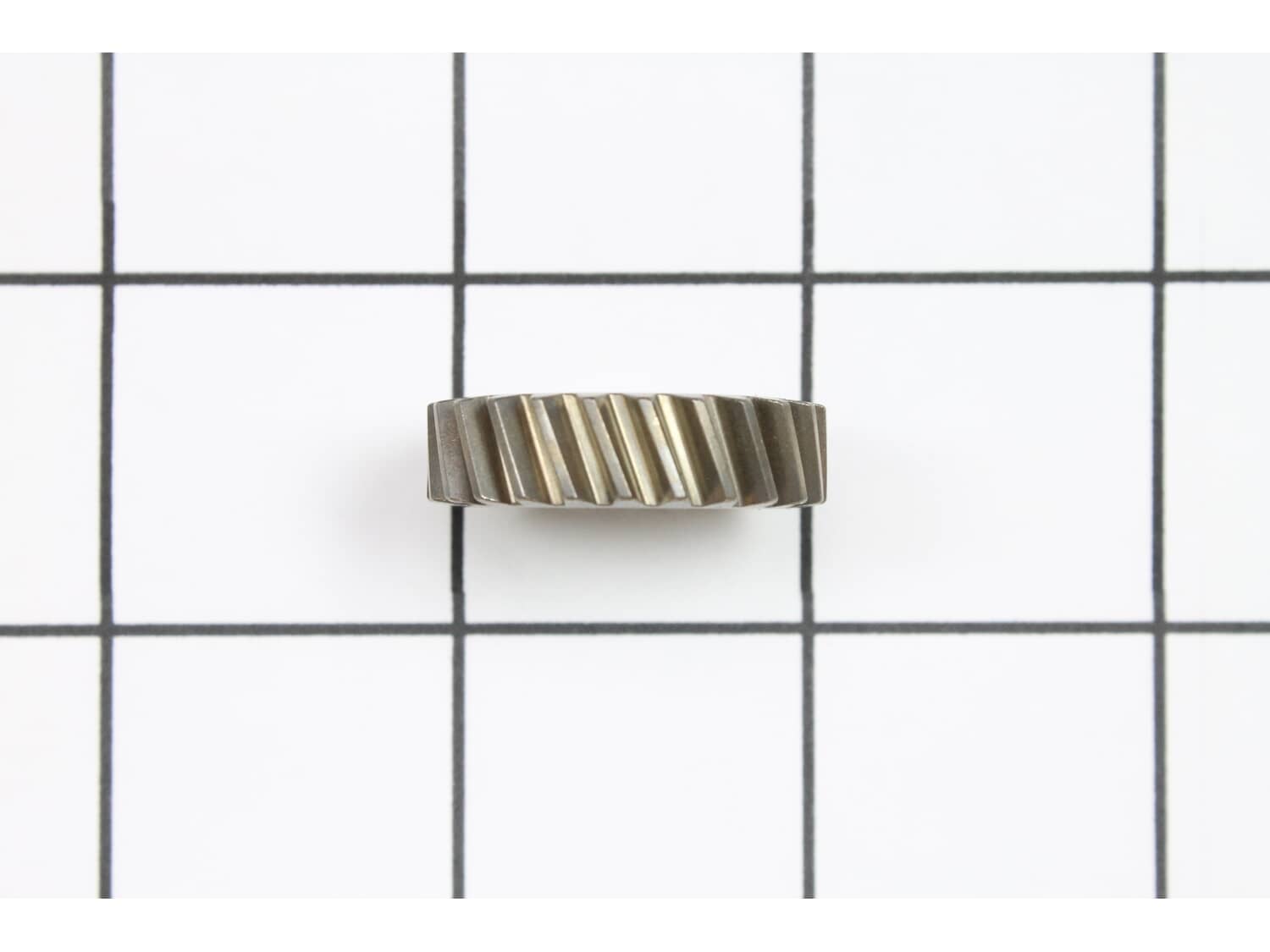

Manufacturer Part Number: 32-75-0027
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
