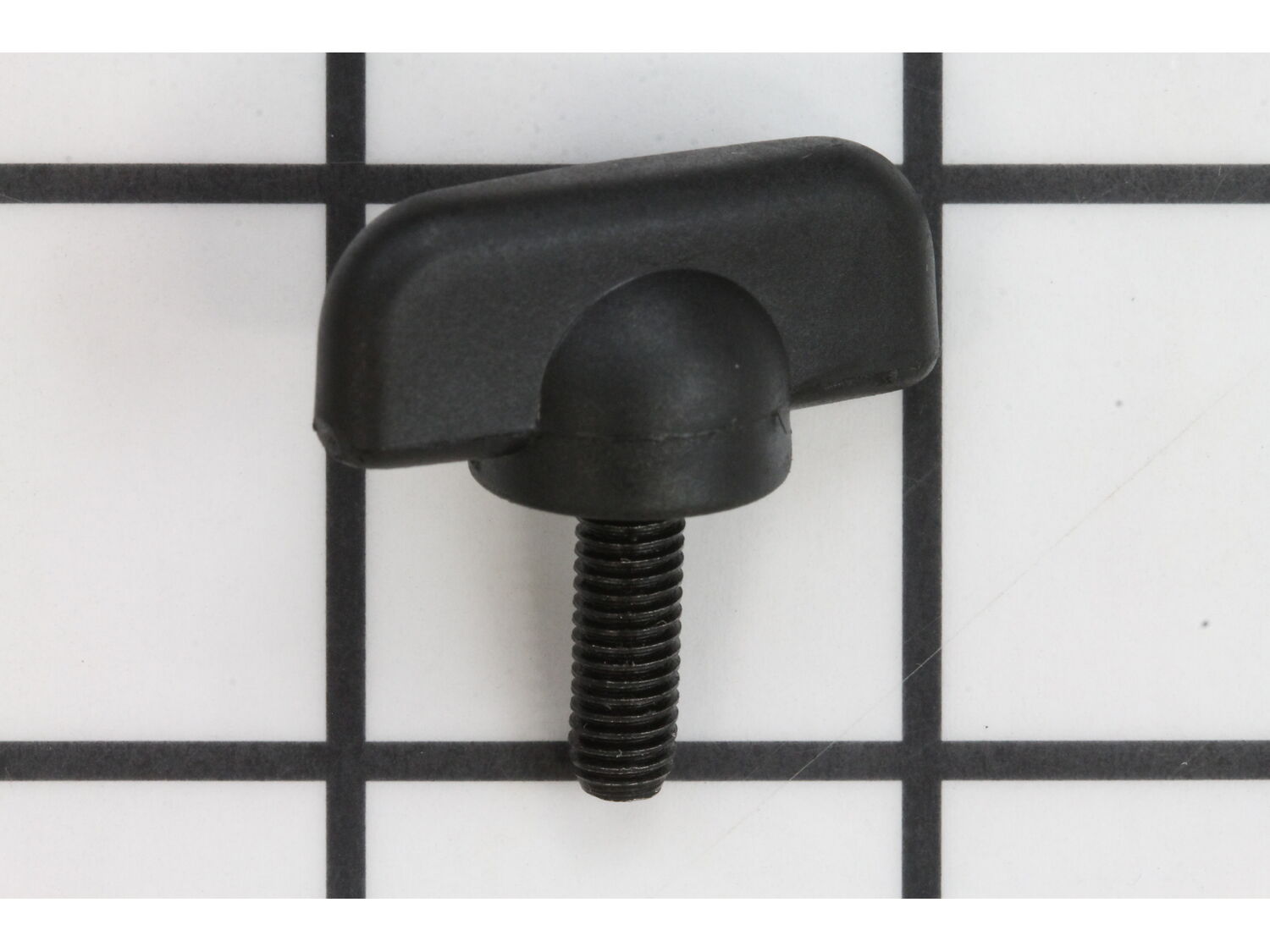

( Grid squares measure 1x1 inch )

WING NUT 5140076-50

Manufactured by:: DeWALT
ERP Number:: ERP18981837
Part Number:: 5140076-50

$5.95

Easy

Less than 15 mins

(2 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Description Questions & Answers Repair Instructions

Product Description

This is an authentic replacement part that has been sourced from the original manufacturer to be used with circular saws from Porter Cable and Bostitch. The wing nut connects to the saw's base assembly and is used when adjusting the rip fence attachment. This wing nut is available as an individual replacement part, tools are not needed to install this item.

Troubleshooting

This part works with the following brands:

Porter Cable
Bostitch
Stanley

This part works with the following products:

Circular Saw

Part# 5140076-50 replaces these:

5140076-50,

Questions & Answers

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(2 rated repairs) ?

< Prev
1
Next >

Sort by:

Lost wing nut due to vibration

Raymond from Poughkeepsie, New York

1 person found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Parts Used:: 5140076-50

Remove wing nut from the package, insert the threaded end into the receiver of the saws base. Be sure to tighten as the cutting vibration will loosen the wing nut.

Did you find this story helpful?

Wing nut lost from circular saw for saw guide

Raymond from Poughkeepsie, New York

0 of 1 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Parts Used:: 5140076-50, 5140033-96

Insert spring onto the threaded portion of the wing nut and install into the appropriate hole on the circular saw base. When not using the rip fence ,keep the fence, wing nut and spring together. The wing nut has a tendency to vibrate out of the hole on the base.

Did you find this story helpful?
