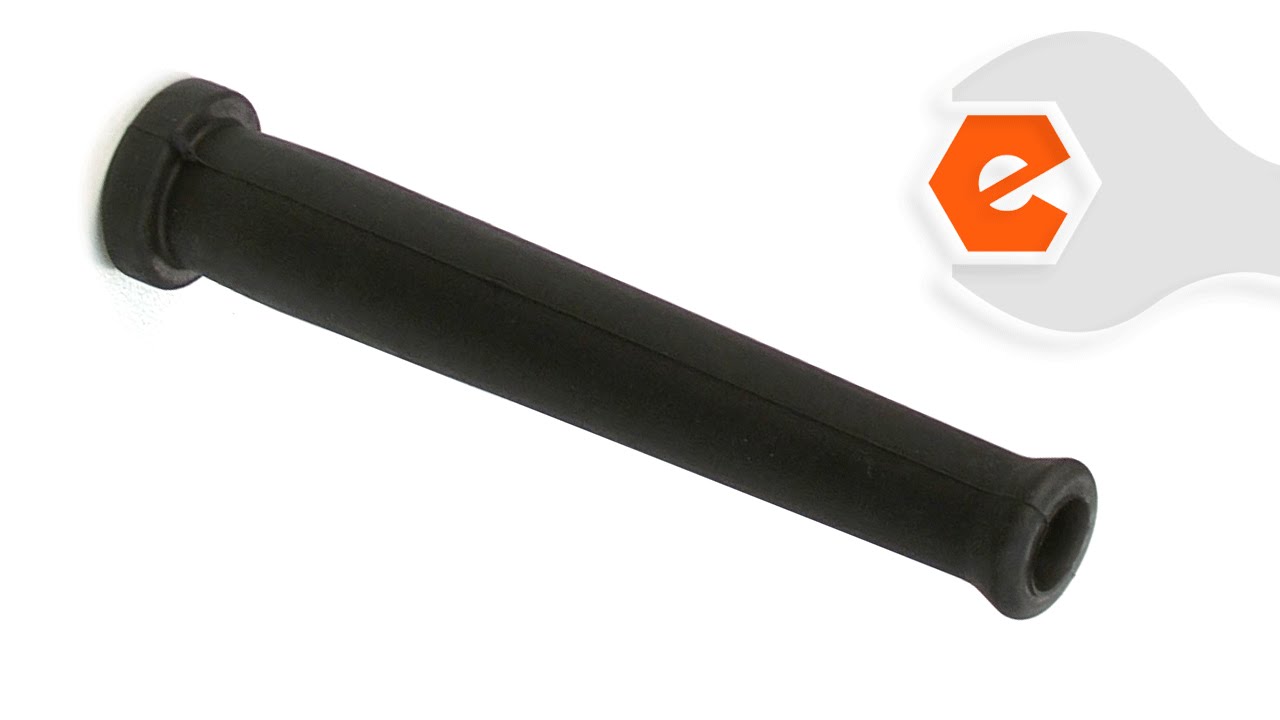

This cord guard is a genuine DeWalt replacement part and is sold individually. • Cord guards, also called cord protectors, are designed to slide onto and fit securely at the end of your cord, where its firm rubber will protect the base of the cord from getting bent and pinched, which can expose the wires and become a safety hazard. • This cord guard will fit cords for the tools listed under the "Compatible Tools" listing. It is not guaranteed to fit any other cords.
Remove the handle cover
Remove the screw holding the switch
Remove the cord clamp
Remove the cord from the switch
Put the new cord protector on the new cord
Cut and strip the cord leads to length, attach terminals
Install the parts in reverse order
Of course, make sure the tool is not plugged in. Turn the tool on its\' side exposing the five screws that keep the removable handle piece attached. After removing the screws, remove the plastic piece to expose the trigger mechanism and wiring. Carefully remove the screws that hold the black, white, and ground wires to the trigger mechani
... Read moresm and motor. Carefully take loose the now-disconnected power cord, removing the old, worn out cord guard by slipping it over the end of the of the cord. Take the ends of the wires and feed them through the small end of the new cord guard. Push the new cord guard .back out of your way for a moment. Reattach the wires for the trigger mechanism and motor. Now slide the cord guard back toward the saw and route the wire and cord as before MAKING SURE TO PUT THE END OF THE NEW CORD GUARD INTO ITS SLOT IN THE HANDLE BASE. Now replace the plastic handle piece. and insert and tighten the screws. Plug in and test the trigger to make sure your tool works as before.
Remove handle side, disconnect 2 wires at switch and thread cord out of damaged cord guard fit new one and reconnect at switch, place cord protector in slot and replace handle side.
1) Opened the grip and removed old cord.
2) Slipped cord guard onto new cord...the right way second time.
3) Snipped black and white wires on new cord to same length as old (+3/8\").
4) Stripped wire ends and crimped on an O connector.
5) Wire nutted white to tail and screwed black to back of switch.
6) Re-cl
... Read moreamped cord and cord guard.
7) Re-installed grip.
I removed the top half of handle where cord enters handle, then disconnected cord, slid off old cord guard, Then slid on new cord guard, reconnected wires, and tightened screws back to handle top half. Plugged it in to test. All this was done in under 10 minutes.
