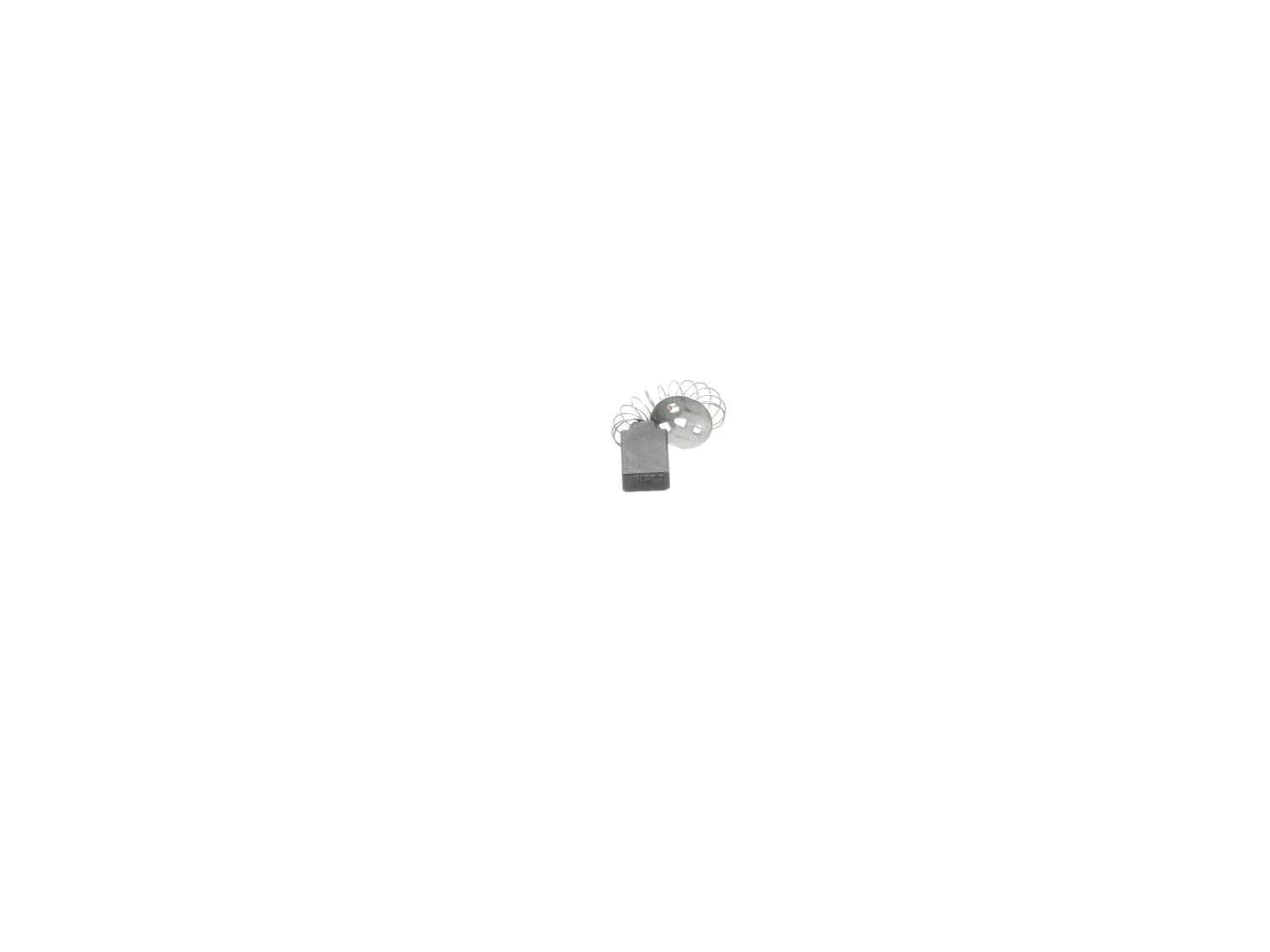

10166057-1-M-DeWALT-145323-06-Brush and Spring

( Grid squares measure 1x1 inch )

10166057-1-S-DeWALT-145323-06-Brush and Spring

10166057-2-S-DeWALT-145323-06-Brush and Spring

10166057-1-S-DeWALT-145323-06-Brush and Spring 360 view

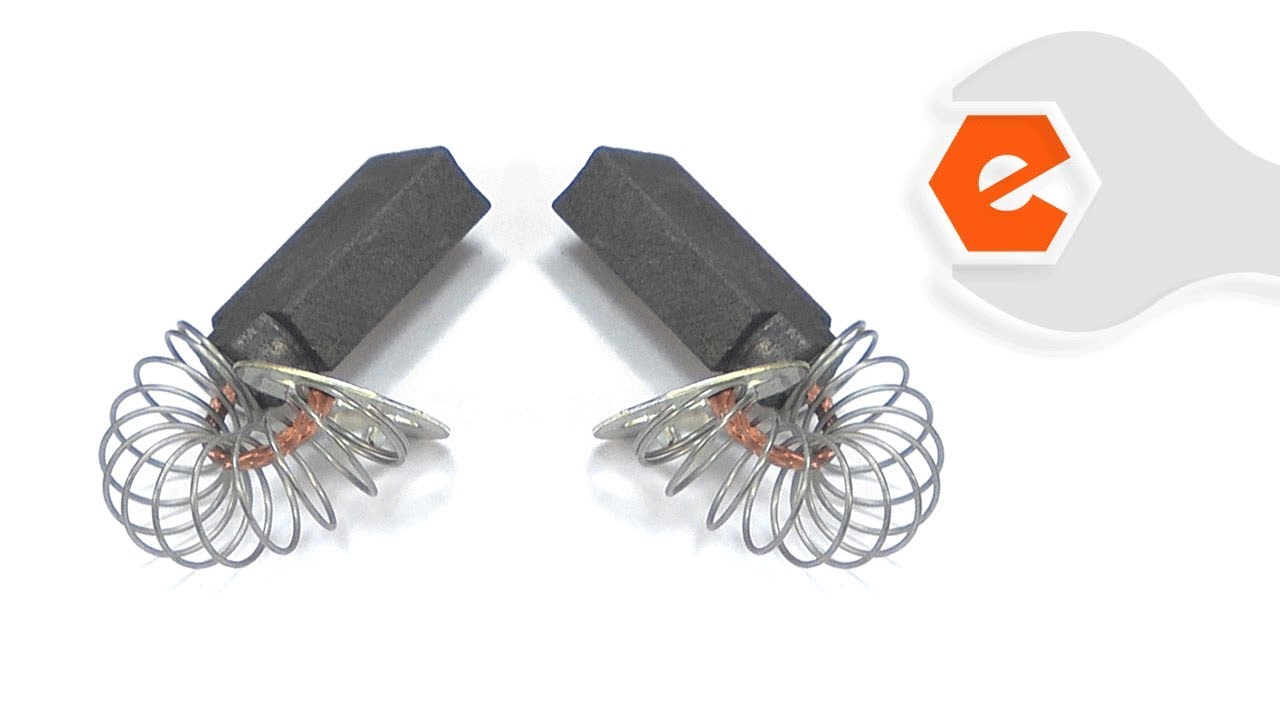

Replacing your DeWALT Circular Saw Brush and Spring

Brush and Spring 145323-06

Manufactured by:: DeWALT
ERP Number:: ERP10166057
Part Number:: 145323-06

Works with your model DW384!

$13.84

★★★★★

45 Reviews

Delivers in 3-5 Business Days!

Easy

Less than 15 mins

(55 rated repairs) ?

Works with your model DW384!

Jump to:

Description Frequently Purchased Together Troubleshooting Repair Videos Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

This Genuine OEM carbon brush is an essential replacement part designed for use with a variety of DeWALT and Black & Decker saws. Sold individually, this high-quality component is made to conduct electrical current within the motor, enabling efficient power transfer and tool performance. Over time, carbon brushes naturally wear down due to friction and electrical contact, which can lead to intermittent motor issues or failure to start. Measuring 3/4 inch in length, 1/2 inch in width, and 1/4 inch in thickness, this brush is built to original specifications for a precise fit. When replacing carbon brushes, it’s important to also inspect the motor’s armature for signs of burns, cracks, or other damage, which may indicate a more serious issue. A hex key or screwdriver may be required for installation, depending on your tool model.

Frequently Purchased Together

Carbon Brush

★★★★★

(15)

$10.96

Brush

★★★★★

(5)

$8.66

Bolt Assy

★★★★★

(22)

$6.16

Minimum Quantity of 2 required

Miter Saw Ball Bearing

★★★★★

(21)

$18.63

Switch

★★★★★

(10)

$51.02

Switch Kit

★★★★★

(26)

$85.74

Kerf Plate

★★★★★

(17)

$13.18

Dust Bag

★★★★★

(17)

$28.80

Belt

★★★★★

(5)

$19.70

Clamshell Handle

★★★★★

(32)

$55.44

Switch Kit

★★★★★

(11)

$54.42

Switch And Shroud

★★★★★

(3)

$47.47

Troubleshooting

This part fixes the following symptoms:

Won't turn on

This part works with the following brands:

DeWALT
Black and Decker
Craftsman
DeVilbiss

This part works with the following products:

Circular Saw
Miter Saw
Table Saw

Part# 145323-06 replaces these:

145323-06,

Videos For installing this part.

★

Customer Part Reviews

4.9

Average Rating (out of 5):

★★★★★

(45 Reviews)

Click to filter by ratings:

5 stars

42
4 stars

3
3 stars

0
2 stars

0
1 star

0

< Prev
1
2
3
Next >

Sort by:

★★★★★

Motor brush replacement

I received the part on time. It was exactly as described and as I needed. I installed both within a short time and it was a successful repair. This is my 6th experience with ereplacementparts and I will continue to use them!

Scott - May 20, 2019

Verified Purchase

★★★★★

brushes

Everything came out great. The order, shipping, Good job. Thanks

Guest - May 30, 2019

Verified Purchase

★★★★★

Easy replacement, new brushes worked perfectly.

I recently purchased a new armature, brushes and bearings to refurbish a compound miter saw. The refurbished unit works like new, thanks to ereplacementparts.

James - June 10, 2019

Verified Purchase

★★★★★

Dropped right in, saw motor runs great.

The old brushes were getting pretty short. I wish I had ordered new brush caps, though, since the fine-threaded "buttons" were hard to reuse with those springy new long brushes. I cross-threaded one on reassembly.

Guest - June 12, 2019

Verified Purchase

★★★★★

very easy good part

it's like having a new saw,Thanks

Guest - June 15, 2019

Verified Purchase

★★★★★

Worked as expected.

The part was at a great price, it worked as expected too, and I would buy from the site again if needed. Thank You.

Juan - July 22, 2019

Verified Purchase

★★★★★

Old saw

Parts fit saw lives again

Guest - July 29, 2019

Verified Purchase

★★★★★

Just right!

The perfect replacement, just like the original. Quick response, reasonable price.

Guest - August 6, 2019

Verified Purchase

★★★★★

works Great

Perfect fit. Thanks

Jim - August 13, 2019

Verified Purchase

★★★★★

Motor Brushes for DW708 Dewalt

Part was good quality and is working just fine in my machine. Thank you.

Guest - August 19, 2019

Verified Purchase

< Prev
1
2
3
Next >

Questions & Answers

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(55 rated repairs) ?

< Prev
1
2
3
Next >

Sort by:

Replace brushes

Jim from Allendale, Michigan

14 of 15 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 30 - 60 mins
Tools:: Screw drivers
Parts Used:: 145323-06

Remove brush caps with a screwdriver, then remove the old brushes. Install the new brushes, then replace the brush caps.

Did you find this story helpful?

Saw had failed to start and the best solution for this problem was to replace the old brushes.

Doug from petal, Mississippi

8 of 8 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Screw drivers
Parts Used:: 145323-06

I was able to purchase the replacement brushes and springs at ereplacementparts.com and I was pleased with the ease of installation and moreover by the exceptional follow-up and delivery time!! All you have to do is remove the brush caps, remove the old brushes and install the new brushes , then screw the brush caps back on.

... Read more

Read less

Did you find this story helpful?

Brushes worn out

Dennis from Florissant, Colorado

7 of 7 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Tools:: Screw drivers
Parts Used:: 146726-02, 145323-06

My circular saw needed new brushes, and my miter saw needed a new kerf plate. For the circular saw I unscrewed the cover for the motor, and removed the brushes. The kerf plate was easy just unscrew the screws and then put on the new board.

Did you find this story helpful?

Blade brake sluggish

Thomas from Olympia, Washington

5 of 5 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Screw drivers
Parts Used:: 145323-06

Simply remove brush covers with a screw driver remove old brush assemblies blow out all dust, install new brushes and secure by reinstalling brush covers

Did you find this story helpful?

Worn brushes.

Michael from PITTSBURGH, Pennsylvania

4 of 4 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Screw drivers
Parts Used:: 145323-06

Replaced the old brushes with the new.

Did you find this story helpful?

Circular saw ran yet but weak, lot of sparks coming from where the 2 brushes met the armature. New brushes much more power n less sparks now.

Stephen from Pataskala, Ohio

4 of 4 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Screw drivers
Parts Used:: 448084-01, 145323-06

Took the two brush caps off, that someone had tried to, or had taken off before with a screw driver that was to narrow. Got the caps off, replaced the brushes I bought easily n cheaply on e replacement parts.com. put the new caps on. The saw looks n runs much better than it did.

Did you find this story helpful?

Brushes wore out after 18 years

Barry from Wood-Ridge, New Jersey

3 of 3 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Screw drivers
Parts Used:: 145323-06

Removed brush caps. Removed old brushes. Installed new brushes. Installed brush caps.

Did you find this story helpful?

Motor quit due to worn brushes

Paul from Merrill, Wisconsin

2 of 2 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Tools:: Screw drivers
Parts Used:: 145323-06

Removed the brush caps, removed the old brushes, installed the new brushes, replaced the brush caps.

Did you find this story helpful?

Replace worn parts

Jim from Petersburg, Alaska

2 of 2 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 1- 2 hours
Tools:: Screw drivers, Socket set
Parts Used:: 605040-20, 605040-27, 400677-00, 145323-06, 144803-00, 137382-00

Remove the motor from the gear case, Remove motor leads from the switch, remove the the brushes. Remove the back motor cap. Remove the screws from the motor housing, then using a mallet tap on the gearcase to separate the housings. Remove the armature. Remove the retaining rings. I have a friend that let me use his arbor press to remove a ... Read more

Read less

Did you find this story helpful?

Brushes worn

Gerry from Winston, Georgia

2 of 2 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Screw drivers
Parts Used:: 145323-06

Easy fix. Simply remove brush caps with wide screwdriver. You can also use a chisel because it needs to be pretty wide blade. Pop the old brushes, pop in the new ones and replace the cap.
GOOD TO GO FOR A FEW MORE YEARS

Did you find this story helpful?

< Prev
1
2
3
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP10166057
Manufacturer Part Number: 145323-06

Brand	Model Number	Description
Black and Decker	21115	Circular Saw - 7-1/4 Inch Circular Saw
Black and Decker	2683	Circular Saw - 7 1/4 Circular Saw
Black and Decker	2684	Circular Saw - 7 1/4 Industrial Saw Cat
DeWALT	2684-34	Circular Saw - 7 1/4 Cir. Saw Brazil
Black and Decker	2685	Circular Saw - 8 1/4 Industrial Saw Cat
Black and Decker	2685-46	Circular Saw - 7 1/4 Sawcat
Black and Decker	2694	Circular Saw - 7-1/4&#34 Industrial Strength Sawcat
Black and Decker	2695	Circular Saw - 8 1/4 Industrial Circular Saw
Black and Decker	2697	Circular Saw - Light Weight Circular Saw
Black and Decker	2698	Circular Saw - Light Weight Circular Saw With Brake
Black and Decker	2698-AU	Circular Saw - 9-1/4 Cir.Saw - Austral
Black and Decker	27111	Circular Saw - Circular Saw
Black and Decker	3057	Circular Saw - 7 1/4 Circular Saw
Black and Decker	3057-04	Circular Saw - 7 1/4 Sawcat
Black and Decker	3057-44	Circular Saw - 7 1/4 Sawcat Chili
Black and Decker	3057-48	Circular Saw - 7 1/4 Saw Cat
Black and Decker	3060	Circular Saw - 7 1/4 Professional Saw Cat
Black and Decker	3064	Circular Saw - 7 1/4 Professional Saw Cat
Black and Decker	3064-44	Circular Saw - 7 1/4 Super Sawcat Chili
Black and Decker	3660	Miter Saw - 12 Miter Saw
Black and Decker	3680	Miter Saw - 12 Compound Miter Saw
Craftsman	900211150	Circular Saw - 7 1/4" Circular Saw
Craftsman	900271110	Circular Saw - Circular Saw
Craftsman	900271111	Circular Saw - Circular Saw
DeWALT	D357-04	Circular Saw - DeWalt Circular Saw Model D357-04 (D35704, D357 04) Parts
DeWALT	D358-04	Circular Saw - DeWalt Circular Saw Model D358-04 (D35804, D358 04) Parts
DeWALT	D360-04	Circular Saw - DeWalt Circular Saw Model D360-04 (D36004, D360 04) Parts
DeWALT	D364-04	Circular Saw - DeWalt Circular Saw Model D364-04 (D36404, D364 04) Parts
DeWALT	D384-04	Circular Saw - Circ. Saw Canada
Craftsman	D38404	Table Saw - Circular Saw
