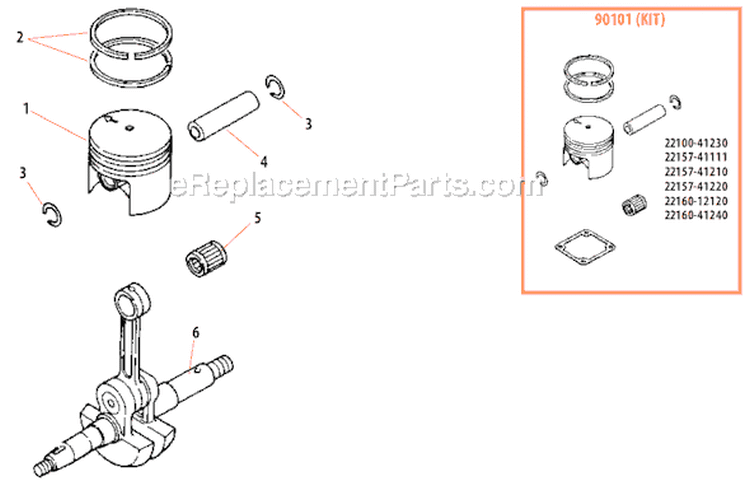

Part Location Diagram of P021036090 Shindaiwa Piston Assy
See part C-90101 in the diagram
( Grid squares measure 1x1 inch )

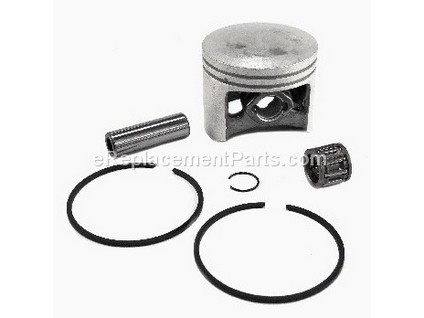

Piston Assy P021036090

Manufactured by:
Shindaiwa
ERP Number:
ERP9245275
Part Number:
P021036090
Original Equipment Manufacturer ?
$112.77
Special Order

Easy

1- 2 hours

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Shindaiwa
This part works with the following products:
  • Chainsaw

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

1- 2 hours

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

The saw was straight gassed

John from WEST SUNBURY, Pennsylvania

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Screw drivers, Wrench set
Pulled the muffler to check for cylinder damage . Pressure/Vac tested to exclude case ,and seal leakage . Removed and replaced P&C , intake boot, base gasket , and some minor parts .
Will run saw on 36-1 mix for a few tanks .
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP9245275
Manufacturer Part Number: P021036090
Brand Model Number Description
Shindaiwa 488 Chainsaw - Chainsaw
Shindaiwa 488P Chainsaw - Gasoline Chainsaws
Shindaiwa 490 Chainsaw - Chainsaw
