1- Removed top cover
2- Disconnect spark plug boot
3- Remove recoil starter cover and plastic flywheel/coil module cover
4- Remove hot lead wire from ignition module to coil
5- Re-route new hot lead wire and re-connect
6- Remove stop switch and ground strap screw then ground wire from module to stop switch
... Read morer />7- Install new stop switch with ground strap screw and re-route new ground wire from module to swatch
8-Re-install flywheel/ coil module cover and recoil starter cover
9- Remover spark plug, install boot and ground plug to engine. Pull recoil starter and check plug for spark and switch operation (on =spark; off= no spark)
10- Reinstall spark plug and boot. Re-install top cover
1. Remove top cover, air filter, and starter cover
2. Remove air injection shroud underneath the starter.
3. Remove old leads from the coil under the starter, the kill switch, and from the coil in the air box.
4. Inspected kill switch for function. The switch occasionally cracks on the back.
5. Installed new
... Read moreleads, routing into the proper holders and securing the rubber grommet at the point where the lead transition from the air box to the flywheel area.
6. Connect the blue and red leads to the appropriate tabs on the coils and kill switch.
7. Re-install the starter cover, slowly using the pull rope handle to align the starter with the palls on the flywheel.
8. Re-install the air filter and top cover.
Removed the top cover and the starter cover.
Unplugged old leads and removed gromet.
Removed old leads from gromet.
Ran new leads through gromet and reinstalled gromet.
Hooked up new leads.
Reinstalled starter cover and recoil cover.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8985381

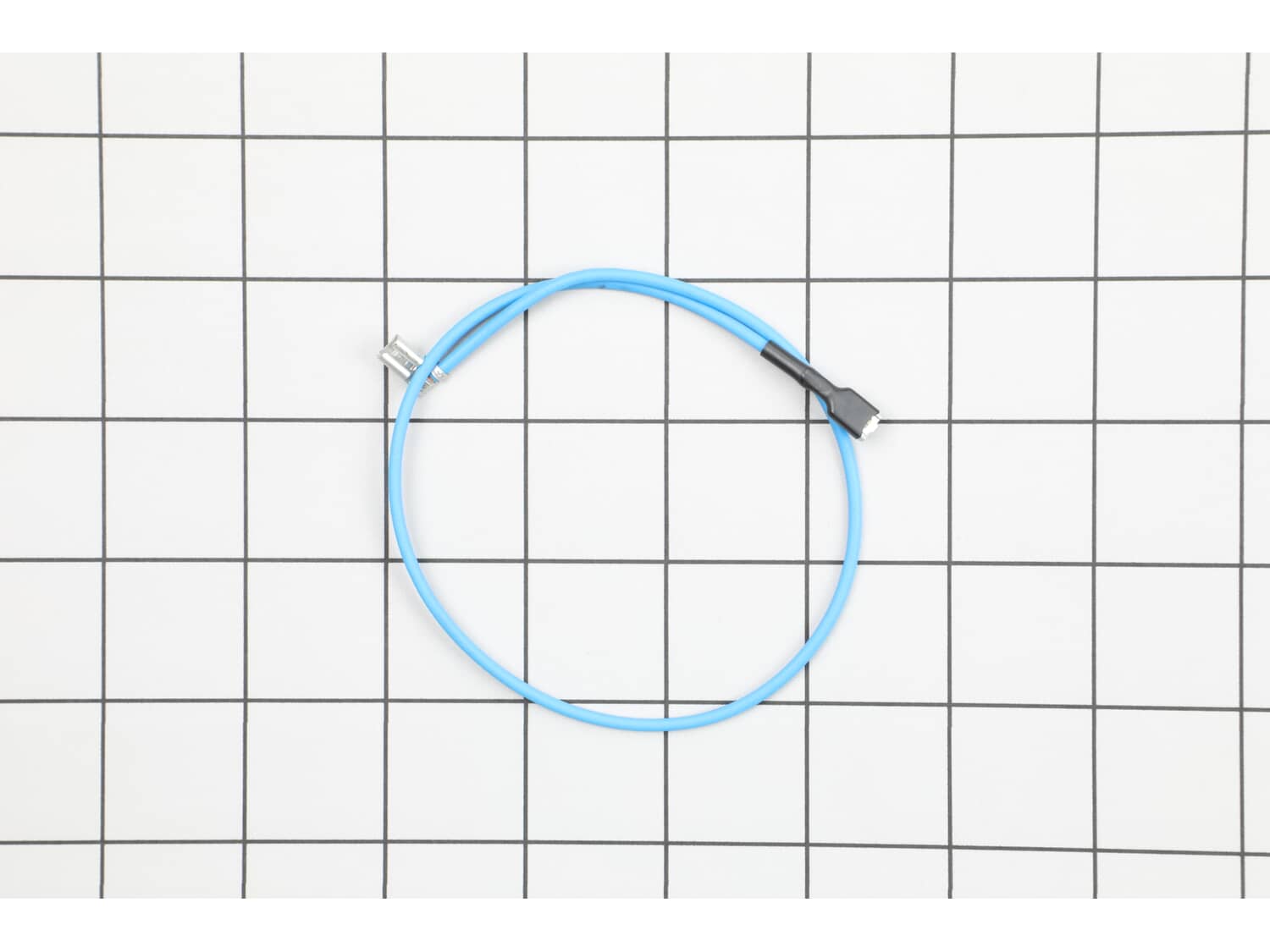

Manufacturer Part Number: 501839803
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
