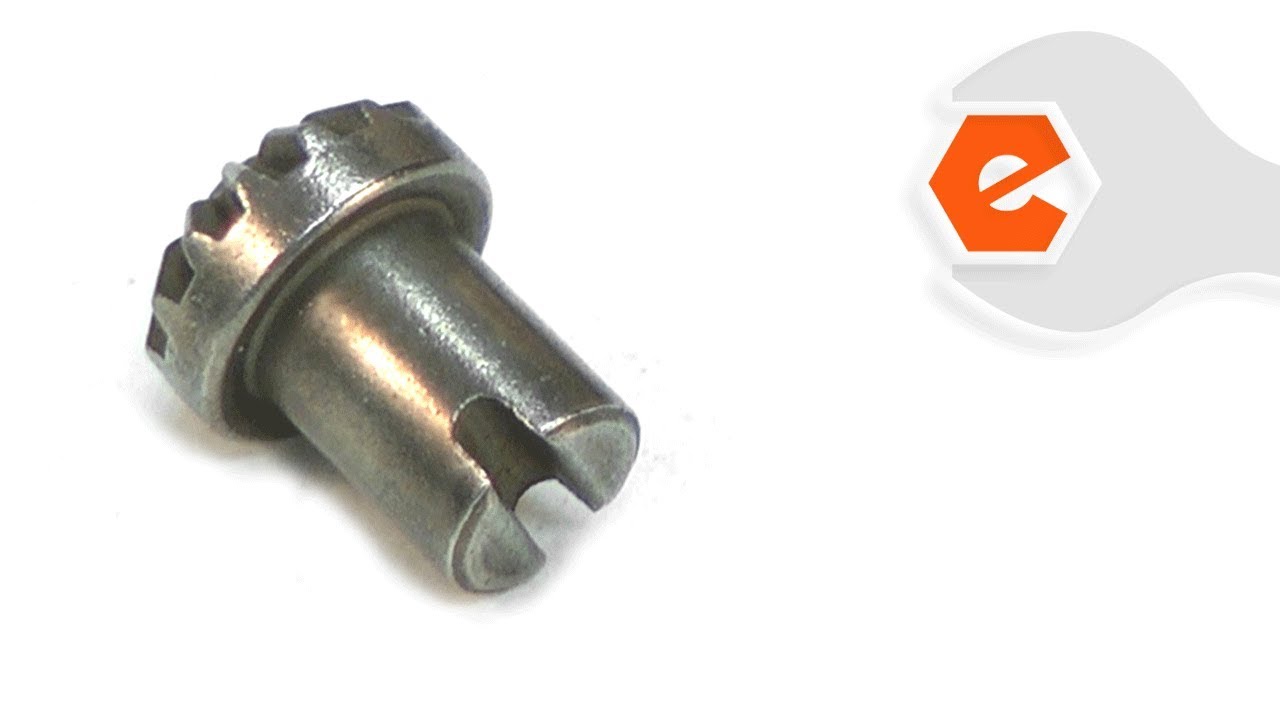

This is a genuine manufacturer approved replacement part designed for use with chainsaws. This part is an essential part of chain tensioner mechanism. When replacing this part you will need a screwdriver. It is made out of metal and it is sold individually.
Thoroughly cleaned the chain brake assembly of all dirt for the mere fact that the parts are small and need to be precision fit. Assembly was easy, laid out the parts did a dry run to make sure the parts were right, they were, and proceed to assemble the pieces. Used the chain saw on more than several occasions and everything is still lik
... Read moree new.
Read less
Did you find this story helpful?
Thank you for voting!
The chain adjuster screw was stripped - would not adjust chain
-1 Remove the brake assembly plastics (remove 2 nuts that hold it on)
-2 Remove 2 screws that hold a metal plate and remove
-3 With pliers pull out the chain tensioner screw and associated parts
-4 Replace old parts with new
Did you find this story helpful?
Thank you for voting!
Chain tensioner was damaged on Echo model 400 CS chain saw
1. Removed clutch/sprocket cover
2. Removed chain and bar
3. Removed tensioner plate from clutch/sprocket cover using Phillips head screwdriver (2 screws)
4. Disassembled the 5 parts making up the tensioner assembly pulling out with pliers
5. Replaced with the 5 purchased replacement parts
6. Reassembled in r
... Read moreeverse order
A relatively easy job. Just a little tricky pulling out assembly. Use pliers on the protruding portion that fits in chain bar and pull straight up. Upon reassembly, make sure the plastic/nylon collar is fully seated. An easy 30 buck fix. (Probably could have reused a couple of the old parts but had rather start brand new for the cost.)
1.) Removed side cover
2.) Removed two screws holding on tensioner plate.
3.) Removed components to chain tensioner and replaced with ordered parts.
4.) Replaced tensioner cover and side cover
1. Removed the cover.
2. Removed the collar and two bevel gears.
3. Replaced the collar and the bevel gears.
4. Reinstalled the chain cover and adjusted the tension.
Remove chain brake assembly, making sire it was not locked. Remove the chain from the saw sprocket and bar. Removed screw holding chain adjustment screw assembly. Popped clip out. Replaced bevel gears. Reassembled reverse of the way it was taken apart.
