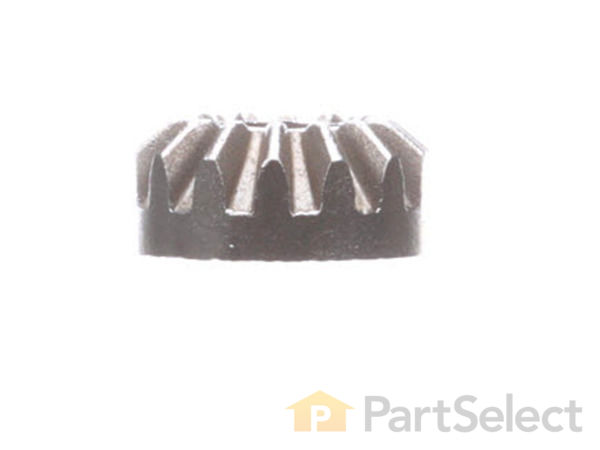

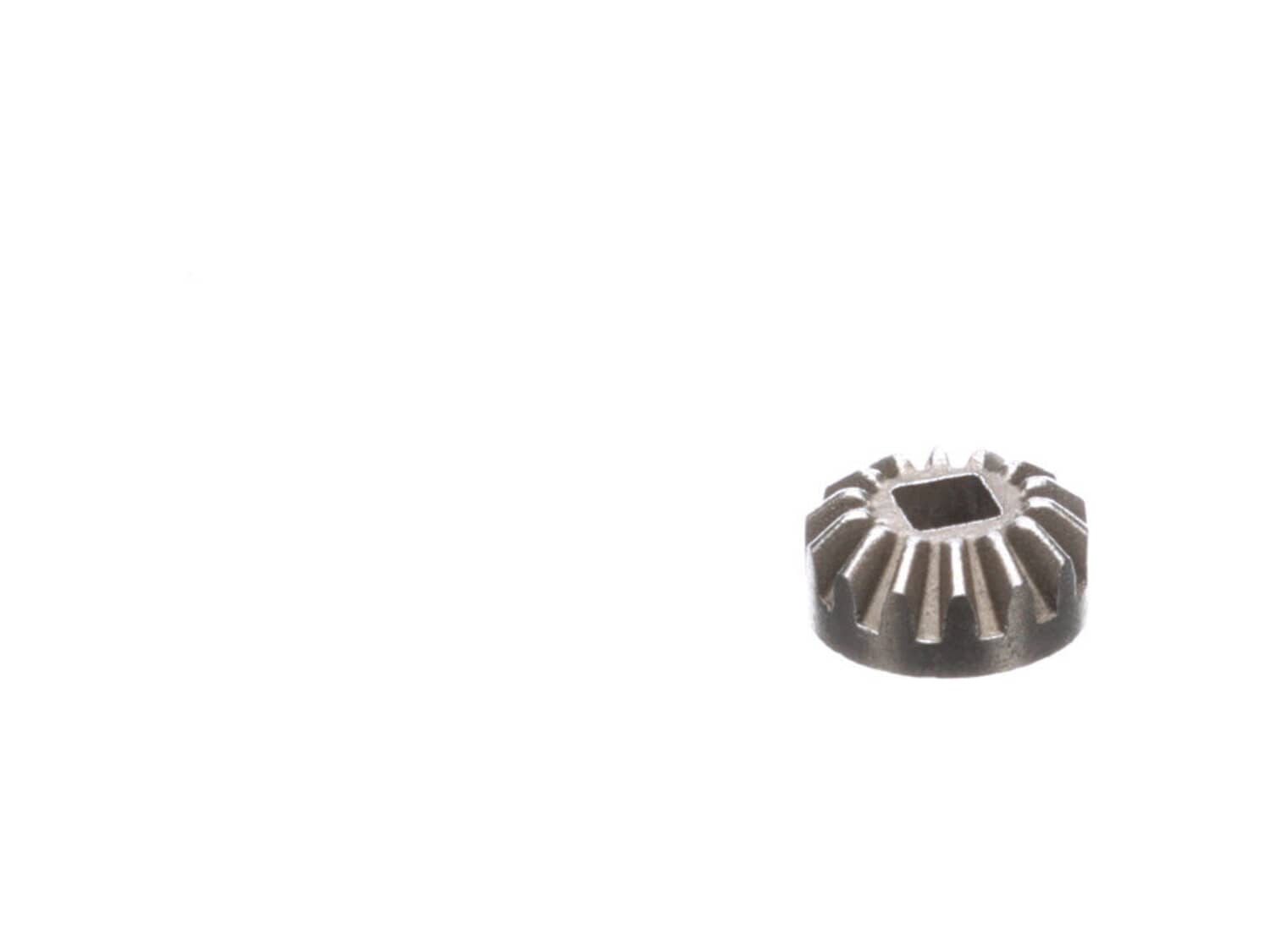

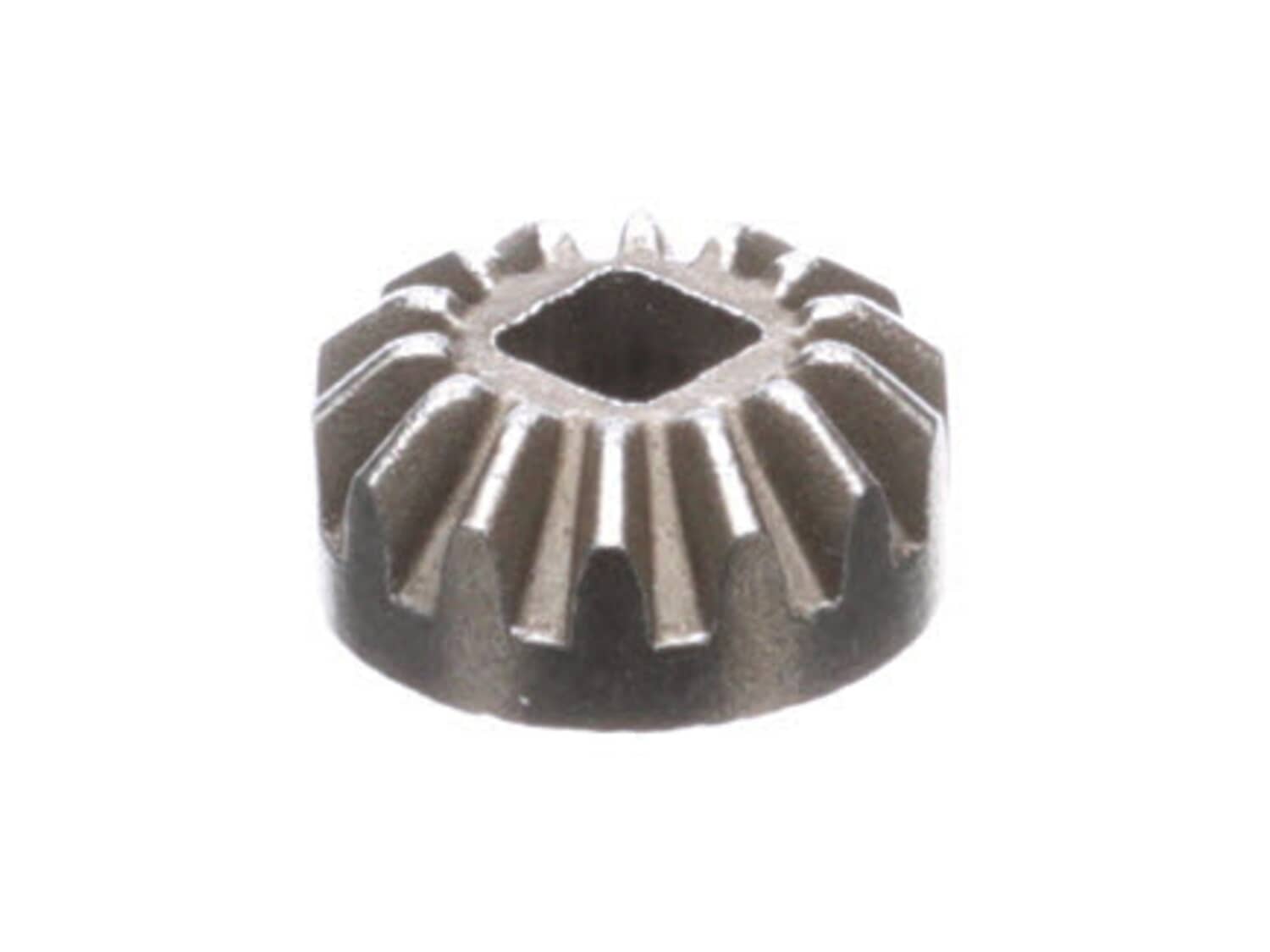

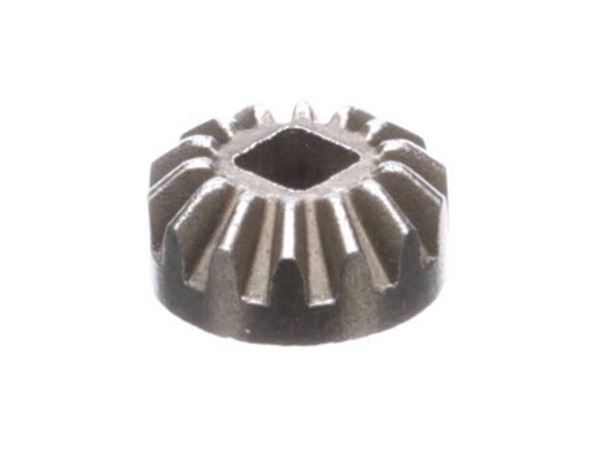

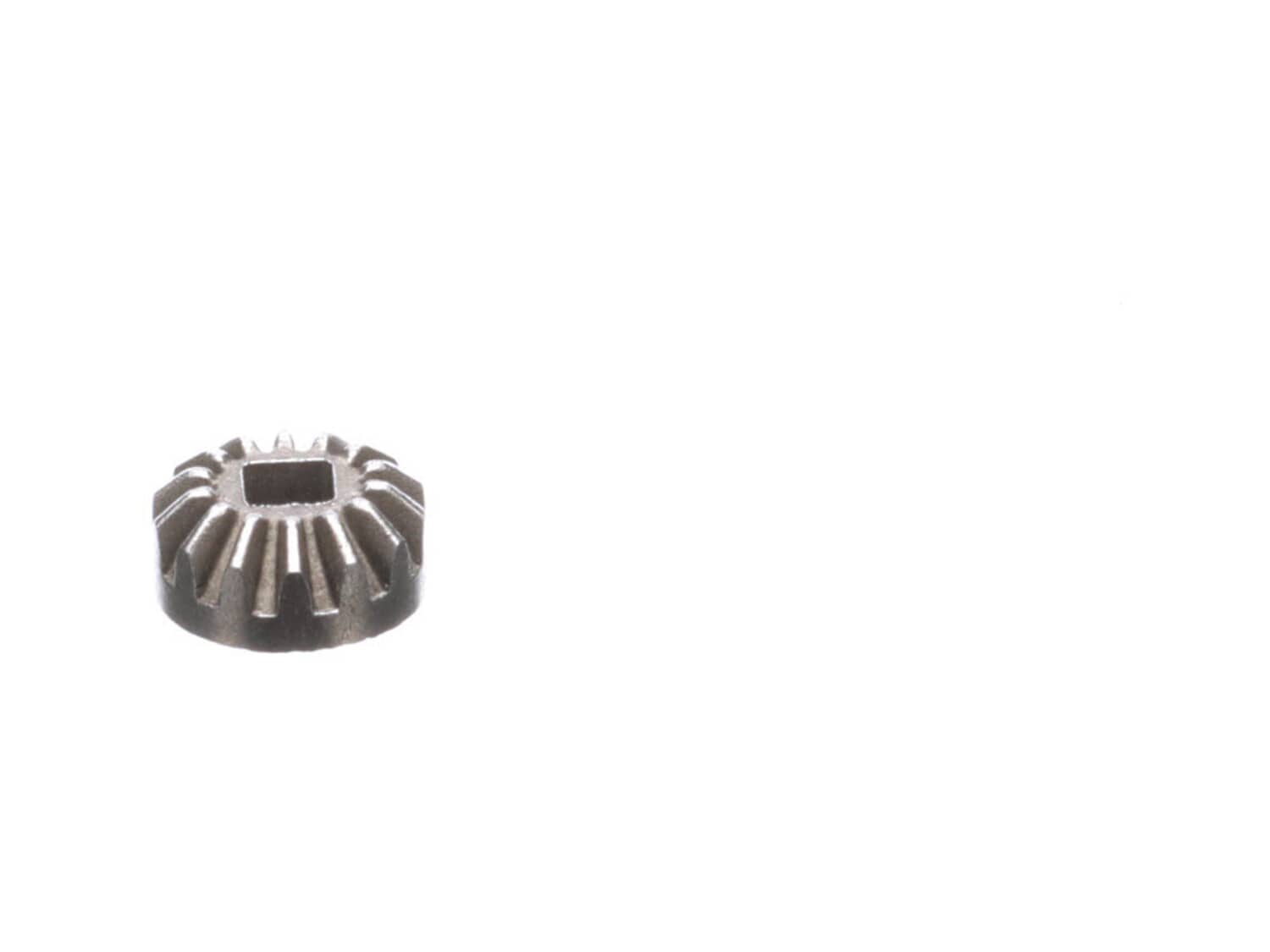

Genuine OEM replacement part, this part is sold individually. The Bevel Gear is part of the chain tensioning assembly of the chainsaws listed below. This part aid in loosening and tightening the chain on the chain bar.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Perfect fit all the parts put my old saw back in good working order. THANKS GOD BLESS
Thanks again for the ontime service and great fit.
Guest - August 6, 2019
Verified Purchase
★★★★★
★★★★★
Works perfectly.
The order came as estimated during checkout and it fits perfectly.
Guest - August 27, 2019
Verified Purchase
★★★★★
★★★★★
Worked
The part was exactly what I needed to get my chainsaw back into use. Every aspect of working with eReplacementParts was easy and all expectations were met.
Guest - June 9, 2020
Verified Purchase
★★★★★
★★★★★
Easy process
Simple repair with the right part, delivered quickly. Thank you e-replacement!
Guest - January 4, 2021
Verified Purchase
★★★★★
★★★★★
Worked great.
Only needed one of the gears, but with the shipping rate being the same, I ordered both.
Guest - October 12, 2021
Verified Purchase
★★★★★
★★★★★
Easy repair Great part worthy of the time
Little Part whole lot better than buying a new chainsaw. A whole lot cheaper
Guest - June 8, 2022
Verified Purchase
★★★★★
★★★★★
Bevel Worked great. Now I can adjust the chain.
good part. good service. exactly what i needed. quick delivery. thanks
Guest - June 28, 2023
Verified Purchase
★★★★★
★★★★★
Easy repair
arrived on time. great price
SHEILA - September 3, 2023
Verified Purchase
★★★★★
★★★★★
worked as expected.
easy to find the parts on the website, easy to order, and easy fix
Guest - December 9, 2023
Verified Purchase
★★★★★
★★★★★
Chain tensioning part
Arrived on schedule! Worked great.
Eric - May 9, 2019
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
I had to remove the cover which is the same cover you remove to replace the chain. I then had to remove 3 tiny screws which hold the tension gear assembly cover. The tension gear slips into a plastic housing which keeps the tension gear in place. The tension screw fits through the gear and through the plastic housing. I then reattached th
... Read moree tension gear assembly cover (with the 3 tiny screws) and reattach the chain saw cover.
When you rotate the chain saw tension screw it turns the tension gear and adjusts the tension on the chain saw. Very easy.
Thoroughly cleaned the chain brake assembly of all dirt for the mere fact that the parts are small and need to be precision fit. Assembly was easy, laid out the parts did a dry run to make sure the parts were right, they were, and proceed to assemble the pieces. Used the chain saw on more than several occasions and everything is still lik
... Read moree new.
Read less
Did you find this story helpful?
Thank you for voting!
The chain adjuster screw was stripped - would not adjust chain
-1 Remove the brake assembly plastics (remove 2 nuts that hold it on)
-2 Remove 2 screws that hold a metal plate and remove
-3 With pliers pull out the chain tensioner screw and associated parts
-4 Replace old parts with new
Did you find this story helpful?
Thank you for voting!
Chain tensioner was damaged on Echo model 400 CS chain saw
1. Removed clutch/sprocket cover
2. Removed chain and bar
3. Removed tensioner plate from clutch/sprocket cover using Phillips head screwdriver (2 screws)
4. Disassembled the 5 parts making up the tensioner assembly pulling out with pliers
5. Replaced with the 5 purchased replacement parts
6. Reassembled in r
... Read moreeverse order
A relatively easy job. Just a little tricky pulling out assembly. Use pliers on the protruding portion that fits in chain bar and pull straight up. Upon reassembly, make sure the plastic/nylon collar is fully seated. An easy 30 buck fix. (Probably could have reused a couple of the old parts but had rather start brand new for the cost.)
1.) Removed side cover
2.) Removed two screws holding on tensioner plate.
3.) Removed components to chain tensioner and replaced with ordered parts.
4.) Replaced tensioner cover and side cover
Did you find this story helpful?
Thank you for voting!
Couldn\'t adjust tension on the cutting chain...bevel had several missing teeth
1) Removed chain gear/bar cover.
2) Removed chain and bar.
3) Removed tensioner to expose bevel gears
4) Replaced damaged one
5) Returned all things to normal status.
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9237267
Manufacturer Part Number: V651000011
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
