8857246-1-M-Echo-12318139130-Purge Bulb

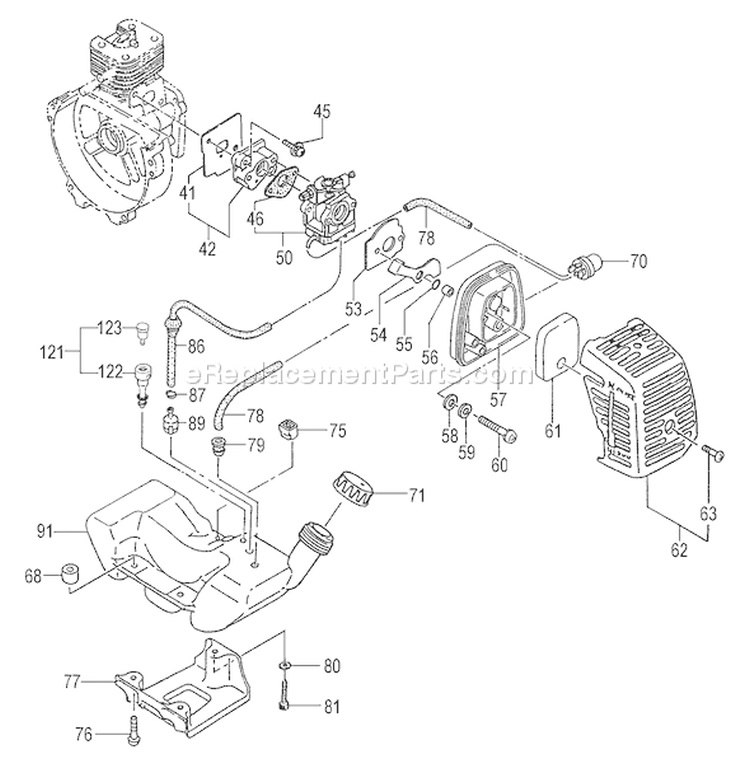

Part Location Diagram of 12318139130 Echo Purge Bulb
See part L-70 in the diagram
Replacing your Echo Chainsaw Purge Bulb

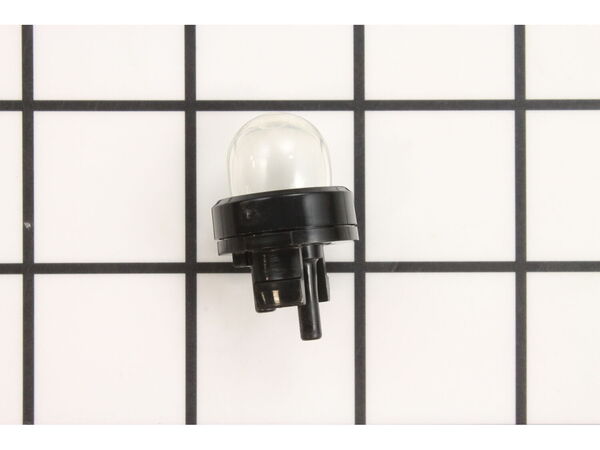

8857246-1-S-Echo-12318139130-Purge Bulb 360 view
( Grid squares measure 1x1 inch )
8857246-1-S-Echo-12318139130-Purge Bulb 8857246-1-S-Echo-12318139130-Purge Bulb 360 view
Part Location Diagram of 12318139130 Echo Purge Bulb Replacing your Echo Chainsaw Purge Bulb

Purge Bulb 12318139130

Manufactured by:
Echo
ERP Number:
ERP8857246
Part Number:
12318139130
Original Equipment Manufacturer ?
$7.07
★★★★★
★★★★★
27 Reviews
In Stock
Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(44 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Frequently Purchased Together Troubleshooting Repair Videos Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

This is a genuine OEM replacement part, it is sold individually. By pressing the bulb, It will purge all of the air out of the carburetor. Then fuel will come up from the fuel tank through the fuel line then into the carburetor. Then the excess fuel will be forced back into the fuel tank through the fuel return line. At some time the primer will lose its elasticity or crack and need to be replaced. We have an article and video on How to Replace a Primer Bulb, in our Repair Center. That can be found on the front page of our site.

Frequently Purchased Together

?
O-ring
★★★★★
★★★★★
(1)
$5.16
On Order
Minimum Quantity of 2 required
Harness Kit
$44.66
On Order
Flexible Tube
$18.12
In Stock
Gasket-intake
★★★★★
★★★★★
(1)
$5.37
On Order
Minimum Quantity of 2 required
Tune-up Kit
$36.62
On Order
Tune-up Kit
$34.09
In Stock
Repair Kit
$17.08
In Stock
Filter-air
$28.57
In Stock
Carburetor -- Wt-589
$73.96
In Stock
Pipe- Primer- 3x5x200
$6.15
On Order
Pipe-fuel - 3x5x230mm
$6.15
In Stock
Pipe-Purge - 3X5X80mm
$6.15
In Stock
Carburetor -- Wt-946
$68.13
In Stock
Pipe- Return- 3x5x105
$6.15
On Order
Assy, Air Filter
$21.54
In Stock
Pip, Primer 3x5x140
$6.15
In Stock
Pipe-purge - 3x5x125mm
$6.15
In Stock

Troubleshooting

This part works with the following brands:
  • Echo
  • Tanaka
  • Shindaiwa
  • Hitachi
This part works with the following products:
  • Chainsaw
  • Trimmer
  • Leaf Blower / Vacuum
  • Hedge Trimmer
  • Auger
Part# 12318139130 replaces these:
  • 12318139130
  • 6685139

Videos For installing this part.

?
Replacing your Purge Bulb
★

Customer Part Reviews

?
4.6
Average Rating (out of 5):
★★★★★
★★★★★
(27 Reviews)
Click to filter by ratings:
  • 5 stars
    23
  • 4 stars
    2
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    2
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Web site easy to navigate
Exact replacement part. Fast service. Easy install with clear instructions.
Guest - May 9, 2019
Verified Purchase
★★★★★
★★★★★
Chain Saw
Parts were perfect fit but shipping a little slow. Otherwise no issues
Guest - June 22, 2019
Verified Purchase
★★★★★
★★★★★
Great inventory, Great service - fast!
Just what I needed to fix my chainsaw. Works like a charm - THANKS
Guest - July 18, 2019
Verified Purchase
★★★★★
★★★★★
Real easy
Parts diagrams are easy to see and locate parts needed. Easy buying, fast shipping, and actual OEM parts. Saved lots of money !
Guest - August 31, 2019
Verified Purchase
★★★★★
★★★★★
Simple repair!
The part was received in a few days and fit perfectly!
Guest - September 16, 2019
Verified Purchase
★★★★★
★★★★★
Great part--FAST shipping!
Now I can use my chain saws. Looking forward to buying parts for two lawn mowers with worn out drive gears.
Philip C - December 27, 2019
Verified Purchase
★★★★★
★★★★★
Easy to repair came quickly
Parts came quick , exactly what I ordered, chain saw back to working great! Thank you!
Guest - February 1, 2020
Verified Purchase
★★★★★
★★★★★
chain saw purger
prompt shipping. would use again.
FRANCIS - May 26, 2020
Verified Purchase
★★★★★
★★★★★
fast
fast look up for a part ,Picturs and a video to help with installing, Fast shipping they have it all
Guest - September 1, 2020
Verified Purchase
★★★★★
★★★★★
The pot was the right one it was for my chainsaw thanks guys it worked out great
The pot was the right one it was for my chainsaw thanks guys it worked out great Part was the right one
Guest - January 18, 2022
Verified Purchase
  • 1
  • 2
  • 3

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Fuel pump ( bulb) replacement
Steve For model number Cs-310 - November 6, 2023

Hello Steve, Thank you for the question. The Purge Bulb is listed as Part Number: 12318139130. We hope this helps!

eReplacementParts Team
November 6, 2023

Did this question help you?
Thank you for voting!

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(44 rated repairs) ?
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Cracked purge bulb

Paul from Maunaloa, Hawaii

49 of 49 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
12318139130
Remove air cleaner and cover and slide small fuel feed line from purge bulb off metal tube of carburetor. Use a small screwdriver to gently pry the purge bulb feed from the bulb base. Pop the base up through the case with the screwdriver. Remove the small fuel feed from the old bulb and place it on the new bulb. Push the bulb down thr ough the case until seated. Put the larger purge bulb feed on the new bulb and put the small fuel feed on the metal tube from the carburetor. Replace the air cleaner and cover. Pump purge bulb a few times and start engine.
Read less
Did you find this story helpful?
Thank you for voting!

Purge bulb had begun to disintegrate

Robert from Hemphill, Texas

14 of 14 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
13031039132, 12318139130
Used screwdriver to remove bulb holder and bulb Removed fuel lines. Installed new bulb and fuel lines successfully. I also replace the air filter.
Did you find this story helpful?
Thank you for voting!

Purge bulb broke

JOHN from BAKERSFIELD, California

8 of 8 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Parts Used:
12318139130
1. Removed the air filter to expose the fuel hoses.
2. Removed the hoses from the purge bulb.
3. Used a small screwdriver to apply pressure to the wings of the purge bulb which released the bulb.
4. Place the new bulb in the holder, replaced the hoses, replaced the air filter, purged the bulb and star ted the chainsaw.
Read less
Did you find this story helpful?
Thank you for voting!

Purge bulb ruptured needed to be replaced.

Jim from Moscow, Idaho

8 of 8 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Parts Used:
12318139130
Check how to video online. Couldn\'t be any easier.

https://www.youtube.com/watch?v=P-7anv7UN08
Did you find this story helpful?
Thank you for voting!

Fuel purge bulb was ruptured

William from GRAPEVINE, Texas

5 of 5 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
12318139130
1. Remove air filter cover with medium large slot head screwdriver
2. Use two tiny slot head screwdrivers to compress purge bulb retainer prongs and with an assistant, pull old purge bulb out. A small pair of needle nose pliers can also be used to compress the bulb retainer prongs.
3. If necessary use tiny screwdriver to slid e fuel line from carburetor and large black line from fuel tank
4. Install both fuel lines on the new purge bulb, where they fit is obvious
5. Slide new purge bulb and attached fuel lines back into the carburetor housing and orient the assembly so small clear fuel line faces forward; then snap it in
6. Re-attach small fuel line to carburetor and larger black line to fuel tank
nipple
7 Reinstall air cleaner and attach filter cover
Read less
Did you find this story helpful?
Thank you for voting!

Clutch drum worn out, primer bulb cracked

Kenneth from New Smyrna, Florida

5 of 5 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set
Parts Used:
17500539134, V555000170, 12318139130
Remove chain cover chain and bar remove spark plug . Put rope in spark plug hole to stop piston from moving remove drum with spanner wrench.
Did you find this story helpful?
Thank you for voting!

Old fuel bulb cracked

Zach from Lebanon, Oregon

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
12318139130
I remove the air filter to get access to the carburetor and then I removed the fuel bulb put the new one on
Did you find this story helpful?
Thank you for voting!

Purge bulb disintegrated

Robert from CHURUBUSCO, Indiana

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
12318139130
Took off covers. Unhooked tubing. Used screwdriver to remove old part. Put in new purge bulb. Attached hoses.
Did you find this story helpful?
Thank you for voting!

Purge bulb cracked

James from Mertzon, Texas

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Parts Used:
V471001201, 13031039132, 12318139130
1. Remove air filter cover with screwdriver.
2. Remove air filter.
3. Remove vent tubes to carb from purge bulb.
4. Using long nose pliers, squeeze clips together that hold bulb to chain saw chassis.
5. Remove bulb and replace with new vent tubes installed, connect to tubes to carb.
6. Install new air filter and cover.
7. Test purge bulb.
Read less
Did you find this story helpful?
Thank you for voting!

Leaking gas and leaking oil

Ruben from Phoenix, Arizona

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Parts Used:
P021007630, 12318139130
It was very simple to change the primer bulb just had to remove the air filter to have access to the fuel line system and popped off the bulb. Removed the lines and pushed in the new lines on the new build and that\'s it, very simple, put air filter back and no more leaks.
Did you find this story helpful?
Thank you for voting!
  • 1
  • 2
  • 3

Model Cross Reference

This part works with the following models:
ERP Number: ERP8857246
Manufacturer Part Number: 12318139130
Brand Model Number Description
Shindaiwa 305s Chainsaw - Gasoline Chainsaws
Shindaiwa 340s Chainsaw - Gasoline Chainsaws
Shindaiwa 358Ts Chainsaw - Gasoline Chainsaws
Shindaiwa 402s Chainsaw - Gasoline Chainsaws
Hitachi CG22EAB Trimmer - Trimmer
Hitachi CG22EABSLP Trimmer - Grass Trimmer
Hitachi CG22EAD Trimmer - Trimmer
Hitachi CG22EADSLP Trimmer - 21.1cc Split Shaft Grass Trimmer
Hitachi CG24EAS Trimmer - Trimmer
Hitachi CG24EASP Brush Cutter - Engine Brush Cutter
Hitachi CG24EBD Trimmer - Trimmer
Hitachi CG24EBDP Trimmer - Trimmer
Hitachi CG24EBS Trimmer - Trimmer
Hitachi CG24EBSP Trimmer - Trimmer
Hitachi CG27EASP Brush Cutter - Engine Brush Cutter
Hitachi CM75EBPM Miter Saw - 14 Inch 75cc, 2 Stroke Gas Cut Off Saw With New /Purefire® Engine
Echo CS-271T Chainsaw - 26.9cc Top Handle Chainsaw
Echo CS-300 Chainsaw - Chainsaw
Echo CS-3000 Chainsaw - Chainsaw
Echo CS-301 Chainsaw - Chainsaw
Echo CS-303T Chainsaw - 30.1cc Top Handle Chain Saw
Echo CS-305 Chainsaw - Chainsaw
Echo CS-306 Chainsaw - C07511001001 - C07511999999 Chainsaw
Echo CS-310 Chainsaw - Chainsaw
Echo CS-340 Chainsaw - Chainsaw
Echo CS-3400 Chainsaw - Chainsaw
Echo CS-341 Chainsaw - Chainsaw
Echo CS-345 Chainsaw - Chainsaw
Echo CS-3450 Chainsaw - Chainsaw
Echo CS-346 Chainsaw - Chainsaw
