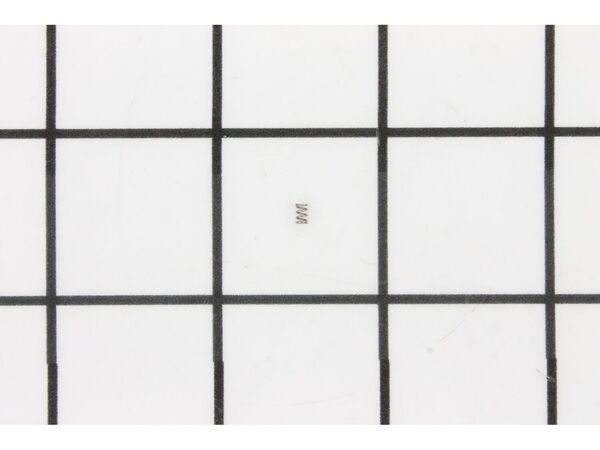

This click spring is sourced directly from the original equipment manufacturer for use with Shimano fishing reels. It is an important component that helps to apply tension on the click pin. This is a part of the click-drag mechanism that prevents the line from overextending under a heavy load. Over time it may wear out and lose tension eventually requiring a replacement. To ensure the correct installation of this hardware, check the diagrams of your specific model. Keep in mind this high-quality click spring is made of durable metal and is sold individually. You may need pliers and a screwdriver to perform this repair.
On the Shimano Curado 200DHSV
1. Pulled handled nut
2. Removed handle and star drag & nut plus washers.
3. Removed the 4 Right side plate screws & removed plate.
5. Installed Yoke springs .
6. Slid Right side plate back on & tightened the 4 screws.
7. Installed washers correctly , then drag nut, th
... Read moreen star drag.
8. Carefully set click pin and spring in the hole on star drag.
9. Installed click plate then new handle and nut then retainer.
10. Inspected and completed the Curado 200DHSV
On the Curado 200BSF
1.Put spool tensioner spring on and then tensioner.
2. Installed handle knob on handle - complete.
Started with driveshaft. Removed retainer, replaced bearing and washer. Cleaned and reversed process. Installed the driveshaft and lightly greased half the gear and secured the shaft to frame.
Installed clicker spring and pin, star drag cover and retainer.
Finished off by installing drag spring, star drag and remaining parts a
... Read morend securing with handle, nut, and protective cover.
Read less
