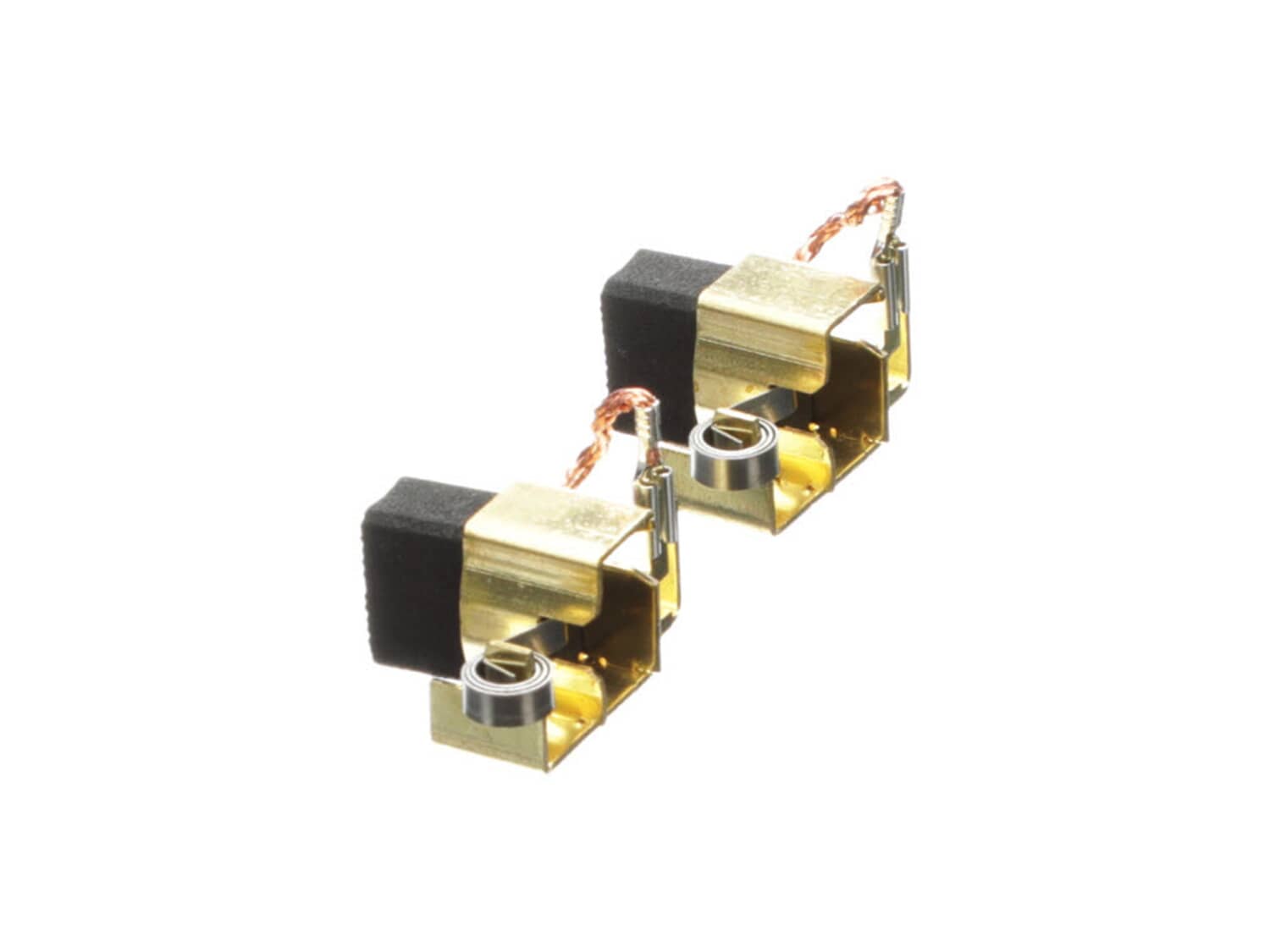

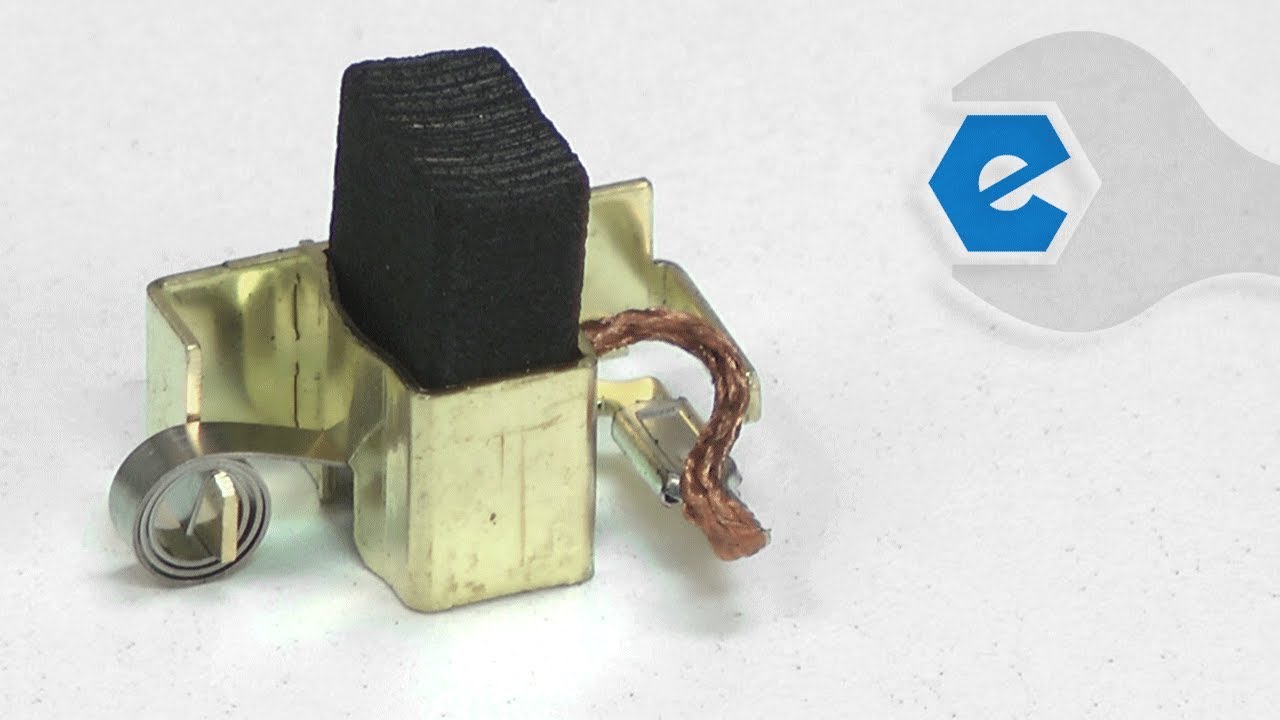

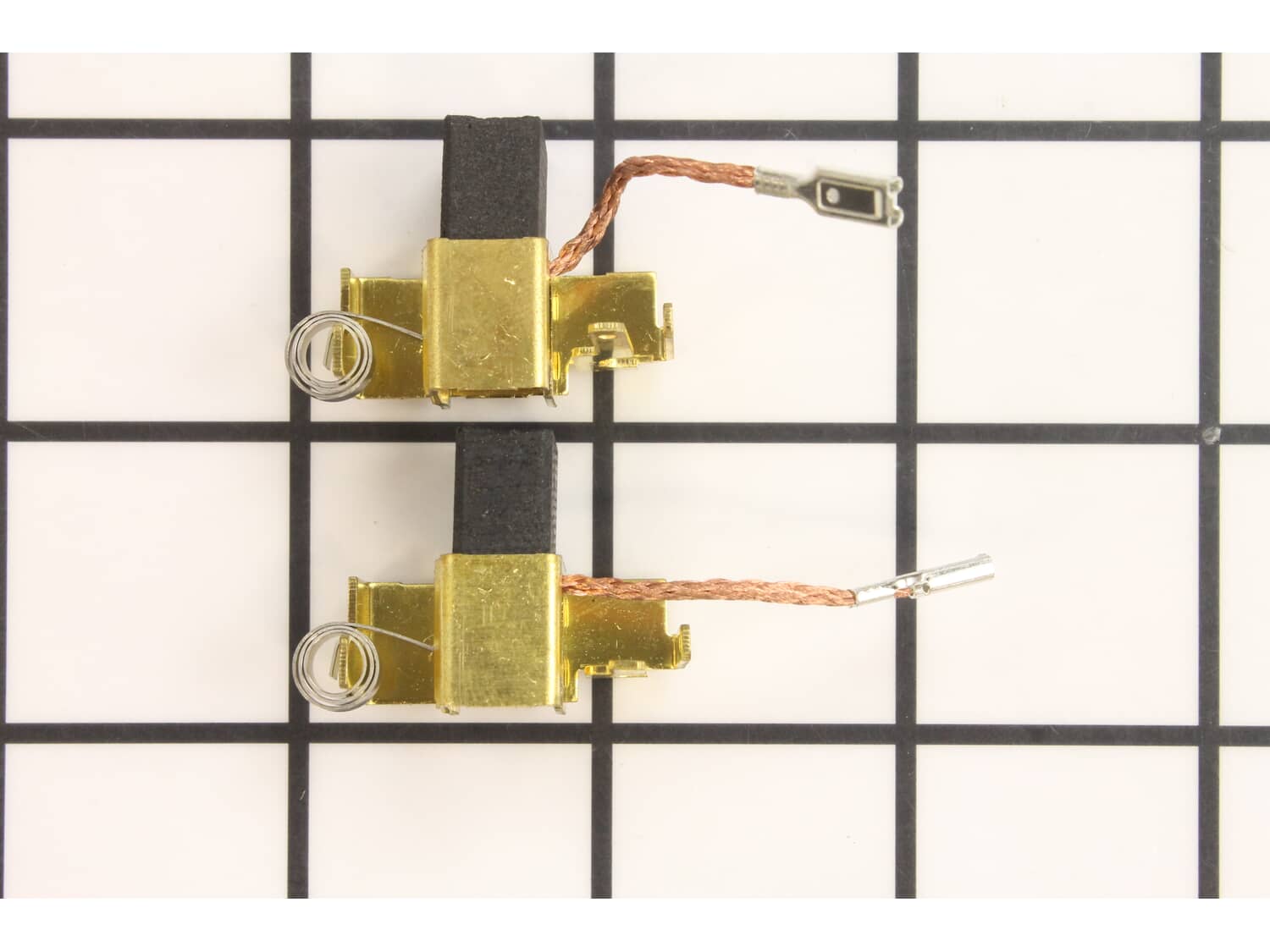

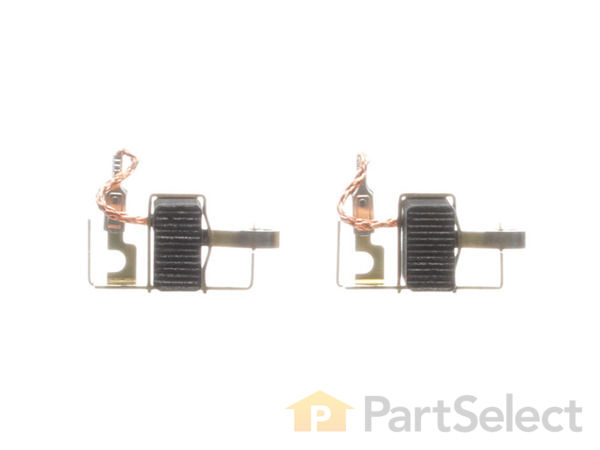

Genuine Milwaukee replacement part Includes two Carbon Brushes with wire lead,Brush Spring & Brush Holder. • Worn brushes frequently are the cause behind a motor running poorly. • Replacing brushes can fix a motor that's operating intermittently. • New brushes can restore a motor's electric braking. Carbon brushes are one of the most commonly replaced power tool parts. This is because carbon brushes are wear items, meaning that through friction and use they will gradually wear away until they need replacing. Worn brushes are a common causes of intermittent motor function, reduced electric braking and reduced motor power. A worn-out brush will often be worn down near to the wire lead and can be cracked, pitted, or burned. When replacing carbon brushes, be sure to inspect your armature for burns, cracks, or other damage which can indicate larger motor problems.
1. Take apart case with Torx bolts. You can leave the grinding head on.
2. Unplug wires from carbon brush brackets
3. Unscrew brackets from body of grinder
4. Replace brackets and brushes, ensuring brush is spring-loaded against armature
5. Plug wires back in and screw brackets to body
6. Reassemble case
... Read more/>Note: check armature for dirtiness and roundness. Out-of-round rotor can cause vibration and fatigue the brushes again. If the armature is damaged, the brush brackets will fail again from the vibration.
1/ disconnect electrical plug.
2/ remove Torx screws from handle.
3/ remove only one side at a time.
4/ remove the spade connector from the brush holder.
5/ remove the small Torx that holds the brush & holder,
6/ remove the old brush set.
7/ use a fine sandpaper to clean the armatureGǪ where the brus
... Read morehes make contact.
8/ install the new brush set, reinstalling the screw hold down and electrical connection.
9/ make sure you reroute the wires from where they were originally.
10/ replace the cover and repeat on the other side.
11/ screw the handle back together and youGÇÖre done!
1. Removed one side plate.
2. Removed carbon brush retaining screw.
3.Removed worn carbon brushes and replaced new brushes.
4. Reinstalled retaining screws and side covers and put new labels with grinder info.
P.S. Don\'t be worried if you have to bend pieces of the brushes to get them back into place it wi
... Read morell not affect the way it runs.
Angle Grinder
- 6" HP Angle Grinder With Slide Switch
✖
