How to Replace the Chuck on a DeWalt Impact Driver

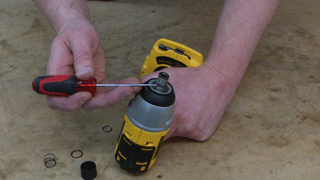

You may not need to replace the entire chuck in your impact driver, but if a bit breaks off inside of the chuck, you will need to remove the chuck. If your chuck is worn or jammed, then you will need to remove and replace it. This article shows you how to remove and re-install the chuck, allowing you to replace it or get at a stuck driver bit.
You can use our DeWalt parts finder to find chuck parts for your driver.
Replacing the Chuck
1. Remove the retaining ring

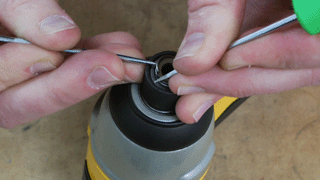

Use a pick and a small screwdriver to pry up one end of the retaining ring. Then pry it away from the drill.
2. Remove the chuck assembly

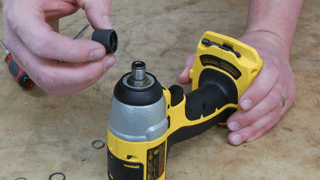

Remove the flat washer, spring, and chuck collar. There is a ball bearing in the driver's anvil. You do not have to remove this bearing, but be careful not to lose it.

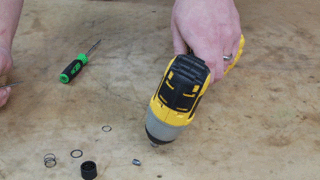

With the tension removed from the bearing, you can tap the driver on your work bench to remove a broken driver bit if that's why you removed the chuck.
3. Install the chuck assembly

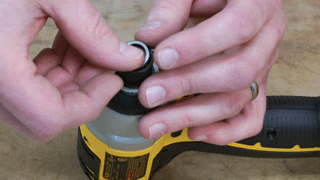

Slide the collar into place and add the spring and flat washer.
4. Install the retaining ring

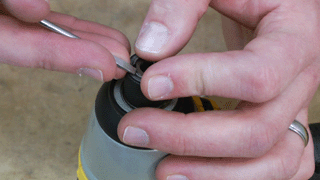

Use a screwdriver to snap one end of the retaining ring into place. Then use another screwdriver or your finger to finish seating the retaining ring.
Conclusion
And that's how you can remove or replace the chuck on your impact driver. This repair takes about 10 minutes and can be a life-saver if you get a bit stuck in your drill.
