Luckily, changing a vacuum belt is a very simple repair on most vacuum cleaners. Vacuum owners should never have to take their machine to a shop just for a belt replacement.
The first step in this (and any) part replacement is to accurately order the needed part for the repair.
For more information about the different kinds of vacuum belts available on the market and how to accurately order the correct belt for your vacuum, please read our "Vacuum Belt Buying Guide" article.
Vacuum Belt Replacement Steps Each specific vacuum style and model is different, so belt replacement steps can differ a little from one to the next. Despite these differences, all vacuum belt replacements share similar qualities. This article's instructions are generalized so that they can help do-it-yourself vacuum owners with their belt change repairs, regardless of the vacuum type or model. We use a common upright style vacuum for our belt replacement demonstration, The Hoover U5458-900 WindTunnel Supreme. This repair can take less than five minutes on most vacuums, especially once an owner is familiar with their model. 1. Access the vacuum belt and brushroll area.
Vacuum belts work to spin a vacuum's brush roller and/or, on some self-propelled models, to turn a vacuum's wheels.
Whatever the style of vacuum, this repair will take place in the machine's brushroll area.

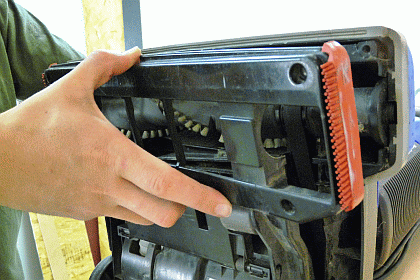

For most vacuum cleaners, opening the brushroll area just means removing a bottom plate on the cleaner, one similar to the Hoover WindTunnel pictured below.
In the case of our demonstration model, removing the bottom plate only involves unscrewing four Phillips screws.
[Back to top]
2. Remove the brush roller and the old belt.
Now that the bottom plate is off, the old (or broken) belt will easily come out of the vacuum.

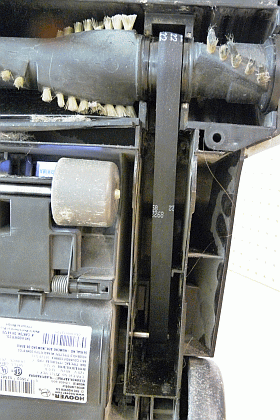

Before removing the old belt and the brush roll, take a look at how they are arranged in the vacuum and how they connect to each other.

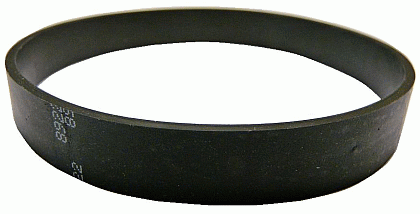

The belt on our Hoover WindTunnel (pictured below) is a flat vacuum belt type that is held between the motor shaft and the brush roller by its elastic tension.
First, pull the brushroll out of the vacuum and slide it out of the belt loop. Then, remove the other end of the vacuum belt from the motor shaft. [Back to top] 3. Install the new vacuum belt on the motor shaft and brush roller.
Heads up! If your vacuum model takes a round or flat vacuum belt type, that means the belt is held between the motor shaft and the brushroller with tension. The new belt may seem too small for the vacuum.
This is most-likely normal and to be expected. Double check that you have the right part for your vacuum just in case, but be aware that round and flat vacuum belt types stretch a great deal over time. Geared and v-belts also stretch, but not nearly as much.
The old belt you are replacing will most likely appear much bigger when held up to the new belt on account of all the stretching it has gone through with vacuum use.

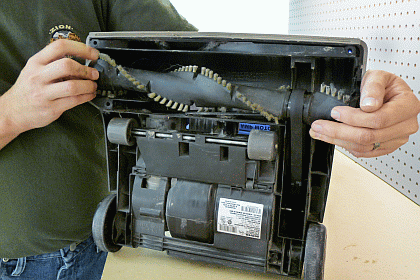

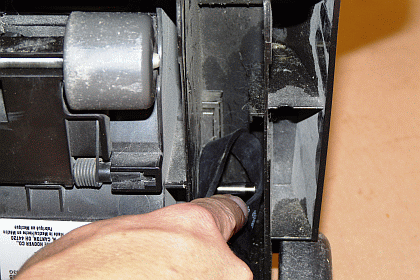

First, slide the new vacuum belt around the vacuum motor shaft. Once it's on the shaft, thread the brush roll through the other end of the belt. [Back to top] 4. Install the brush roller with the belt correctly positioned on it.
Whatever the vacuum style, the idea is to return the brushroll and belt to their original positions before closing up the vacuum housing.
For vacuums that use round and flat belts, a little muscle is needed to pull the brushroll into position with that unstretched new belt on it.
On our demonstration vacuum, the side of the brushroll opposite the belt has notch that fits into the vacuum. After installing that side of the brush, a good pull on the belt side of the roller will snap it right into place (watch your fingers).
This is actually much easier if done standing over the vacuum with it lying on the ground. A carefully placed foot can provide the right counterweight.
5. Reassemble the vacuum.
Return the bottom plate of the vacuum and/or any other housing pieces removed to access the brushroll area. For the WindTunnel, that just means returning those four Phillips screws and bottom plate removed earlier. This repair is now complete. Depending on the vacuum belt type, your new vacuum agitator belt can last you months to years before another replacement. [Back to top] Conclusion To see our full inventory vacuum cleaner belts here at eRepalcementParts.com, visit our Vacuum Belts page. The belts displayed on the page can be filtered by style, shape, and manufacturer thanks to our integrated search features. To navigate directly to the belt that fits your specific vacuum, enter your vacuum's model number in the search field at the top of this page. Clicking go will take you to your vacuum's parts page and breakdown diagram. Thank you for taking advantage of this eReplacementParts information resource! [Back to top] What we're about.
