Part Location Diagram of W11478524 Whirlpool User Interface Panel
See part 1 in the diagram
( Grid squares measure 1x1 inch )

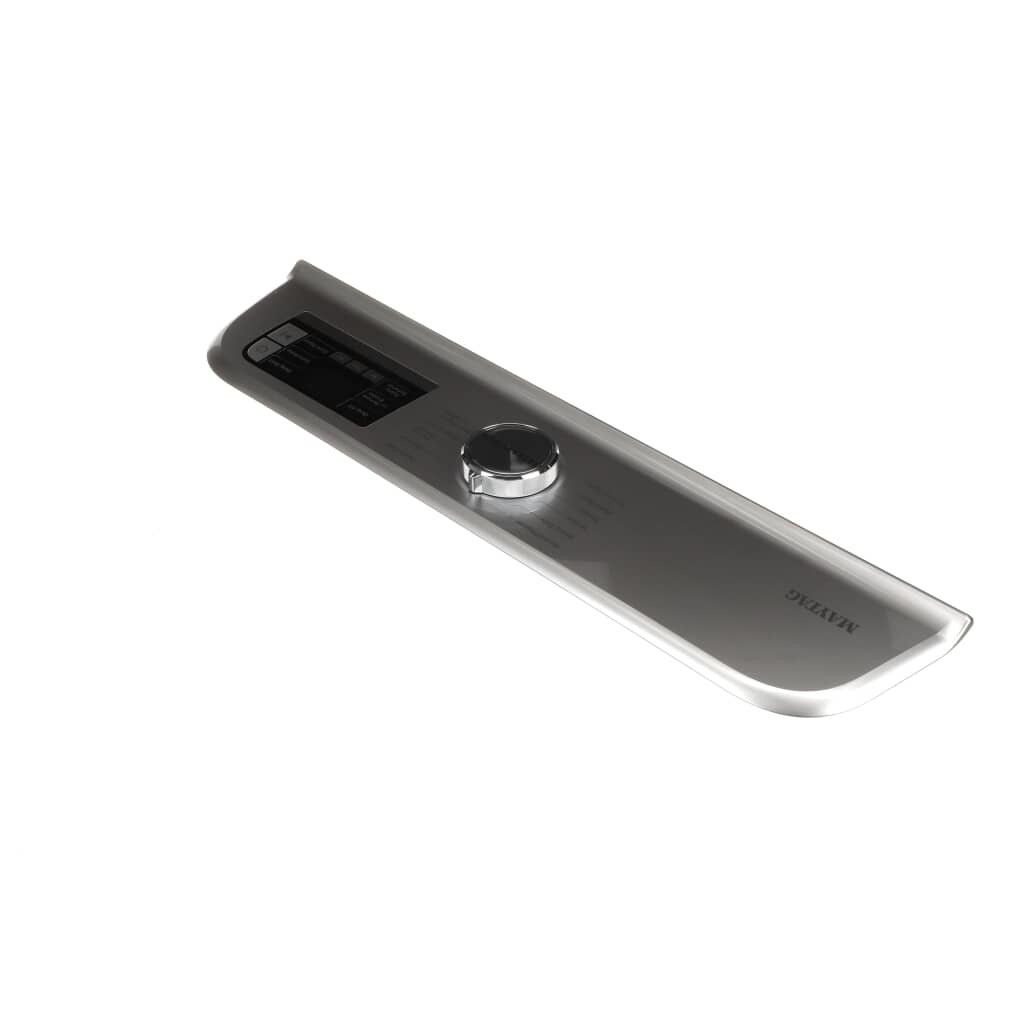

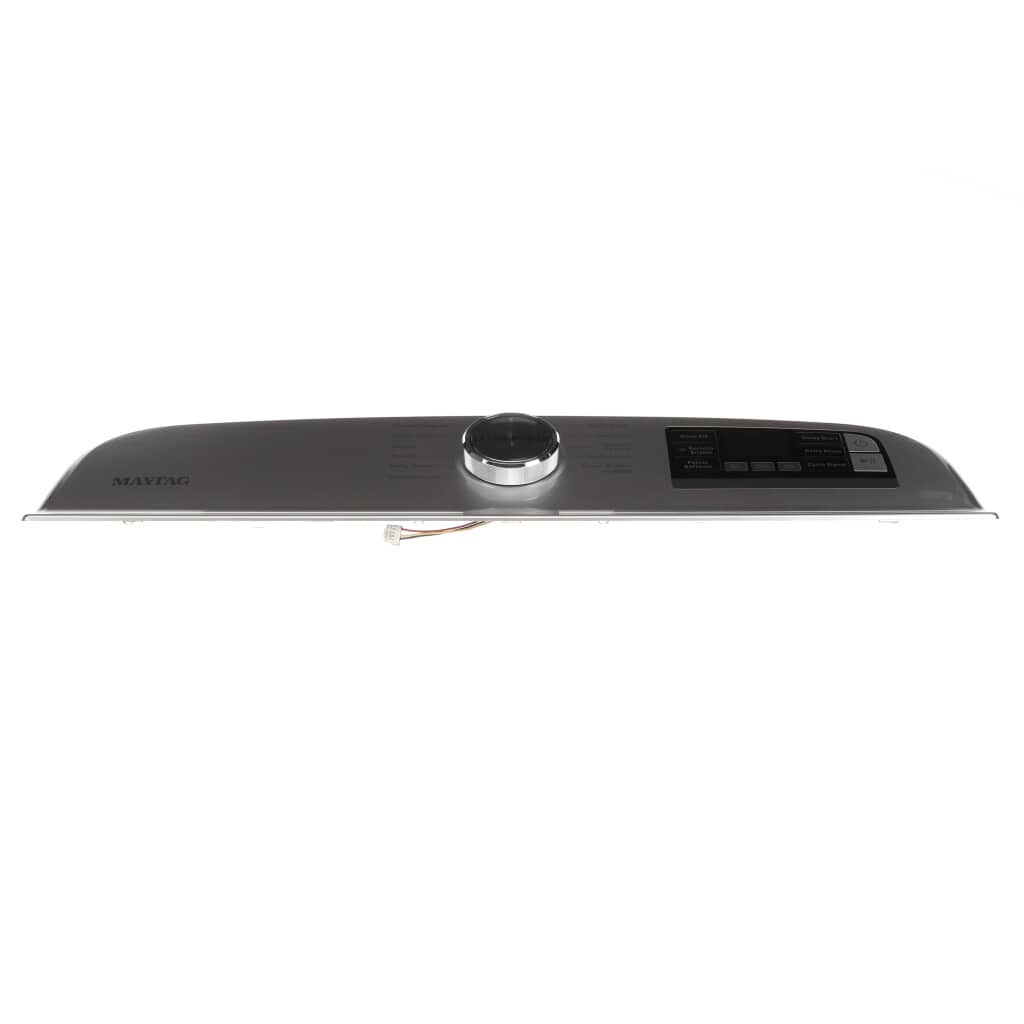

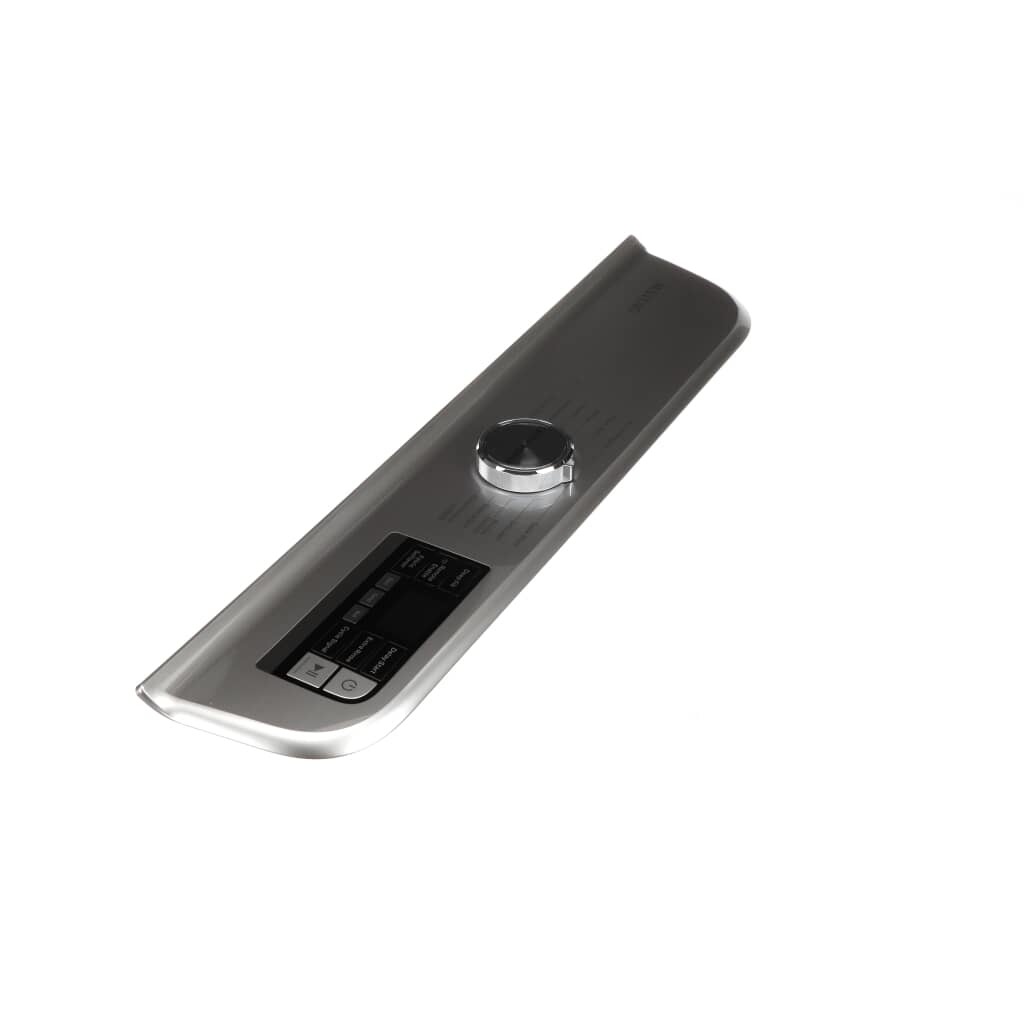

User Interface Panel W11478524

Manufactured by:
Whirlpool
ERP Number:
ERP16221057
Part Number:
W11478524
Original Equipment Manufacturer ?
$309.43
Special Order

Does this part fit my model?

Need help finding your model number?

Product Description

?

Restore full functionality to your washing machine with this genuine user interface control panel assembly. This component houses the display and buttons that allow you to select wash cycles, water temperature, spin speed, and other settings. Built from durable materials to withstand regular use, it ensures accurate communication between your selections and the appliance’s internal systems. Ideal for fixing issues such as non-responsive buttons, a blank or unreadable display, or inability to start the washer. Installation is straightforward—disconnect power, remove the old panel, and secure the new assembly in place.

Troubleshooting

This part works with the following brands:
  • Maytag
  • Whirlpool
This part works with the following products:
  • Washer
Part# W11478524 replaces these:
W11130428, W11413404,

Model Cross Reference

This part works with the following models:
ERP Number: ERP16221057
Manufacturer Part Number: W11478524
Brand Model Number Description
Maytag MVW6230HC0 Washer
Maytag MVW6230HC1 Washer - Washer
Whirlpool MVW6230HC2 Washer - Washer
Maytag MVW6230HC4 Washer - Washer
Maytag MVW6230HW0 Washer
Maytag MVW6230HW1 Washer - Washer
Whirlpool MVW6230HW2 Washer - Washer
Maytag MVW6230HW3 Washer - Washer
Maytag MVW6230HW4 Washer - Washer
Maytag MVW6230RHW0 Washer
Maytag MVW6230RHW1 Washer - Washer
Whirlpool MVW6230RHW2 Washer - Washer
Maytag MVW6230RHW4 Washer - Washer
