11739287-1-M-Whirlpool-WP22001530-Washer Timer
Part Location Diagram of WP22001530 Whirlpool Washer Timer
See part 17 in the diagram

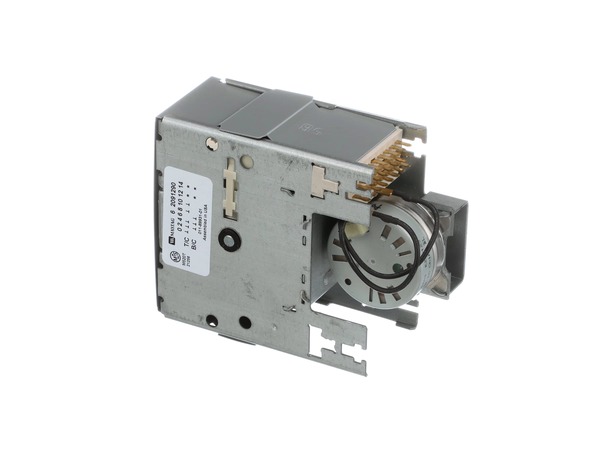

11739287-1-S-Whirlpool-WP22001530-Washer Timer 360 view

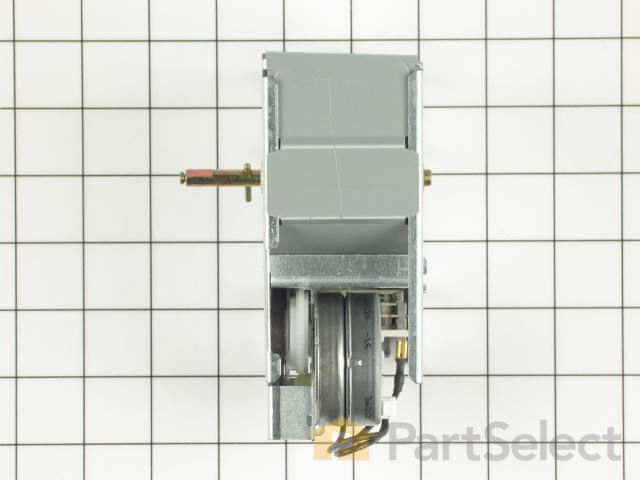

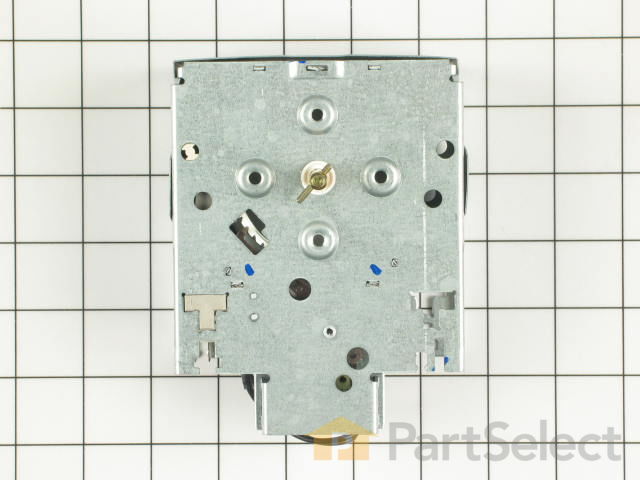

( Grid squares measure 1x1 inch )
11739287-1-S-Whirlpool-WP22001530-Washer Timer 11739287-2-S-Whirlpool-WP22001530-Washer Timer 11739287-3-S-Whirlpool-WP22001530-Washer Timer 11739287-1-S-Whirlpool-WP22001530-Washer Timer 360 view
Part Location Diagram of WP22001530 Whirlpool Washer Timer

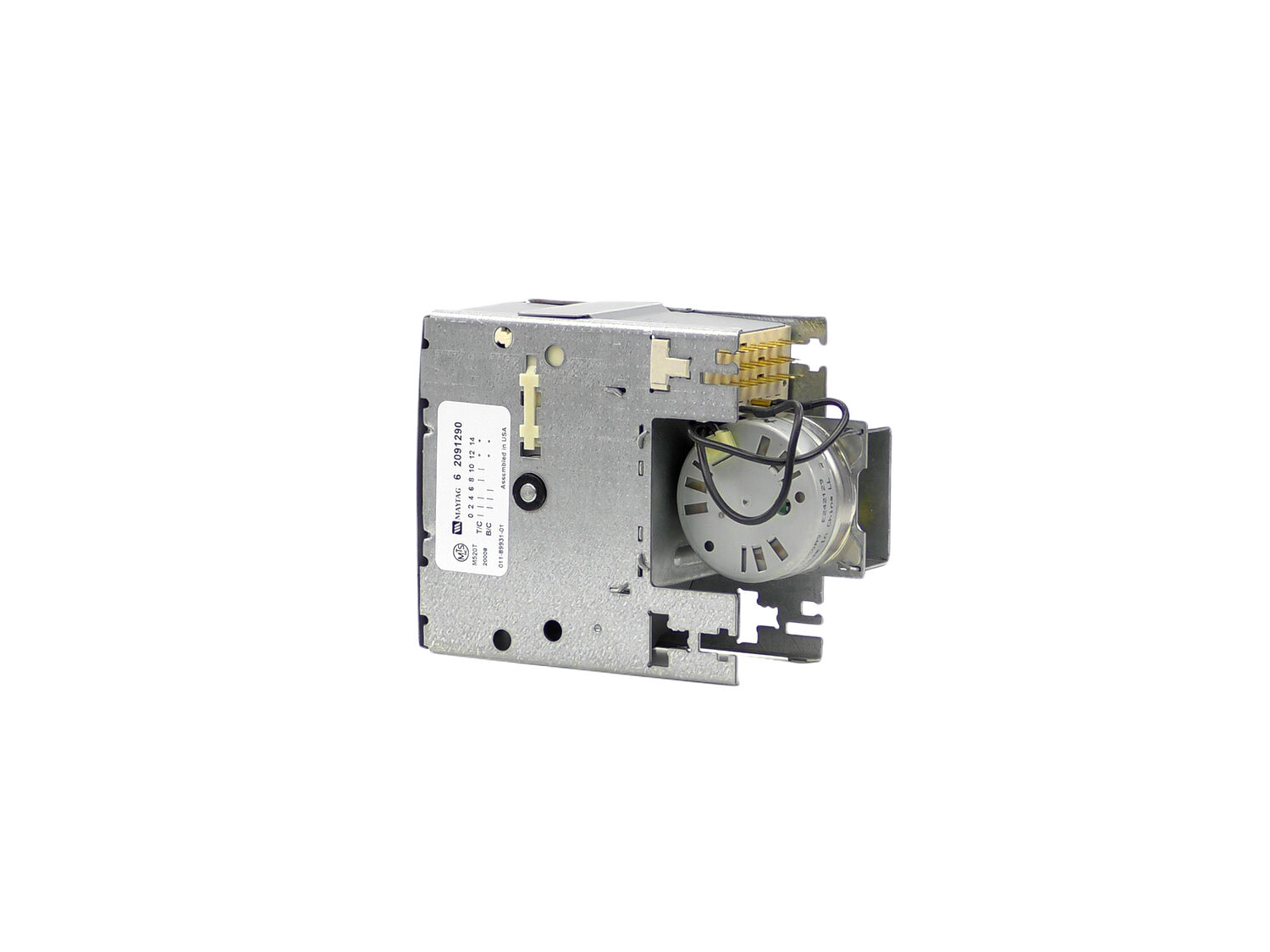

Washer Timer WP22001530

Manufactured by:
Whirlpool
ERP Number:
ERP11739287
Part Number:
WP22001530
Original Equipment Manufacturer ?
$247.67
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Troubleshooting Model Cross Reference

Product Description

?

The timer controls most of the operations of the washer: water level, tub filling and emptying, length of cycles, and cycle setting sequences.

Troubleshooting

This part fixes the following symptoms:
  • Will not agitate
  • Will Not Start
  • Will not drain
This part works with the following brands:
  • Maytag
This part works with the following products:
  • Washer
Part# WP22001530 replaces these:
AP6006220, 22001027, 22001530,

Model Cross Reference

This part works with the following models:
ERP Number: ERP11739287
Manufacturer Part Number: WP22001530
Brand Model Number Description
Maytag LAT5004AAW Washer - Residential
Maytag LAT5005AAE Washer - Residential
Maytag LAT5005AAW Washer - Residential
Maytag LAT5005ABW Washer - Residential
Maytag LAT8005AAE Washer - Residential
Maytag LAT8005AAM Washer - Residential
Maytag LAT8035AAE Washer - Residential
Maytag LAT8035AAM Washer - Residential
Maytag LAT9205AAE Washer - Residential
Maytag LAT9205AAM Washer - Residential
