Part Location Diagram of 809020007 Frigidaire UI BOARD ASSEMBLY
See part F16 in the diagram
( Grid squares measure 1x1 inch )

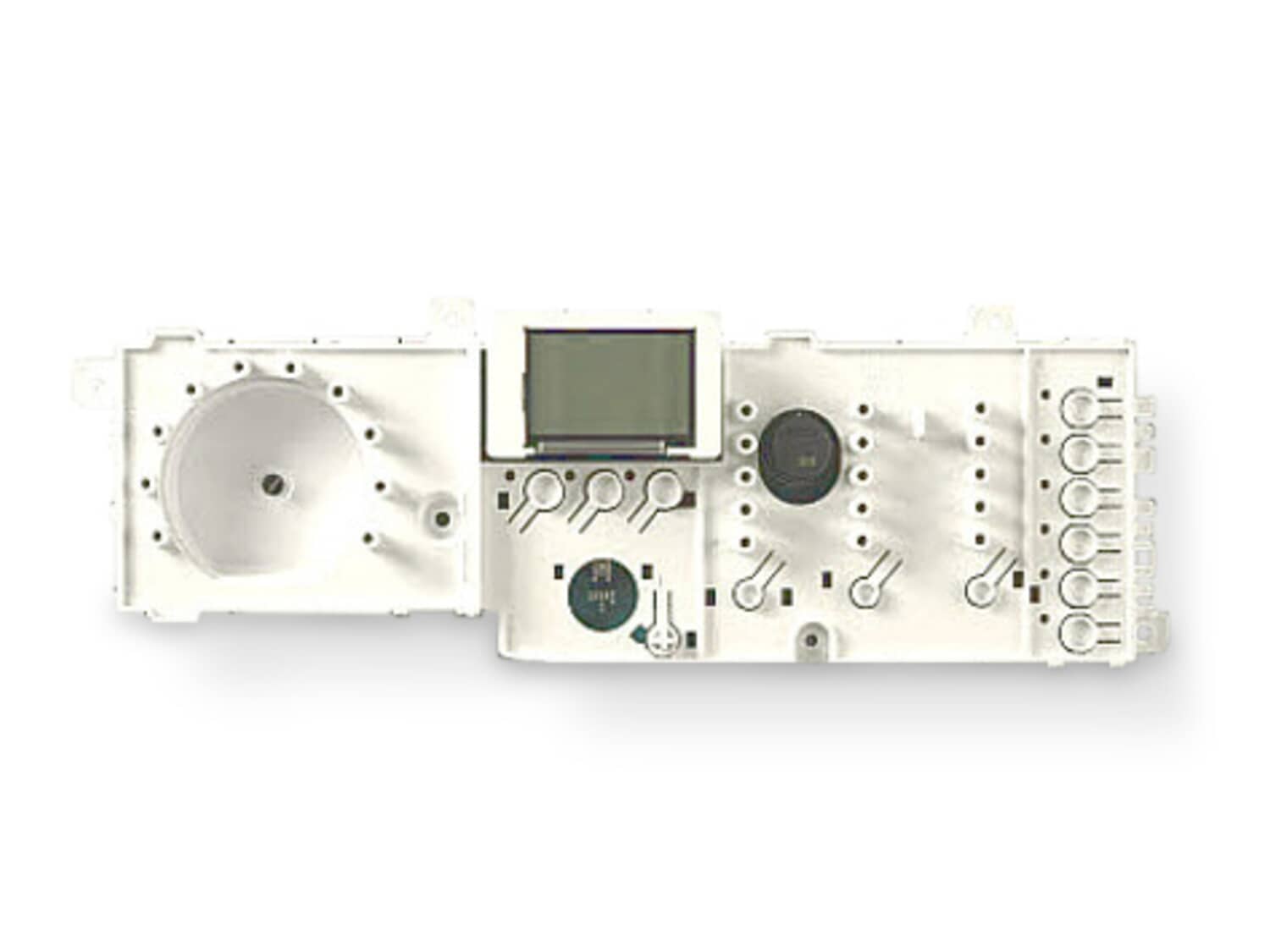

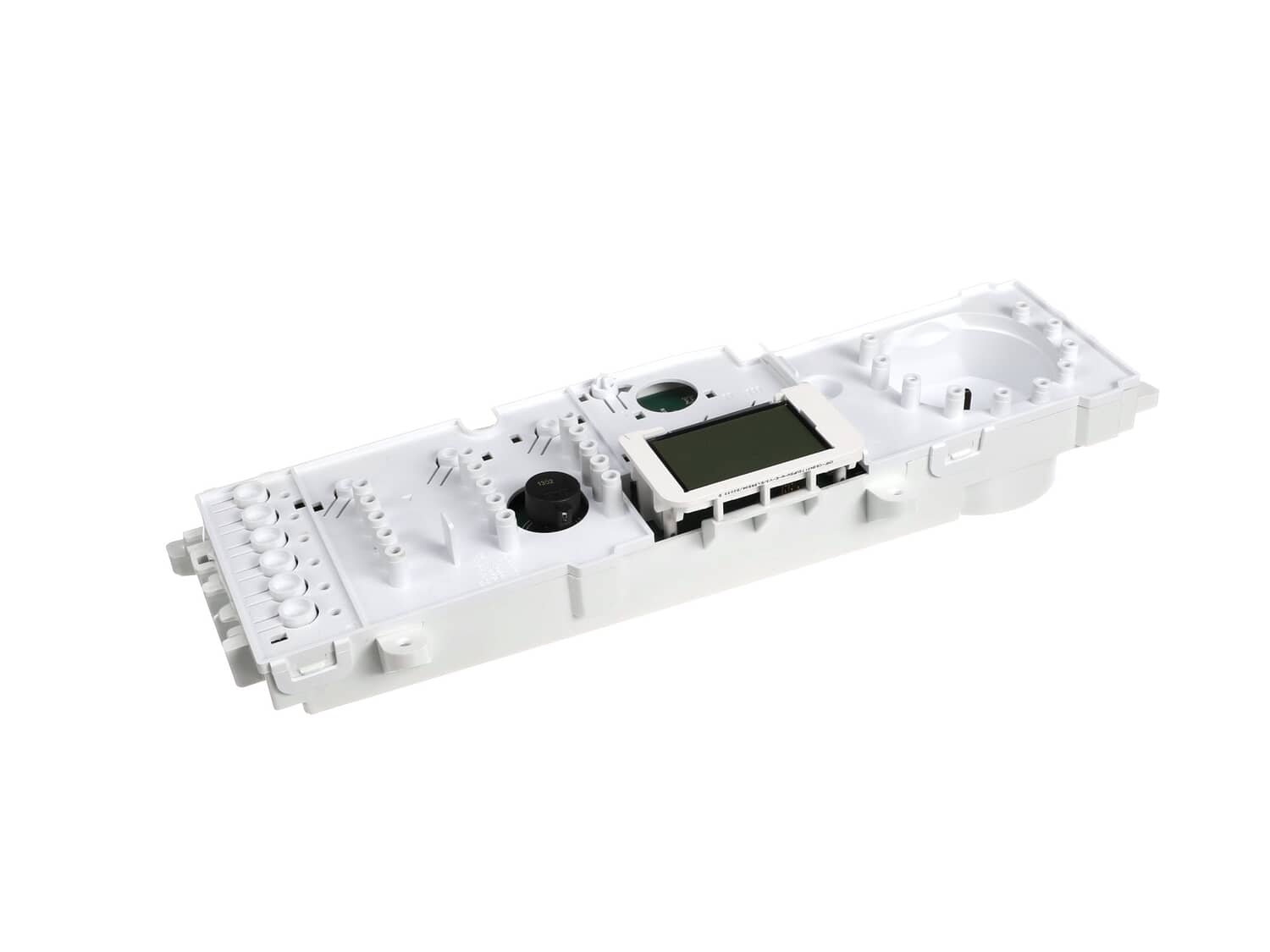

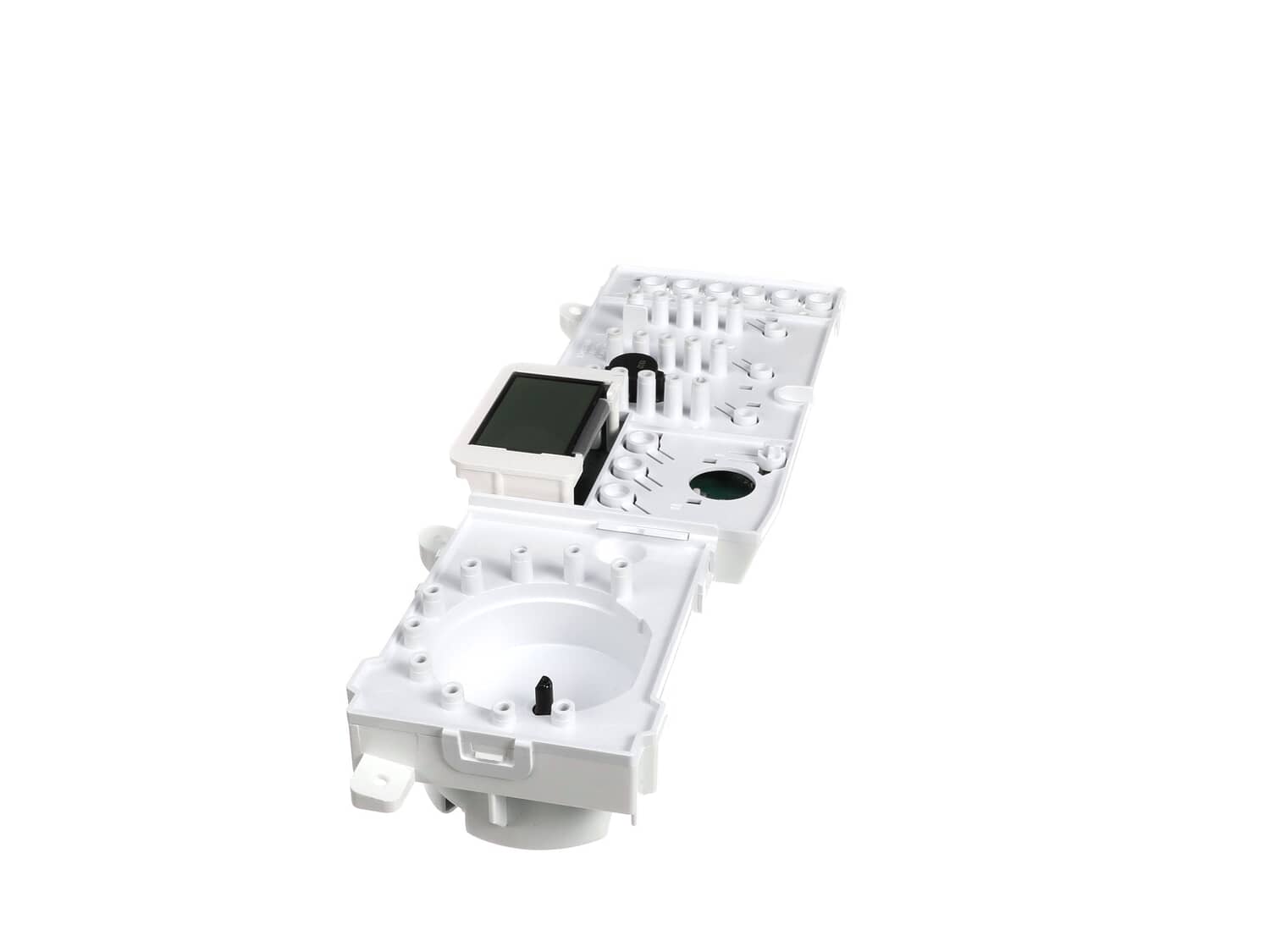

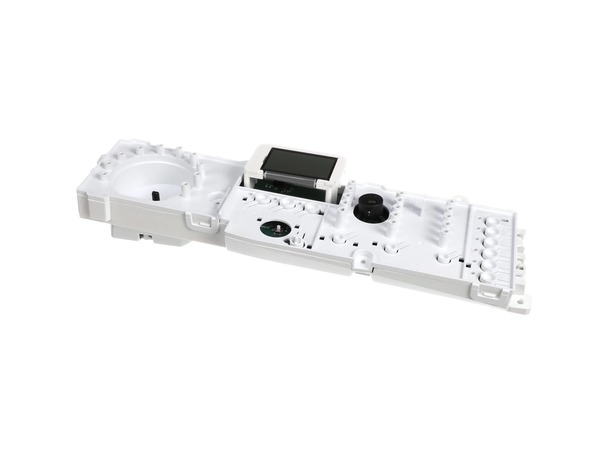

UI BOARD ASSEMBLY 809020007

Manufactured by:
Frigidaire
ERP Number:
ERP11728636
Part Number:
809020007
Original Equipment Manufacturer ?
$328.48
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Product Description

?

This washer user interface control board serves as the main control panel for operating the machine, allowing you to select cycles, adjust settings, and view status information. It communicates user inputs to the internal control system to manage key functions like washing, draining, and spinning. Replacement is recommended if the controls are unresponsive, the display is blank or erratic, or the washer will not start, helping restore normal operation and ease of use.

Troubleshooting

This part works with the following brands:
  • Electrolux
  • Frigidaire
This part works with the following products:
  • Washer
Part# 809020007 replaces these:
134994920, 809020003,

Model Cross Reference

This part works with the following models:
ERP Number: ERP11728636
Manufacturer Part Number: 809020007
Brand Model Number Description
Electrolux EIFLS60JIW0 Washer
Frigidaire EIFLS60JIW1 Washer
Electrolux EIFLS60JMB0 Washer
Electrolux EIFLS60JRR0 Washer
Electrolux EIFLS60LSS0 Washer - EIFLS60LSS >=27" FRONT LOAD WASHING MACH
Frigidaire EIFLS60LSS1 Washer
Electrolux EIFLS60LT0 Washer - EIFLS60LT >=27" FRONT LOAD WASHING MACH
Electrolux EIFLS60LT1 Washer - EIFLS60LT >=27" FRONT LOAD WASHING MACH
