11762344-1-M-GE-WB10X24542-CHAIN Assembly KIT
Part Location Diagram of WB10X24542 GE CHAIN Assembly KIT
See part 270 in the diagram
( Grid squares measure 1x1 inch )
11762344-1-S-GE-WB10X24542-CHAIN Assembly KIT Part Location Diagram of WB10X24542 GE CHAIN Assembly KIT

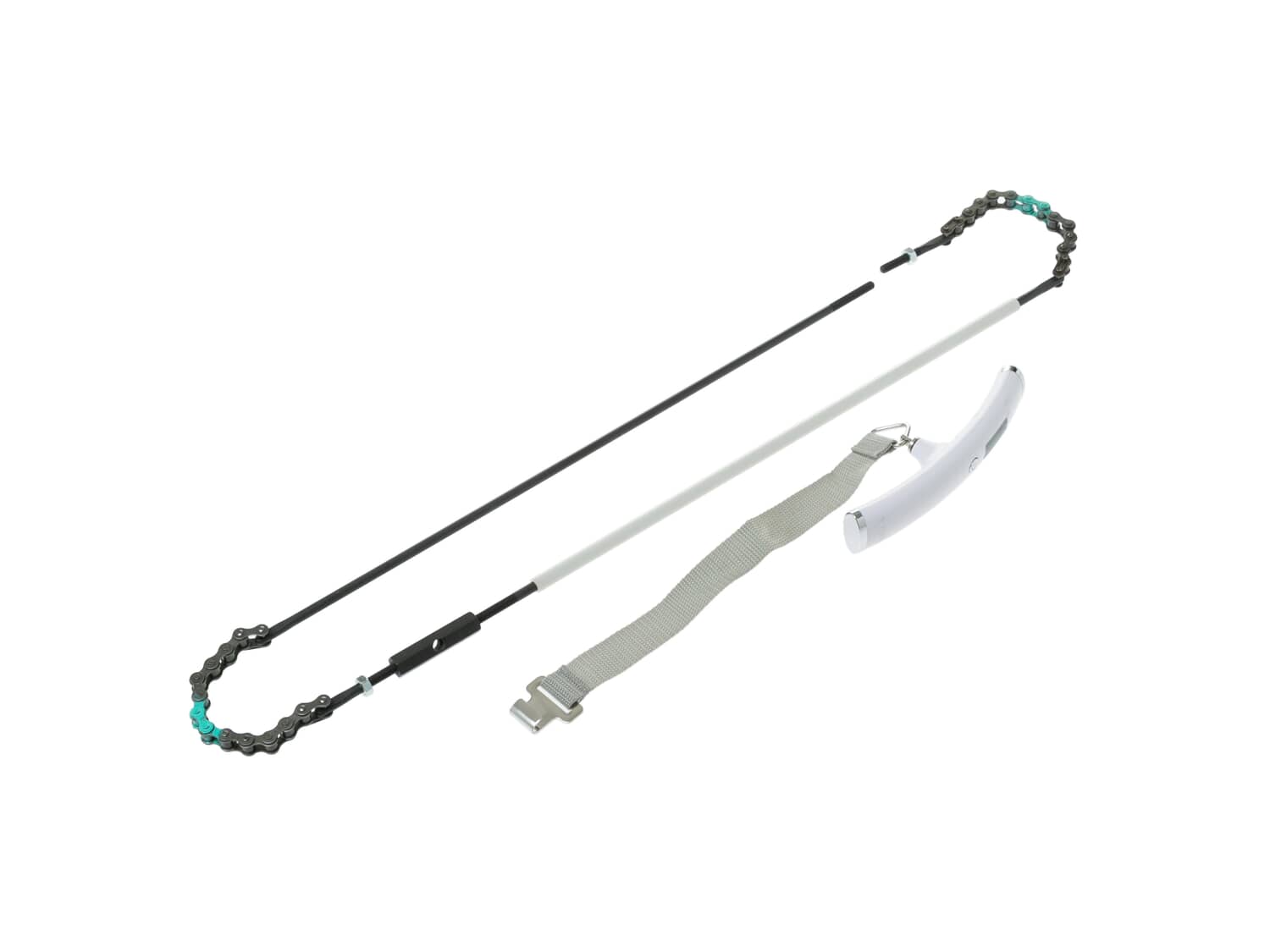

CHAIN Assembly KIT WB10X24542

Manufactured by:
GE
ERP Number:
ERP11762344
Part Number:
WB10X24542
Original Equipment Manufacturer ?
$321.87
Special Order

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Model Cross Reference

Troubleshooting

This part works with the following brands:
  • General Electric
This part works with the following products:
  • Wall Oven
  • Range
Part# WB10X24542 replaces these:
WB10X23777,

Model Cross Reference

This part works with the following models:
ERP Number: ERP11762344
Manufacturer Part Number: WB10X24542
Brand Model Number Description
General Electric CT9070SH1SS Wall Oven - ELECTRIC OVEN
General Electric CT9070SH2SS Wall Oven
General Electric CT9070SH3SS Wall Oven
General Electric CT9070SH4SS Wall Oven
General Electric CT9070SH5SS Range - GE Cafe Electric Range
General Electric CT9570SL1SS Wall Oven - ELECTRIC OVEN
General Electric CT9570SL3SS Range - GE Cafe Electric Range
General Electric CTD90FP2M1S1 Range
General Electric CTD90FP2N1S1 Range - GE Cafe Electric Range
General Electric CTD90FP2N2S1 Wall Oven - Electric Oven
General Electric CTD90FP2N3S1 Wall Oven - Café™ Professional Series 30 Inch Smart Built-In Convection French-Door Double Wall Oven
General Electric CTD90FP2N4S1 Wall Oven
General Electric CTD90FP3M1D1 Range
General Electric CTD90FP3M2D1 Range - GE Cafe Electric Range
General Electric CTD90FP3N1D1 Range - GE Cafe Electric Range
General Electric CTD90FP3N2D1 Wall Oven - Electric Oven
General Electric CTD90FP3N3D1 Wall Oven - Café™ Professional Series 30 Inch Smart Built-In Convection French-Door Double Wall Oven
General Electric CTD90FP3N4D1 Wall Oven
General Electric CTD90FP4M1W2 Range
General Electric CTD90FP4M2W2 Range - GE Cafe Electric Range
General Electric CTD90FP4N1W2 Range - GE Cafe Electric Range
General Electric CTD90FP4N2W2 Wall Oven - Electric Oven
General Electric CTD90FP4N3W2 Range
General Electric CTD90FP4N4W2 Wall Oven - Café™ Professional Series 30 Inch Smart Built-In Convection French-Door Double Wall Oven
General Electric CTD90FP4N5W2 Wall Oven
General Electric CTS90FP2M1S1 Wall Oven
General Electric CTS90FP2N1S1 Range - GE Cafe Electric Range
General Electric CTS90FP2N2S1 Wall Oven - Electric Wall Oven
General Electric CTS90FP2N3S1 Wall Oven - Café™ Professional Series 30 Inch Smart Built-In Convection French-Door Single Wall Oven
General Electric CTS90FP2N4S1 Wall Oven
CHAIN Assembly KIT
$ 321.87
Special Order
✖
