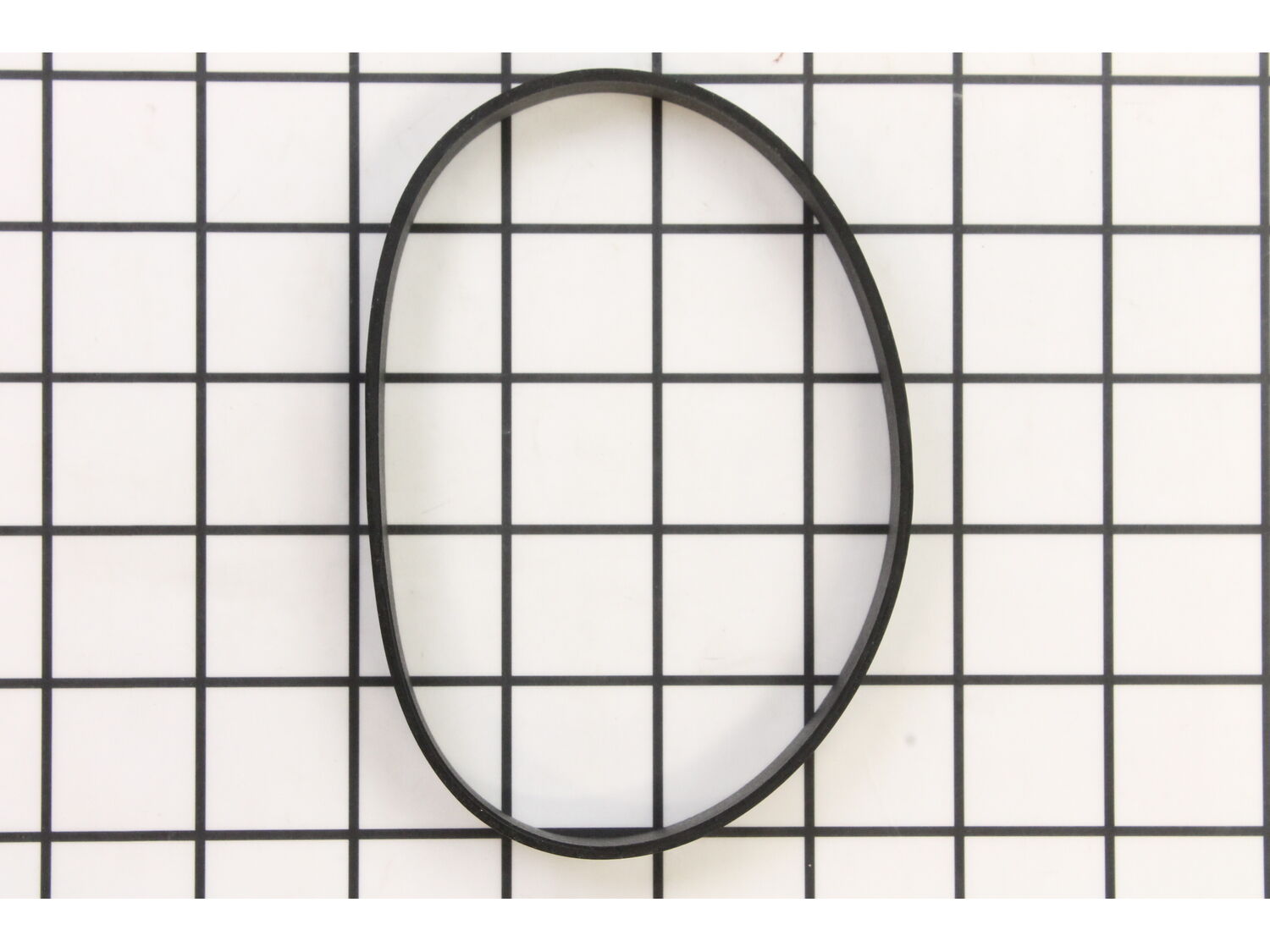

This is a genuine manufacturer sourced replacement tyle 5 drive belt used on Dirt Devil and Royal upright vacuums. It is used to drive the brush roll assembly. This belt is made out of rubber material and it is sold individually. Over time belts will wear out and stretch requiring replacement. It is recommended to replace these belts every 6 months to ensure optimum performance. Replacing a belt of an upright vacuum is a simple and quick task that should only require a screwdriver. • Ensure the vacuum is unplugged • First remove the bottom plate • Slide the belt off the motor shaft • Lift and remove the brush roll • Remove the old belt • Place the new belt on the motor shaft • Slide the brush roll through the belt • With belt in place, pull and slide brush roll into nozzle • Secure the bottom plate • Reattach nozzle guard
Troubleshooting
This part works with the following brands:
Dirt Devil
Royal
This part works with the following products:
Upright Vacuum
Part# RO-720310 replaces these:
1LV1000000, RO-1LU0310X00, RO-LV1000,
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
5 stars
1
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Part is perfect fit
Part is exactly like the old one. Could not be happier with it!
Iglobal - December 9, 2021
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Remove the screws on the bottom of the vacuum with a phillips head screwdriver
Removed the tattered belt
Put the new belt on the motor shaft
Put it around the end of the brush roll
Installed the brush roll into the side brackets
Re-screwed the bottom back on the vacuum
DONE!
Remove the nozzle guard assembly.
Remove the brush roller.
Remove the old belt and clean the area.
Place the belt on the motor shaft.
Place the belt on the end brush roller and pull on the brush roller to place it in the side brackets.
Replace the nozzle guard assembly.
Changing the belt was easy
Remove screws and take belt brush cover off
Then remove roller and belt
Put belt on shaft and roller
Put roller back in place and put guard back on
I simply put one end of the belt around the pulley, the other end around the end of the brush, and slid both ends of the brush in place. I used a screw driver to put the cover over the brush and was finished. No special instructions were necessary.
1. Unplug the cord.
2. Remove 5 screws holding the base plate.
3. Lift out the brush.
4. Remove the broken belt.
5. Install the new belt on the motor shaft and the brush.
6. Replace the brush in place.
7. Replace the base plate & 5 screws.
8. Plug in the cord to test run.
