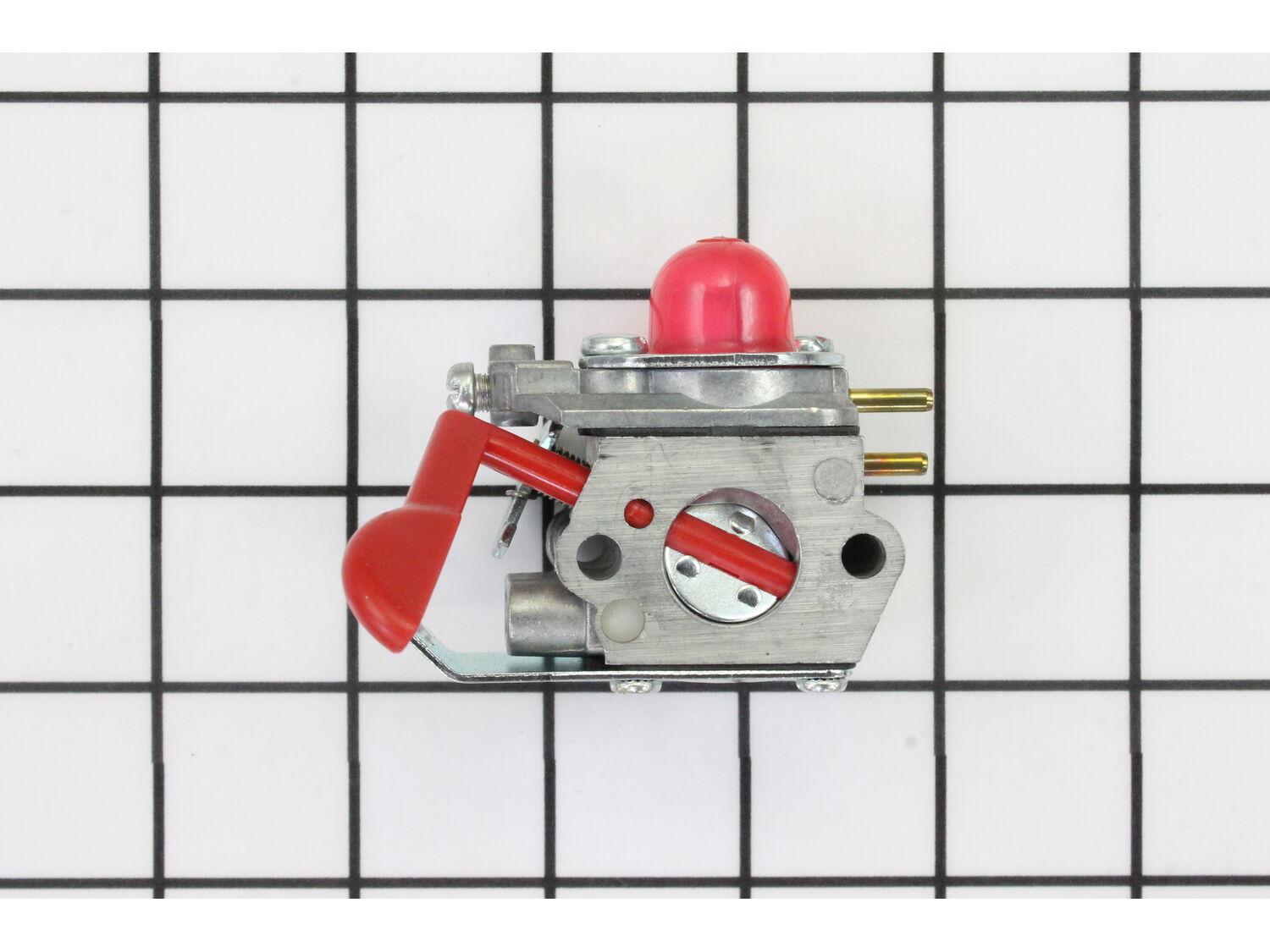

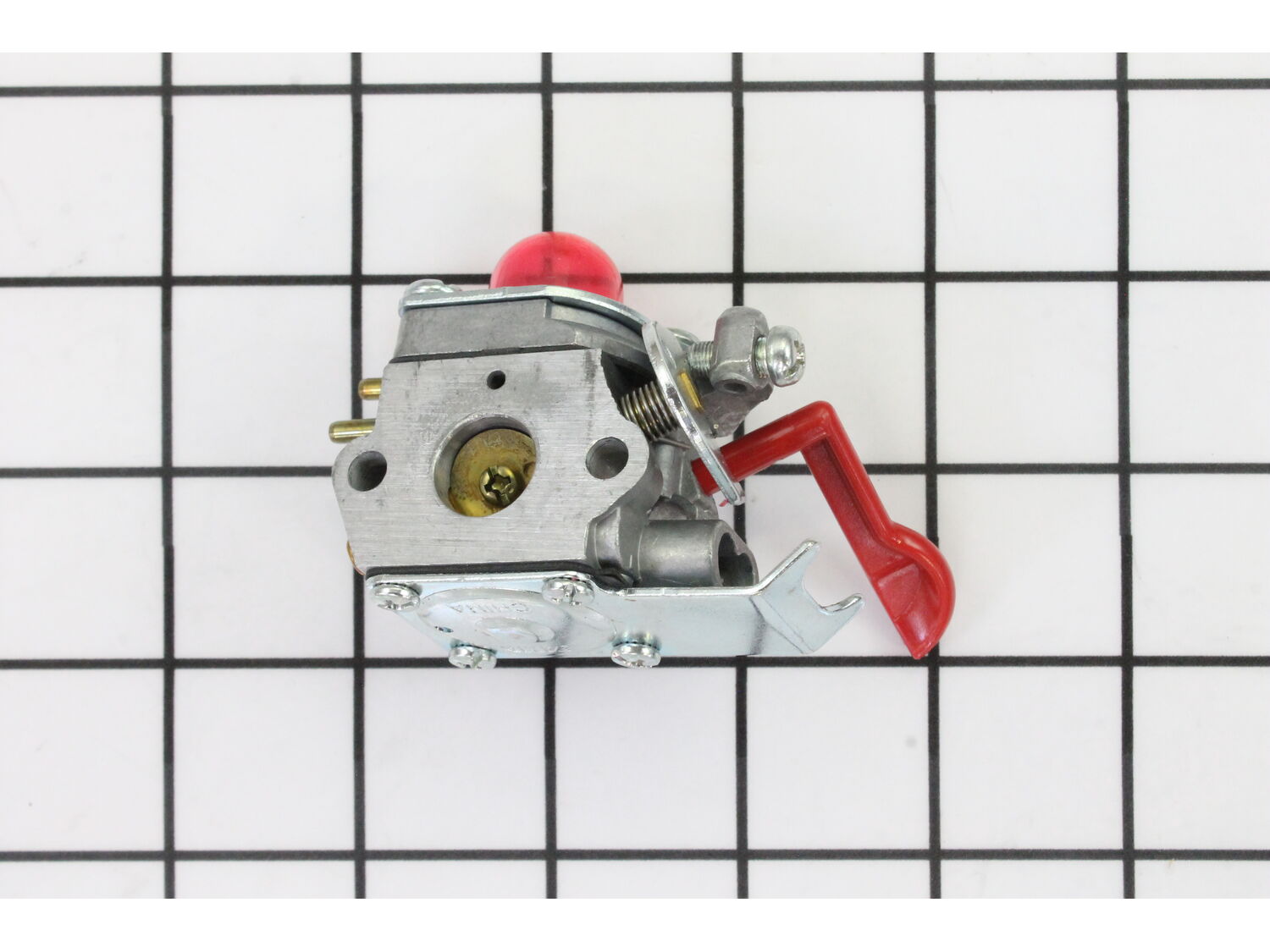

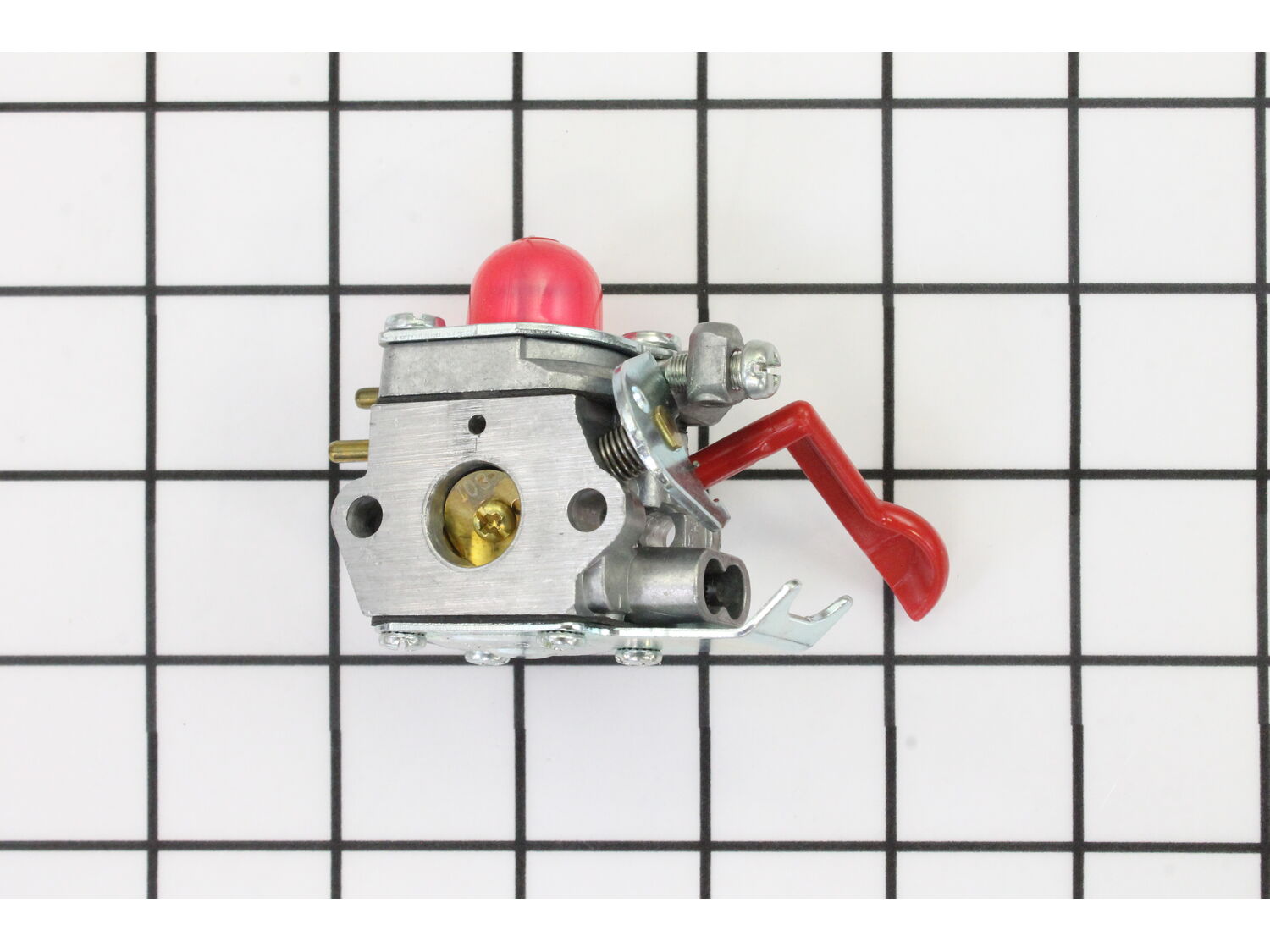

This is a manufacturer approved replacement part used on gas trimmers. The purpose of this part is to mix air and gas before the fuel mix goes to the engine. If the engine won\\\'t start and the tank is full of fresh fuel, test the carburetor by removing the air filter and pouring about a teaspoon of fuel into the carburetor. Pull the starter rope. If the engine starts and then quickly dies, the carburetor is likely the problem. This assembly includes a metal body carburetor, rubber o-ring and a plastic lever. When replacing carburetor it is advised that you also replace carburetor gaskets to ensure proper air tight seal for optimum performance. You will need a screwdriver to perform this repair.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Carb
Great item thanks.
Guest - June 11, 2019
Verified Purchase
★★★★★
★★★★★
Easy to install
Easy to install and worked with first pull on weed eater. Will use ereplacement parts again.
Guest - July 9, 2019
Verified Purchase
★★★★★
★★★★★
Nice carburetor
New carburetor for a weed eater that I have been working on for a customer. Bolted right on and fired it up, had to do a little adjusting but no problem, nice product
Guest - July 13, 2019
Verified Purchase
★★★★★
★★★★★
Easy repair and works great!
This carburetor made my weed eater work like new again. Started on 2nd pull. Just make sure you order the gasket also in case old one can't be reused.
Guest - April 16, 2020
Verified Purchase
★★★★★
★★★★★
Perfect
Order was received timely, exactly as we ordered and expected.
Guest - July 29, 2021
Verified Purchase
★★★★★
★★★★★
Great part
Part was new and an exact replacement. Shipping was really fast so repairs could be made without extended delays. Trimmer runs like new again. Great supplier!!
Guest - August 4, 2021
Verified Purchase
★★★★★
★★★★★
Carberatur not a match to original
The original carb. Has an auto choke release. The carb you sent me is a manual choke release. Not what I expected.
Guest - June 6, 2021
Verified Purchase
June 6, 2021
Hello,
Thank you for leaving a review on the Carburetor. We have sent you an email in regards to the order. Hope to hear from you!
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.
Easy
15 - 30 mins
(23 rated repairs)?
< Prev
1
2
3
Next >
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
SST25 Line Trimmer: Would not start. Prior owner left old fuel in the entire fuel system for several years. Entire fuel system was gummed and would not start.
This process looks long but I assure you it is super easy and takes no time at all. If this is your first time taking a fuel system apart take pictures or use a IPB so you do not have to rely on memory for reassembly.
1. First I drained and disposed of all the old fuel.
2. Then I removed the fuel filter fr
... Read moreom the intake hose in the fuel tank with needle nose pliers. Once the fuel filter was removed then I remove the return line fuel assembly pickup (fancy name for little plastic insert) with needle nose pliers.
3. After both the fuel filter and fuel assembly pickup was remove then I removed the gas tank carefully, thus not to tear the fuel lines. The fuel tank is held on with two star screws so you would need the proper star screw driver or ratchet attachment.
4. Next I removed the hoses from the carburetor also careful not to tear the fuel lines. The reason for such care is because I used the old hoses to determine the size of the new hoses. Now for the carburetor.
5. I removed the air filter and air filter cover there are two Allen screws that hold on the carburetor. Using a the proper Allen key I remove both screws. Be careful not to tear any gaskets when removing. Also the throttle cable to attached to the carburetor it is easy to remove just angle the L properly and it slides right out.
Now that the carburetor is removed assess the situation. In my case I took the carburetor apart to see if I could clean it before I ordered a new carburetor but this was beyond cleaning. If you have never taken a carburetor apart proceed with caution and read a different repair guide.
Most of the parts where rusted and gummed and for 25 bucks I simple decided to order a new one. Also since I had the fuel take off I cleaned it and ordered new hoses, fuel filter, and a new fuel tank cap. I only ordered a new cap because the other one was cracked.
6. Once the parts arrived I began by cutting the new fuel hoses. I used the old hoses to determine the size. NOTE: Cut the new pieces a little longer than the old ones because the hardest part of the project is putting the new hoses into the fuel tank. And unless you are really good you will tare up the ends a bit and will need to be cut off. Plus you will need to cut the new ones at an angle so you will need to cut that flat as well.
7. After the cut is made, cut the end of the hoses at a sharp angle thus to be able to put the tip of the hose through the holes int he fuel tank. I recommend using a little lube on the outside of the hoses as well just so they slide easier. In my case I used a little 2-cycle oil because I knew it would not contaminate the line or the gas in the fuel tank. Once the hoses where just barely through the hole I grabbed the end of the hoses with needle nose pliers and pulled the desired length. On the intake hose I cut the end flush and attached the new fuel filter then put it back into the fuel tank. Also cut and attached the return line fuel assembly pickup to the return line then pulled it up to the top of the fuel tank.
8. Before I attached the tank I put the new carburetor on the same way I took it off making sure to attach the throttle cable as I went. When the screws where in line I tightened them down snug. Do not over tighten.
9. Now I attached fuel tank in same manner not to over tighten the screws.
10. Finally I attached the fuel lines to the carburetor filled the fuel tank with good 2 cycle and closes the fuel tank with my new fuel cap. Attached the air filter and air filter cover and we where good to go.
Primed the carburetor, put it full choke, cranked a could of times went into half choke. It fired right up, went to no choke and gave it full throttle and she purred like a kitten. Okay it is a line trimmer she roared like a lion but either way it is working great.
Emptied the gas tank.
Removed the gas lines from the carb.
Removed the gas tank by removing two screws.
Removed throttle cable.
Removed the carb.by removing two screws.
Pulled the old gas lines out of the tank then opened the tank to remove the old filter.
Inserted the new gas lines and fished one out w
... Read moreith my fingers to attach new filter.
Reinstalled gas tank and new carb. Old gasket was still ok.
Reinstalled throttle cable.
Trimmed gas lines and installed to carb.
Replaced old spark plug with new.
Filled tank with new gas.
Adjusted carb high and low needles two turns out.
Unit started almost immediately. Unit running a little rich, however, it was running so well i trimmed the yard!
Read less
Did you find this story helpful?
Thank you for voting!
Carburater wouldn\'t draw gasoline from the tank, I think that the diaphram had a pinhole, so the vacuum wouldn\'t open the valve for the gasoline
As I have done in the past while repairing tools or anything that I am not familiar with. I take plenty of pictures of everything as a take it apart. Then use the pictures to put it back together. It hasn\'t failed me yet. It may take a little longer to do the repair, but so far it\'s done great for me.
Pretty straight forward if you have the proper tools and a mechanical aptitude. Removed fuel lines, air filter and 2 hex bolts that held the defective carb. Replaced with new parts and put back together. Filled the tank with fresh gas
Remove the air filter assembly, then remove the fuel lines and throttle from the old carburetor. Remember where the lines went. Remove the screws securing the carburetor to the trimmer. Remove the old carburetor and slide on the new one and tighten the screws. Install the fuel lines and throttle to the new carburetor and install the air f
... Read moreilter assembly
