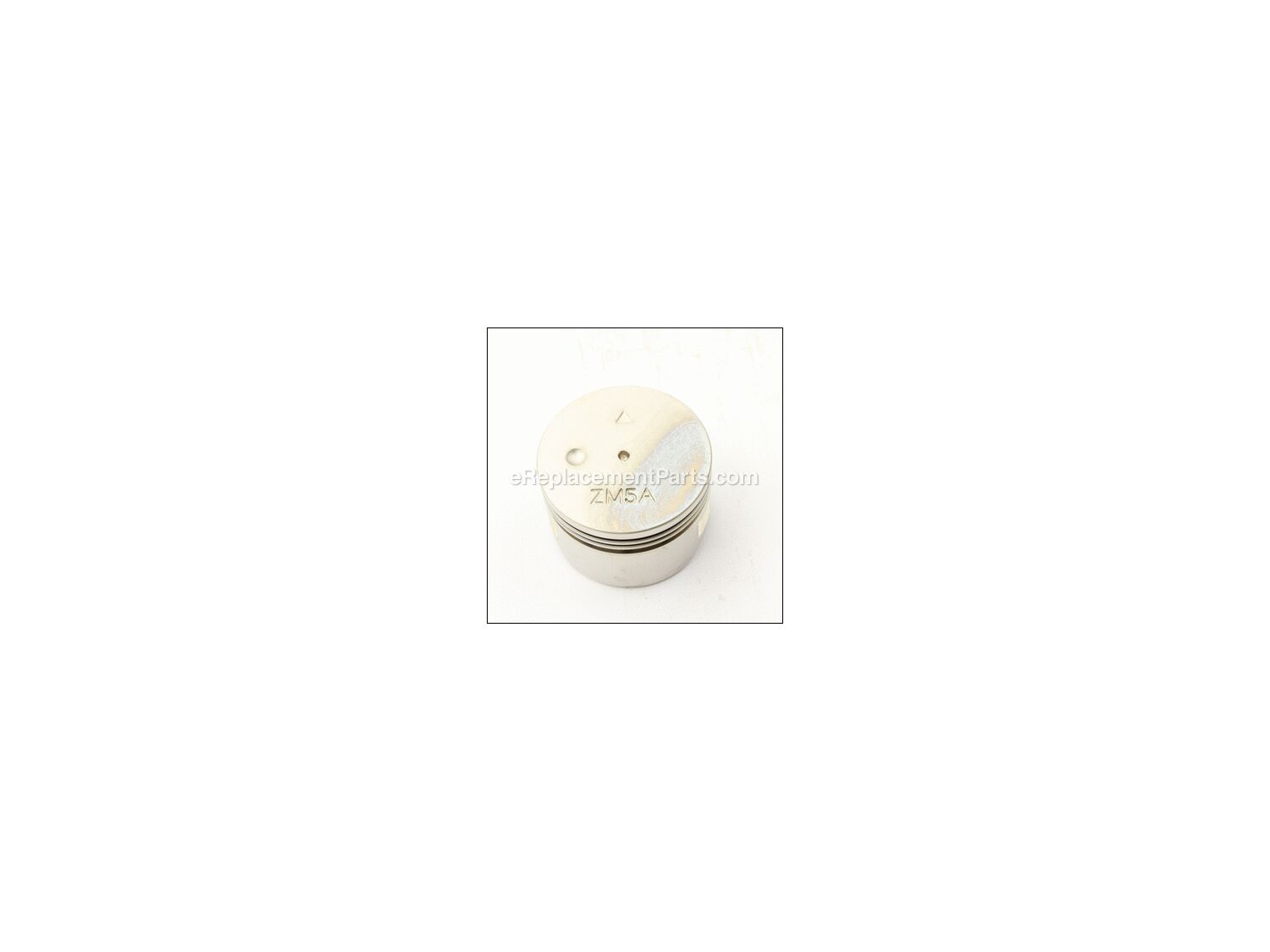

Piston 13101-ZM5-030

Manufactured by:
Honda
ERP Number:
ERP9887660
Part Number:
13101-ZM5-030
Original Equipment Manufacturer ?
$45.46
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

1- 2 hours

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Questions & Answers Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Honda
This part works with the following products:
  • Trimmer
  • Engine

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Honda engine started burning oil and metal dust in oil.

Tim from Graham, North Carolina

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Screw drivers, Socket set, Wrench set
Parts Used:
91214-ZM3-003, 91213-ZM3-003, 15625-ZE1-003, 13111-ZM5-000, 13101-ZM5-030, 13010-ZM5-000, 12312-ZM3-020
1.Disassemble the Honda GX31 engine.
2. Identify worn parts
3. Hone cylinder bore.
4. Replaced piston, rings, piston pin.
5. Replaced oil seals
6. Reassembled engine.
7. Allowed rtv sealant to cure for 24 hours that sealed engine block.
8. Added engine oil and started engine.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP9887660
Manufacturer Part Number: 13101-ZM5-030
Brand Model Number Description
Honda FG100 Tiller - Rototiller
Honda GX31 Engine - Small Engine
Honda HHE31C Edger - Stick Edger
Honda HHT31S Trimmer - Trimmer/Brush Cutter
Honda UMK422 Trimmer - Trimmer / Brushcutter
Honda UMK422K1 Trimmer - Trimmer / Brushcutter
Honda UMK431 Trimmer - Trimmer / Brushcutter
Honda UMK431K1 Trimmer - Trimmer / Brushcutter
Honda WX10 Water Pump - Water Pump
Piston
