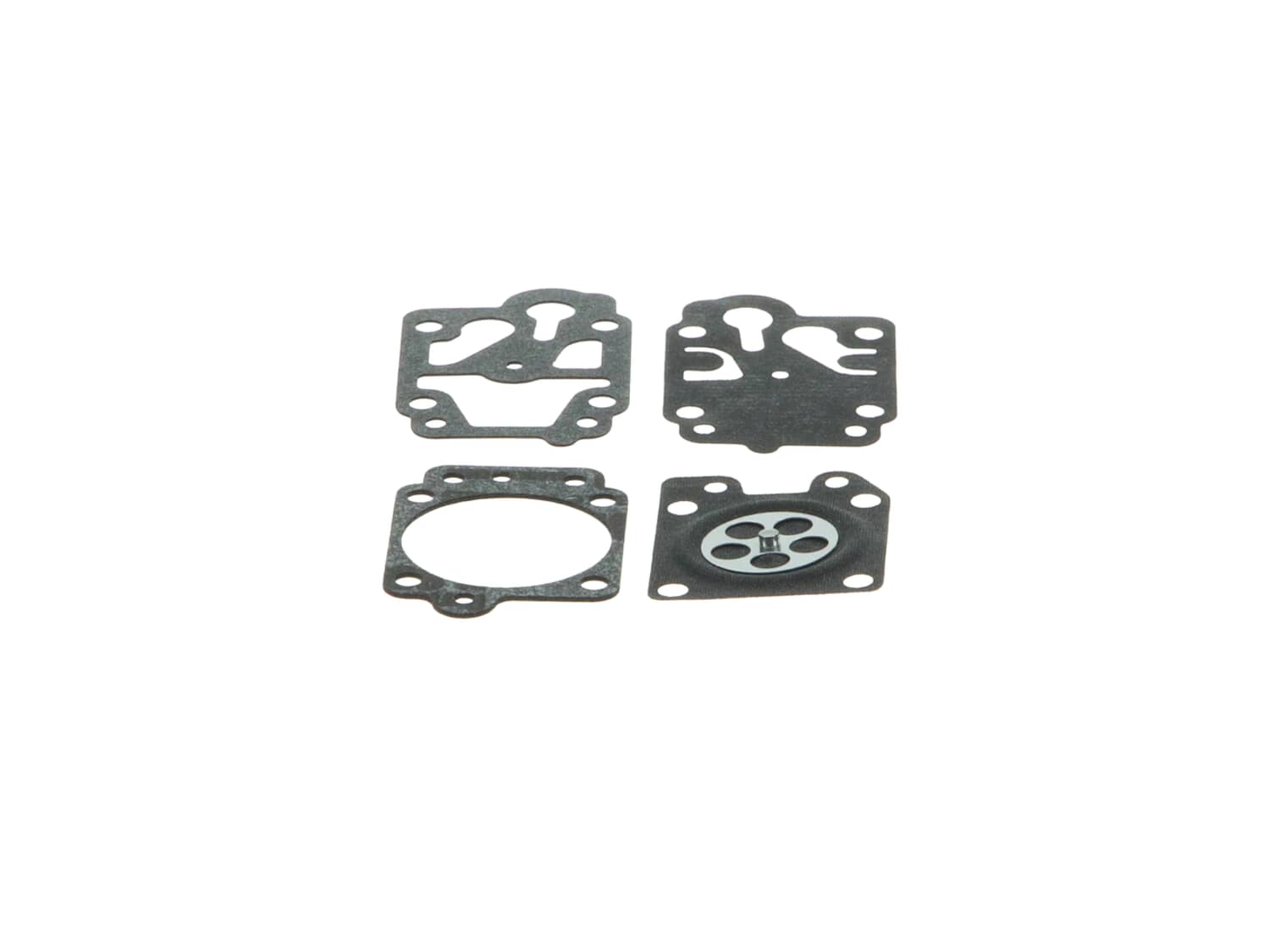

It is a genuine item that is supplied by the original equipment manufacturer for use with Echo handheld lawn and garden equipment. The components are utilized to provide a tight seal between connected pieces, unfortunately, over time the material tends to wear out and it may begin to crack eventually requiring a replacement. This high-quality kit is sold individually, keep in mind it includes all the necessary gaskets and diaphragms to repair your unit. Please make sure to refer to the appropriate diagrams of your model for the correct location and application of these parts.
Troubleshooting
This part works with the following brands:
Echo
This part works with the following products:
Trimmer
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed air filter and housing
Detached carb from engine block
Removed prime bulb and cover from carb
Removed air purge assembly
Replaced diaphragm and gasket
Reassembled
Did you find this story helpful?
Thank you for voting!
Echo brand --Low power, not enough fuel going to cylinder
Remove air cleaner, unhook throttle cable, unscrew throttle cable from bracket, disconnect fuel lines (2), unscrew 2 large screws at air cleaner plate (they hold everything to the motor body). carefully separate carb from the air plate and large screws. Place carb on clean cloth, open packet of parts (Helps to download and print carb blow
... Read more apart pic from parts website). remove 4 smalls screws from bottom of carb, gently separate sections of carb, removing both sets of gaskets/diaphragms. Gently clean with carb cleaner spray. DO NOT touch lever on metering needle as adjustments are tiny movements. Reassemble following picture from website, watching correct placement of the flexible diaphragms, 2 small locator post match hole in parts, diagram will show which sides are up/down, reassemble in reverse order--don\'t over tighten as screws will strip in aluminum body.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8858743
Manufacturer Part Number: 12310157730
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
